Testing of Vacuum Circuit Breaker: Ensuring VCB Performance & Reliability

In modern power systems, the reliability of vacuum circuit breakers (VCBs) is a critical factor for ensuring safe and efficient grid operation. For discerning power industry professionals, engineers, and medium-to-high voltage equipment purchasing agents who prioritize exceptional performance and sustained operational stability, a deep grasp of the core vacuum circuit breaker testing requirements and methodologies is indispensable. This guide is crafted to reflect international industry standards (including prominent frameworks like IEC and ANSI/IEEE), providing a comprehensive overview. It meticulously explains the objectives, approaches, critical values, and interpretation of outcomes within the vacuum circuit breaker testing procedure, thereby illustrating their profound influence on VCB operational efficiency, longevity, and grid safety.

1. International Standard Systems and the Universality of VCB Testing

Globally, the design, manufacturing, and testing of vacuum circuit breakers (VCBs) primarily adhere to two major international standard systems:

IEC (International Electrotechnical Commission) Standards: Widely adopted across most countries and regions worldwide. For medium-voltage (MV) AC circuit breakers (typically ranging from 1kV to 52kV, often classified as high-voltage within IEC standards), IEC 62271-100 is the paramount standard.

ANSI/IEEE (American National Standards Institute / Institute of Electrical and Electronics Engineers) Standards: Predominantly used in the United States and Canadian markets. Relevant standards include ANSI C37.04, ANSI C37.06, and IEEE C37.09.

Despite subtle differences between these standards, the core projects, fundamental principles, and key performance indicators for VCB tests are highly consistent. In the following sections, we will elaborate on these universally applicable vacuum circuit breaker testing methods and criteria, highlighting their engineering significance.

2. Vacuum Circuit Breaker Insulation Resistance Test

Why is this test crucial? Insulation resistance serves as a vital indicator for the electrical health of a vacuum circuit breaker. This test enables the early detection of moisture ingress, aging insulation materials, contamination buildup, or mechanical damage that could lead to insulation breakdown, thereby preventing potential electrical flashovers.

Measurement Objects and States:

Closed Position: Use a 2500V megohmmeter to measure the insulation resistance of the main circuit to ground (or frame).

Open Position: Using a 2500V megohmmeter, individually measure the insulation resistance across the contacts (i.e., the open gap) within each pole’s vacuum interrupter, as well as between each interrupter pole and ground.

Insulating Rods: For insulating rods made of organic materials, similarly measure their insulation resistance to ground using a 2500V megohmmeter.

VCB Control Circuit Insulation:

Coil Insulation: Use a 500V or 1000V megohmmeter to measure the insulation resistance of the trip coil, closing coil, and closing contactor coils (if applicable).

DC Resistance of Coils: Measure the DC resistance of the trip, closing, and closing contactor coils; the measured values should be compared with the factory-provided values.

Typical Requirements:

All insulation resistance values at ambient temperature should not be lower than the minimums specified by relevant international standards or the manufacturer.

Main circuit insulation resistance is typically recommended to be above 2500 MΩ.

Insulation resistance across open contacts is generally recommended to be above 1000 MΩ.

Control circuit insulation resistance is usually recommended to be above 1 MΩ.

The DC resistance of coils should typically not deviate by more than ±5% from the factory values.

3. Vacuum Circuit Breaker Contact Resistance Test

Delving into VCB Contact Performance: The VCB contact resistance test is a core procedure for evaluating the contact integrity of the vacuum circuit breaker’s main circuit. High contact resistance not only leads to localized overheating and increased energy loss but, more critically, it can indicate severe contact erosion, insufficient contact pressure, or loose connections. These issues significantly compromise the VCB’s current-carrying capacity, impair its reliability in interrupting fault currents, and accelerate equipment aging.

Test Method: The measurement is performed using the DC Voltage Drop Method.

Test Current: The DC current injected into the conductive circuit should be no less than 100A. Many industry standards and recommendations advise using 200A or even higher currents (e.g., 600A) to better simulate actual operating conditions and ensure measurement accuracy.

Measurement Points and Safe Operation:

For circuit breakers with parallel main and arcing contacts, their respective contact resistance values should be measured separately.

When connecting, voltage leads should be connected internally to the current leads externally to eliminate the influence of lead contact resistance.

During current ramp-up and measurement, it is strictly prohibited to open current clamps or disconnect the circuit before the current has fully subsided, to prevent arcing and equipment damage.

Typical Requirements:

The test results for contact resistance should comply with the product’s technical specifications. Typically, single-phase contact resistance values should be between 20-100µΩ (micro-ohms), and the difference between three-phase resistance values should not be excessive (e.g., not exceeding 10% of the nominal value).

View Liyond VCB Contacts Solutions

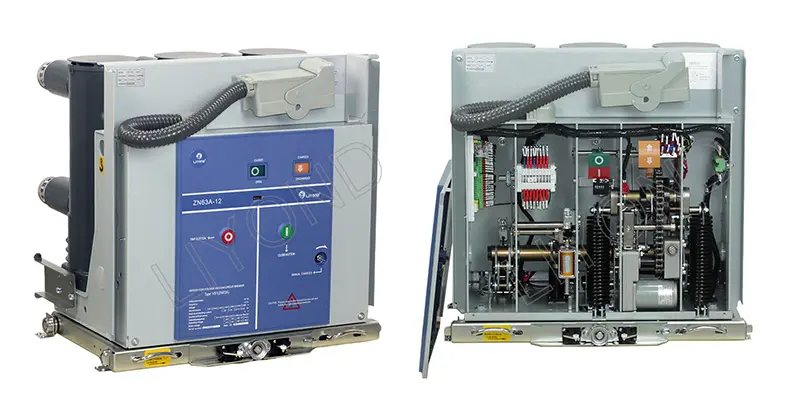

4. Vacuum Circuit Breaker Mechanical Operation Test

The Key to VCB Operational Reliability: The mechanical operation test is paramount for verifying the reliability of a vacuum circuit breaker’s operating mechanism across various control voltage ranges. It ensures that the VCB breaker can reliably open and close even during grid voltage fluctuations or anomalies. This test directly determines the equipment’s ability to respond to control commands at critical moments, thus guaranteeing the continuity of system operation.

Test Objective: To verify the reliability of the opening and closing mechanism under different control voltages.

Control Voltage Range (Operating Voltage Range):

AC Operation Control: The circuit breaker should reliably close and open when the control voltage is between 85% and 110% of the rated voltage.

DC Operation Control:

Closing: The circuit breaker should reliably close when the control voltage is between 80% and 110% of the rated voltage.

Opening / Tripping: The circuit breaker should reliably open when the control voltage is between 65% and 120% of the rated voltage.

VCB Low Voltage Lockout / Anti-Pumping Function: When the operating control voltage falls below 30% of the rated voltage (or the minimum lockout voltage specified by the manufacturer), the circuit breaker should be prevented from opening. This verifies its function to prevent erroneous operations, ensuring effective operation only under stable power supply conditions.

5. Vacuum Circuit Breaker Mechanical Characteristic Test / Timing Test

Core Assessment of VCB Dynamic Performance: Mechanical characteristic tests, particularly the VCB timing test, are crucial for evaluating the dynamic performance of a vacuum circuit breaker’s operating mechanism and the coordination of its contacts. These parameters directly determine the VCB’s arc-extinguishing efficiency, fault current interrupting capability, closing stability, and overall service life. Any deviation can indicate wear, aging of mechanical components, or improper adjustment of the mechanism.

Test Instrument: Measurements are performed using a specialized Circuit Breaker Analyzer / Timing Test Set.
Test Conditions: The test should be conducted at the circuit breaker’s rated operating voltage (or rated hydraulic pressure, if a hydraulic mechanism is present).

Key Measurement Parameters (Typical):

Opening & Closing Time: Measures the time required from command issuance to complete contact separation/closure.

Pole Discrepancy / Simultaneity: Measures the maximum difference in opening or closing times among the three-phase contacts. Opening simultaneity should typically not exceed 2ms, and closing simultaneity should typically not exceed 3ms. Excessive discrepancy can impair the VCB’s arc-extinguishing capability and protective function.

Main-Auxiliary Contact Coordination Time: For VCBs with auxiliary contacts, this measures the coordination time between the main and auxiliary contact actions.

Speed Parameters: Measures the average and instantaneous speeds of the contacts during opening and closing, which directly influences arc-extinguishing performance and mechanical wear.

Closing Bounce Time / Contact Bounce: A vacuum circuit breaker’s contacts may briefly bounce upon closing due to inertia. Excessive closing bounce time (e.g., exceeding 3ms) significantly exacerbates electrical erosion and mechanical shock at the moment of contact closure. This not only shortens the life of the vacuum interrupter but can, in extreme cases, lead to contact welding or failure to interrupt high currents, posing a serious threat to system safety.

Opening Rebound Amplitude: The recoil of contacts after opening due to mechanical inertia. Opening rebound amplitude should typically not exceed 20% of the contact gap. Excessive rebound can lead to secondary contact, affecting insulation and reliability.

Over-travel, Spring Travel, Contact Gap / Stroke: These parameters directly reflect the adjustment status of the operating mechanism and the extent of contact wear.

6. Vacuum Circuit Breaker AC Withstand Voltage Test

The Cornerstone of VCB Insulation Strength Assessment: The AC withstand voltage test verifies the ability of a vacuum circuit breaker’s insulation system to endure power frequency voltages, exposing potential insulation defects. It is a vital method for detecting manufacturing flaws, transportation damage, or insulation degradation during operation, directly impacting the VCB’s reliability under normal operating voltages.

Test States: The test should be performed separately in both the circuit breaker’s Closed Position and Open Position.

Withstand in Closed Position:

Test Object: Primarily checks the insulation strength of the main circuit to ground or between phases.

Test Voltage and Duration: A specified power frequency test voltage is applied, typically for 1 minute, according to the VCB’s rated voltage and relevant international standards (e.g., IEC 62271-100 or ANSI C37 series). For example, for a 10kV VCB, the test voltage might be 42kV; for a 35kV VCB, it might be 85kV.

Withstand in Open Position:

Test Object: Primarily checks the insulation strength across the contacts of the vacuum interrupter, and between each interrupter pole and the housing/ground. This is crucial for verifying adequate vacuum levels and the absence of internal discharges.

Test Voltage: The test voltage across the interrupter contacts must strictly comply with the product’s technical specifications and relevant international standards.

Technical Requirements:

Throughout the AC withstand test, there should be no through-breakdown (Flashover / Breakdown), surface discharge (Flashover / Surface Discharge), or significant partial discharge phenomena. Any breakdown or flashover indicates a serious insulation defect requiring immediate attention. Limitations of Vacuum Degree Judgment: Although the AC withstand test in the open position can reflect the insulation capability of the vacuum interrupter, it does not directly and precisely measure the vacuum degree. For accurate vacuum degree assessment, the test of VCB’s vacuum interrupter bottle is a more direct and effective method.

7. Supplemental VCB Tests

In addition to the core tests outlined above, the following supplementary tests can be conducted to provide a more comprehensive assessment of VCB health, depending on the VCB’s operating environment, historical data, and preventive maintenance requirements:

Vacuum Degree Test: Typically employs the Magnetron Discharge Method or Penning Discharge Method to directly assess the vacuum level inside the vacuum interrupter. A decrease in vacuum is one of the most common causes of VCB failure, making this test highly recommended for VCBs that have been in service for some time.

Partial Discharge Test: Detects the presence of partial discharges within the insulation system, serving as an effective means for early identification of insulation defects. This test is commonly performed by manufacturers or after major overhauls, and can also be utilized for high-end preventive testing.

Operating Energy Measurement: Evaluates the energy input to the operating mechanism, useful for analyzing spring condition, friction, and other mechanical aspects.

Vibration Analysis / Acoustic Detection: By monitoring vibration or acoustic signals during VCB operation, early signs of mechanical faults can be identified.

Conclusion of VCB Testing

Conducting comprehensive and rigorous testing of vacuum circuit breakers is fundamental to ensuring their safe and reliable operation. Adhering to internationally recognized testing procedures (such as IEC 62271-100 and ANSI/IEEE C37 series), combined with advanced testing technologies (like vacuum degree tests and partial discharge tests), allows for a more precise assessment of VCB health. This effectively extends equipment lifespan, reduces failure rates, and thus safeguards the stable operation of global power systems. Regular and scientifically performed tests are at the heart of preventive maintenance and represent a significant investment in reducing operational costs and enhancing power supply reliability.

Medium-voltage (MV) vacuum circuit breakers are increasingly utilized in power systems, and their vacuum circuit breaker working principle and reliability directly impact grid stability. Understanding these testing projects helps to better comprehend the performance requirements and maintenance strategies for vacuum circuit breaker application.

Important Note: All parameters and test methods listed in this article are general industry guidelines. The final acceptance criteria for specific equipment should always be based on the technical documentation, product specifications, and the latest applicable national or international standards provided by its manufacturer. Before conducting any test, it is imperative to consult the detailed operating manual for the relevant equipment and local safety regulations.
