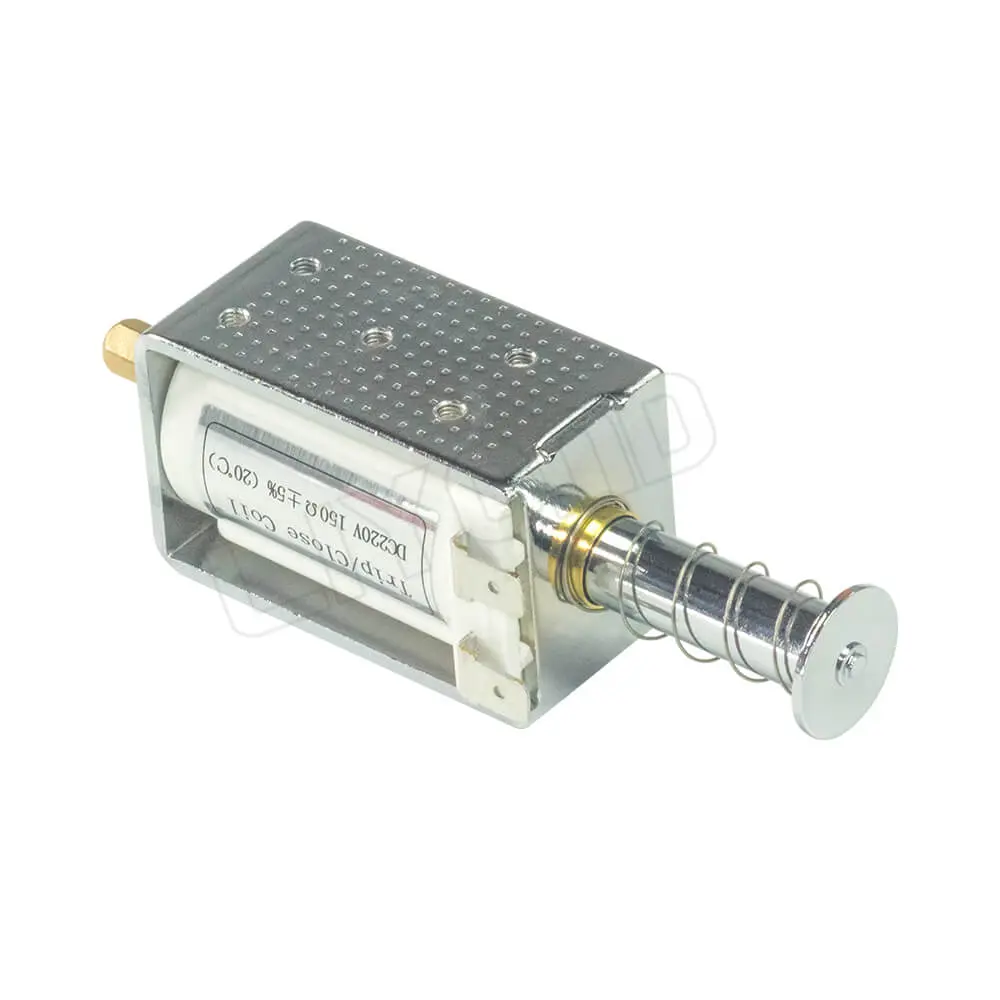

Tripping Coil Push Pull Solenoid Electromagnet For Circuit breaker and Switchgear

This type of solenoid coil mainly apply on circuit breaker(type:ZN63)VS1 and PT handcart as a circuit breaker switch on the control module.
This type of closing coil (points closing electromagnet) is a core-driven, mainly by the coil, moving core, mounting base, the return spring and so on.
The specialty is perfect manufacture, reliable performance, long life, high temperature.

Electrical ProductsElectrical Products

Overviews of Tripping Coil Push Pull Solenoid Electromagnet For Circuit breaker and Switchgear

This type of solenoid coil mainly apply on circuit breaker(type:ZN63)VS1 and PT handcart as a circuit breaker switch on the control module.
This type of closing coil (points closing electromagnet) is a core-driven, mainly by the coil, moving core, mounting base, the return spring and so on.
The specialty is perfect manufacture, reliable performance, long life, high temperature.

Parameters of Tripping Coil Push Pull Solenoid Electromagnet For Circuit breaker and Switchgear

Type Magnetic
Material Hard magnetic material
voltage AC 220V /DC 110V
Application On circuit breaker ZN63(VS1), PT handcart
Mechanical 100000 times

Dimensions of Tripping Coil Push Pull Solenoid Electromagnet For Circuit breaker and Switchgear

trip coil

Voltage DC/AC
24V 30V 48V 110V 220V Produce according to customer’s requirement

Use Conditions of Tripping Coil Push Pull Solenoid Electromagnet For Circuit breaker and Switchgear

1. Applicable to the opening and closing release of indoor high-voltage vacuum circuit breakers such as ZN68, ZN65, and ZN12.
2. Applicable to the opening and closing release of ZN63 (VS1) indoor high-voltage vacuum circuit breakers and over-filling and under-voltage release.
3. Applicable to the opening, closing and over-current release of CT19 spring mechanism.
4. Applicable to CTG1 and CJGI type mechanisms.
Note: Parameters can be specified for customization.

About us:

We are specialty on providing medium voltage and high voltage circuit breaker and switchgear components, such as 12KV, 24 KV, 36KV and 40.5KV embedded cylinder,insulated operating rod, auxiliary circuit socket, counter, circuit breaker board, circuit breaker panel, solenoid coil and so on. These components apply on 630A, 1250A, 2500A, 3150A and 4000A VS1 (ZN85-40.5) circuit breaker and KYN28A-12 and KYN61 high voltage switchgear.
