Instrument Transformer

Why We Need Instrument Transformer Produtcts

In modern power systems, instrumentation transformers are the critical bridge connecting high-voltage primary circuits to low-voltage secondary devices. Their core function is to precisely convert high voltage or large currents into proportional, standardized low-voltage and low-current signals, serving two main purposes:

Ensuring Safety: High voltage and large currents in power systems pose a significant threat to equipment and personnel. Instrument transformers produtcts isolate these dangerous signals, ensuring that measuring instruments, meters, and relay protection devices can be safely and reliably connected. Voltage transformers step down high voltage to a standard level, while current transformers reduce large currents, together providing a solid protective barrier for operators and secondary equipment.

Enabling Precise Measurement and Control: Without instrument transformers, energy metering, grid monitoring, and fault diagnosis would be impossible. The precise signals they provide allow for real-time monitoring and accurate metering of the power system’s operational status, laying the foundation for stable and efficient grid operation and dispatch.

Whether for daily energy metering or for rapid protection in the event of a system fault, the use of instrument transformer is the cornerstone of a reliable and stable power system.

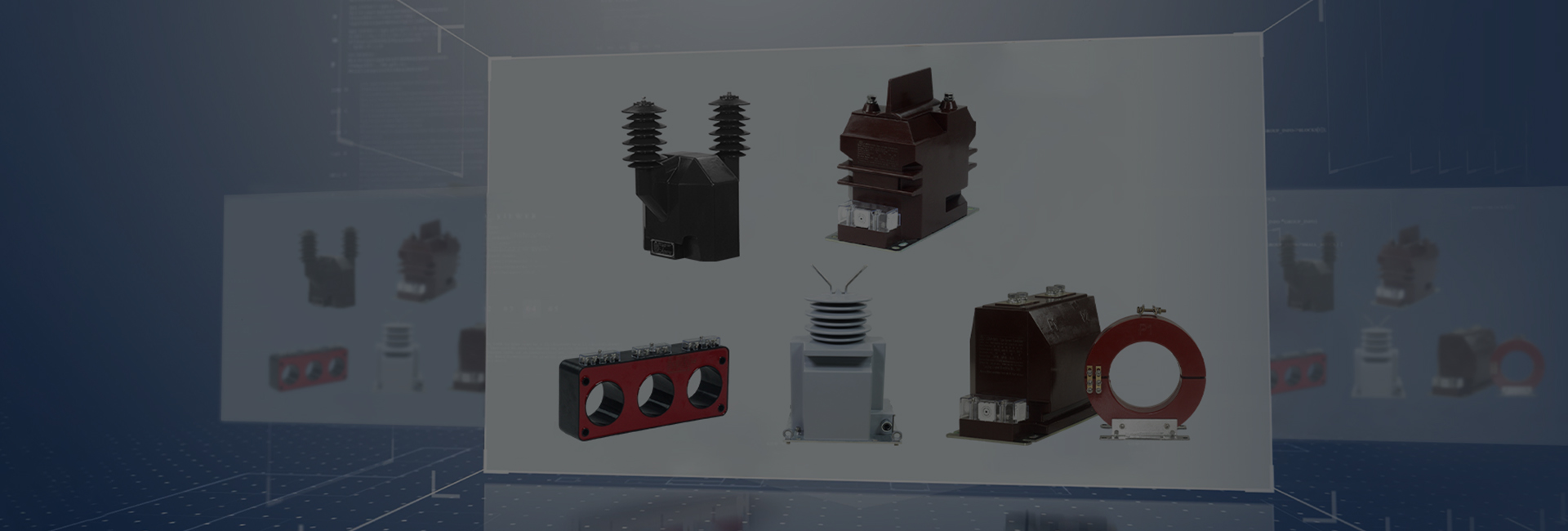

Explore Liyond Instrument Transformer Product Line by Key Features

As a leading instrument transformer manufacturer, our comprehensive MV and HV instrument transformer product line offers a wide range of solutions for various environments and applications. We provide the following main product series, categorized by installation environment and voltage level:

By Installation Environment: We offer both indoor and outdoor instrument transformer types. Indoor units are designed for compact installation in switchgear and substations, while outdoor units feature special insulation and moisture-proof designs to withstand harsh natural environments, making them ideal for outdoor substations.

By Voltage Level: Our products cover a wide range of voltage levels from low voltage, medium voltage and high voltage instrument transformers, ensuring that you can find the most suitable transformer solution for applications ranging from industrial distribution to large-scale transmission and substation projects.

How to Choose the Right Instrument Transformer

In order to find the most suitable model from a wide range of products, the following key factors are typically considered:
Application Scenarios: The specific instrument transformer application should be defined first. For example:

Commercial Energy Metering: Requires extremely high accuracy to ensure precise billing.
Power Plants and Substations: Used for relay protection, demanding high reliability and excellent dynamic performance for quick response during faults.
Industrial Distribution: Used for monitoring and control, requiring stable performance and easy maintenance.

Our product line is optimized for different instrument transformer application scenarios. As a professional instrument transformers solutions provider, we provide professional solutions for both the stringent demands of high-accuracy metering and the reliability needs of critical system protection.
Voltage and Current Parameters: The instrument transformer is selected based on the rated voltage, rated current of the power system, and the parameters of the secondary devices:

Rated Voltage Ratio / Current Ratio: This is the most fundamental parameter of an instrument transformer, which determines the conversion ratio of voltage or current between its primary and secondary sides. For instance, a product might have a voltage ratio of 10000V/100V or a current ratio of 400A/5A, ensuring secondary devices receive standardized and safe signals.
Rated Secondary Output (VA): Refers to the maximum apparent power that the instrument transformer’s secondary winding can supply to the load under rated operating conditions. This parameter is crucial as it determines the number and type of meters, relays, or other protective devices the transformer can power.

Installation Environment: The appropriate ingress protection (IP) rating is selected based on whether the installation location is indoors or outdoors. For example, outdoor MV instrument transformers must have superior weather resistance, moisture resistance, and anti-corrosion capabilities to ensure long-term stable operation in harsh climatic conditions.
Structural Type: The physical structure of the instrument transformer determines its installation method and space compatibility. For example, in a compact switchgear cabinet, a through-type instrument transformer is an ideal choice due to its unique installation method and high space utilization. In contrast, for independent installation or as a supporting component, a post-type instrument transformer is more suitable. Choosing the correct structural type simplifies the installation process and ensures safe and reliable equipment operation. You can also refer to the instrument transformer diagram for installation guides.

The advantages of instrument transformer are clear, and our extensive product line offers the ideal solution. If you require more professional assistance, please do not hesitate to contact our sales team. We will be happy to provide you with customized technical support.
