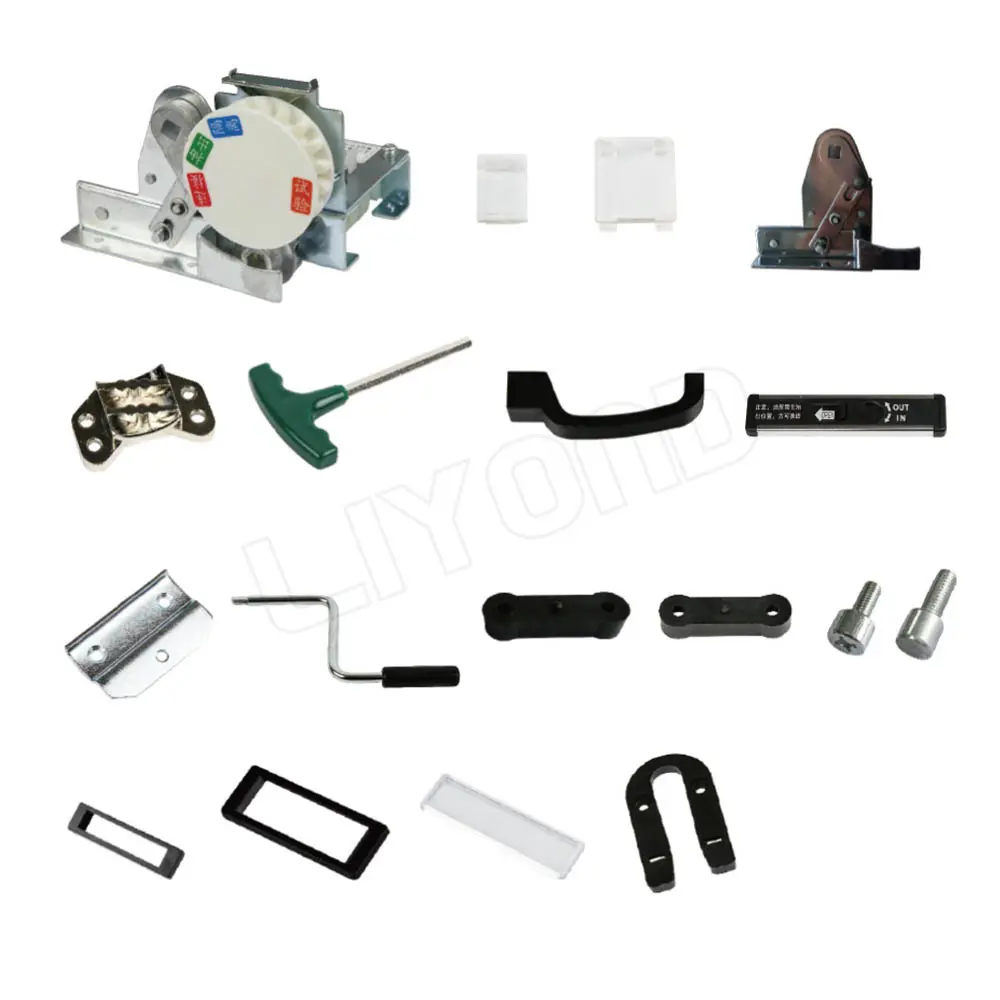

CXJG-8 High-Strength Drawer Operating Mechanism for Switchgear Units

The CXJG-8 operating mechanism is designed specifically for switchgear drawer units that require greater operational force. Constructed with a dual-head screw mechanism made from high-strength, wear-resistant engineering plastic, it reduces the required operating force by half compared to standard mechanisms.

Featuring clear text indicators for “Connected,” “Test,” and “Disconnected” positions along with audible feedback, this mechanism enhances drawer positioning visibility and safety. The operating mechanism also integrates an independent ON/OFF switch at both test and working positions for electric control versions, providing flexible and precise control.

A 24mm travel from the test to the connected position ensures stable movement, and optional guide rails help reduce panel deformation and insertion/extraction resistance.

Get A Quote

CXJG-8 High-Strength Drawer Operating Mechanism for Switchgear Units

Electrical Products

Features
Application

Key Features of CXJG-8 Drawer Operating Mechanism

Dual-head screw design minimizes operating effort
Durable engineering plastic construction
Clear 3-position display with audible indicators
Integrated ON/OFF microswitches at key positions
24mm precision travel from test to connection
Optional guide rails enhance stability and accuracy
Ideal for medium and low voltage switchgear drawers
Supports locking and safety interlocking functions

Operating Positions

Disconnected Position:
Drawer can be pushed in or pulled out. Indicator shows “Disconnected”. This is the starting position before rotation.
Test Position:
Rotate clockwise from disconnected to test position. The drawer moves forward; indicator shows “Test”. Microswitch engages, secondary circuit connected. Drawer is locked in place.
Connected Position:
Rotate clockwise from test to connected. Indicator shows “Connected”. Microswitch disengages, both primary and secondary circuits are live. Drawer and mechanism are fully locked.
