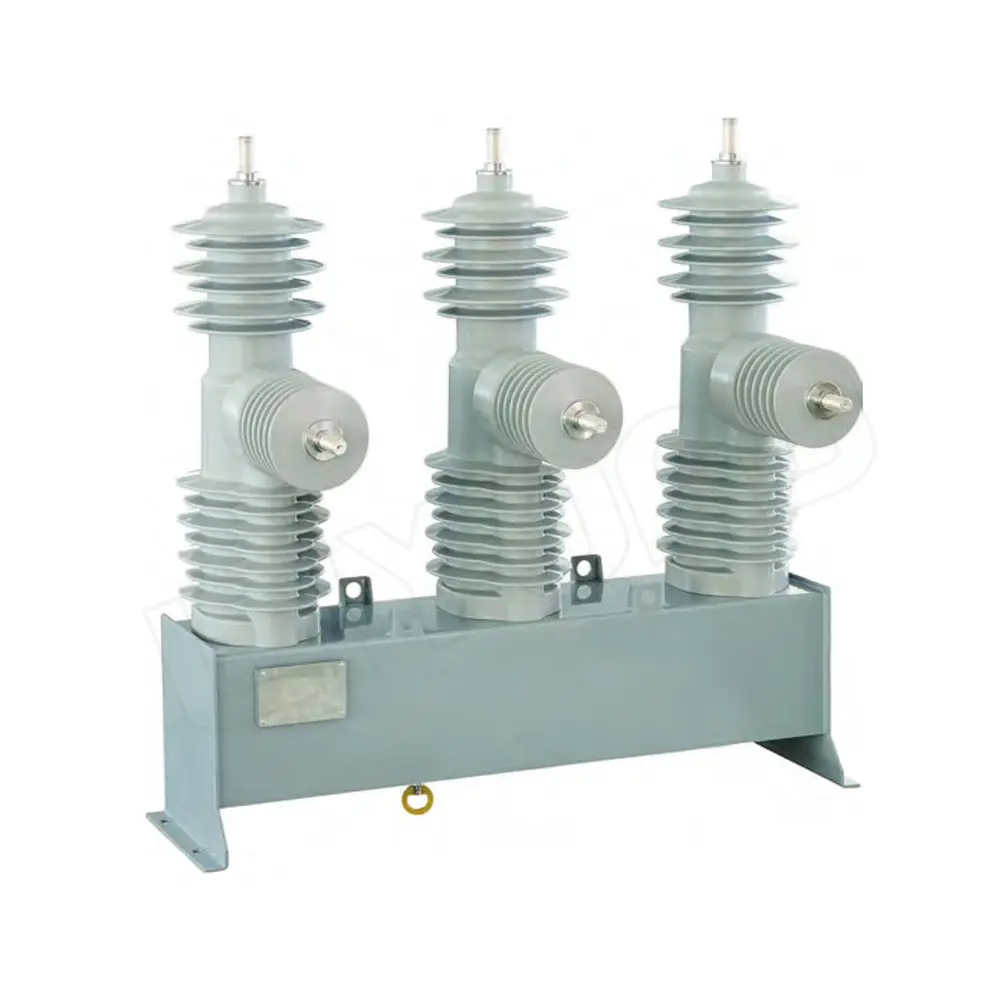

15kV Outdoor Pole Mounted Circuit Breaker Automatic Recloser

The LYVZ15 15kV pole mounted recloser is engineered for overhead line protection and substation automation. It features a magnetic actuator ganged across all three phases, enabling synchronized tripping and closing. The interrupters are housed in a one-piece epoxy resin body with high hydrophobic performance, ensuring top-level insulation and reliability in all weather conditions.

Get A Quote

15kV Outdoor Pole Mounted Circuit Breaker Automatic Recloser

Electrical Products

Features
Technical Parameters
Dimension

Features of 15kV Pole-Mounted Auto Recloser

A rugged stainless steel tank with powder coating protects the internal mechanism, while an external mechanical indicator provides instant status visibility (red = closed, green = open). Operators can manually open the recloser using a hot stick and pull-ring mechanism, ensuring safety during maintenance.

Paired with the advanced BC300/BC500 controller, the recloser supports remote protection, SCADA integration, reclosing cycles, and fault logging.

Features
1.Single magnetic actuator – precise and simultaneous 3-phase operation

2. One-piece epoxy resin insulation – high dielectric strength and hydrophobic performance

3.Rugged outdoor-ready tank – powder-coated stainless steel for corrosion resistance

4.Clear mechanical status pointer – red/green visibility for easy operation check

5.Remote control & protection logic – supports up to 4 reclose cycles with customizable protection

6.Manual operation-ready – safe disconnection via hot stick and yellow pull-ring

7.SCADA integration – remote diagnostics, control, and protection settings via RS485/RS232

Technical Parameters of 15kV Pole-Mounted Auto Recloser

Item	LYVZ15-630-12-N	LYVZ15-800-12-N	LYVZ15-630-16-N	LYVZ15-800-16-N
Rated continuous current(Ir/A)	630	800	630	800
Rated short-circuit making current(Tk/s)	3	3	3	3
Rated duration of short-circuit (Isc/kA)	12.5	12.5	16	16
Rated short-circuit breaking current (Ima/kA)	31.5	31.5	40	40
Rated lightning impulse withstand voltage (Up/kV)	110	110	110	110
Rated short-duration P.F. withstand voltage (Ud/kV)	50	50	50	50
Impedance μΩ between (μΩ)	60	60	60	60
Creepage distance phase-to-earth (mm)	960	960	960	960
Clearance phase-to-phase(mm)	320	320	320	320
Minimum clearance, phase-to-earth (mm)	270	270	270	270
Weight (kg)	130	130	130	130
Line charging current (A)	2	2	2	2
Cable charging current (A)	10	10	10	10
Max. interrupting time/max closing(ms)	40/60	40/60	40/60	40/60
