Side Mount VSG-C Indoor Spring Operating Mechanism With Panel

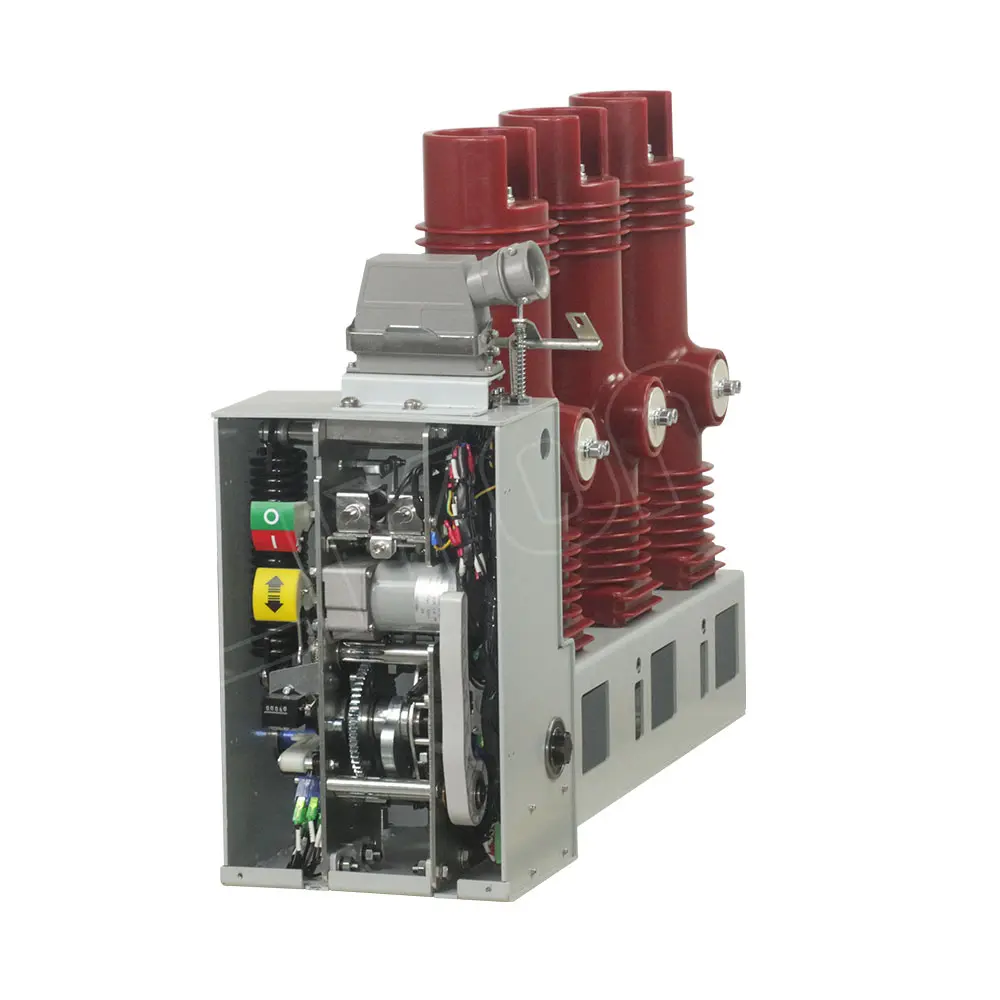

Features of Side Mount VSG-C Indoor Spring Operating Mechanism With Panel

The VSG mechanism uses a cam (in the core module of the mechanism) to drive the spindle directly (in the frame spindle module) to reduce the transmission link and improve the transmission efficiency (no hinge connection). Reduce the energy input of the product and increase the service life of the product. Install the main circuit module, that is, complete the basic configuration of the vacuum circuit breaker. Then install the chassis car module, the contact arm, the contact, and the insulating sleeve to complete the configuration of the hand-cranked circuit breaker.

Applies to rated voltage 12kV/24kV, frequency 50Hz three-phase power system, Electrical protection and control as the use of vacuum circuit breaker as a result of the special advantages, in particular the need for frequent operation under the rated current or short- circuit current breaking many places.
This side installation indoor high voltage vacuum circuit breaker using fixed installation, the main switchboard for the fixed, the circuit breaker can be used alone, but also for the ring network power supply, box- type variable, or a variety of non-standard power supply system.

Dimensions of Side Mount VSG-C Indoor Spring Operating Mechanism With Panel
