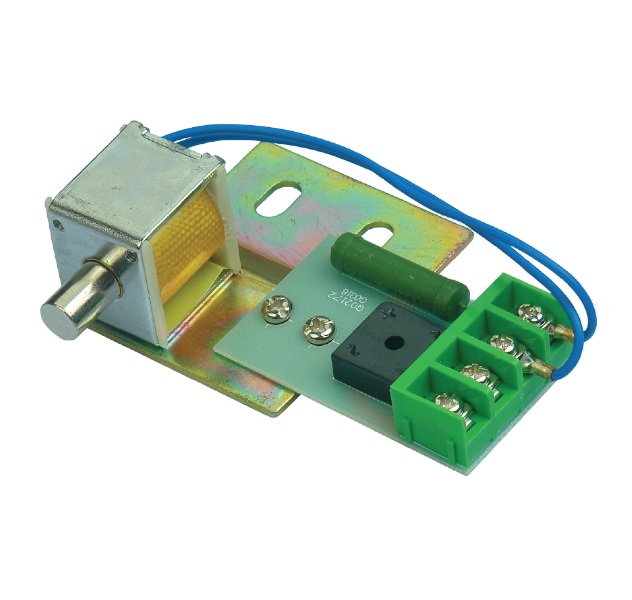

LYD102 Magnet Electromagnet For Switchgear
Electromagnet used for switch equipment operation mechanism, as the “locking” purposes, to prevent the emergence of false action. Electromagnet armature in the distal end of the journey, must act as the working voltage is equal to or greater than 65% the rated voltage, armature sucking back locking and releasing. The electromagnet can be continuously energized to work.
Electrical ProductsSpecification of LYD102 magnet electromagnet
1.Model:AC/DC220V Magnet electromagnet
2.Low energy consumption
3. Long service life, low noise
4. Small volume, light weight
5. Low operating power, fast action
6.ISO9001:2000,CE certificate
Description:
1.Latching electromagnet is widely used for controlling high voltage equipment, for example, circuit breaker and high voltage switchgear
2.Latching electromagnet keep solenoid, keep electromagnet, low energy consumption
3.Rated voltage:AC/DC220V
4.Usage: FMNS low voltage drawout switchgear accessories
LYD102 Magnet electromagnet details
| ITEM | PARAMETER |
| Rated voltage | 220, 110V，DC |
| auxiliary contacts | current≤3A |
| current | 6A |
| Working stroke | 7mm |
| Action | must act as the working voltage is equal to or greater than 65% the rated voltage |
| Service life | 50000 times |
| Insulation resistance | >100MΩ |
| High pressure | 2.5KV，DC |
| Type | Bending plate / straight plate |
| Material: | Hard magnetic material |
| Weight | 50-100g |
Environmental Working Conditions:
1 Environment temperature:-5℃–40℃, daily mean no higher than 35℃
2 Environment humidity: not exceed 50% at 40℃, lower temperature allows higher relative humidity(up to 90% when ambient temperature is at 20℃)
3 Altitude: lower than 2000m
4 Earthquake proof degree: earthquake intensity no more than 7 degrees
5 Pretection degree:IP30, IP41
