Home/Load Break Switch/12kV Indoor Load Break Switch/FN7-12 KV Series Indoor H.V. Load Breaking Switch With Fuse FN7-12 KV Series Indoor H.V. Load Breaking Switch With Fuse
FN7-12 AC high-voltage load switch is a new type of gas-producing indoor high-voltage load switch, suitable for AC 50/60HZ, rated voltage 12kV, three-phase AC power system, as the breaking load current and for closing short-circuit current.
FN7-12R series high-voltage load and fuse combination appliances are based on FN7-12 series high-voltage load switch, adding side operating mechanism, making the installation more simple and convenient, and can meet the different requirements of users.

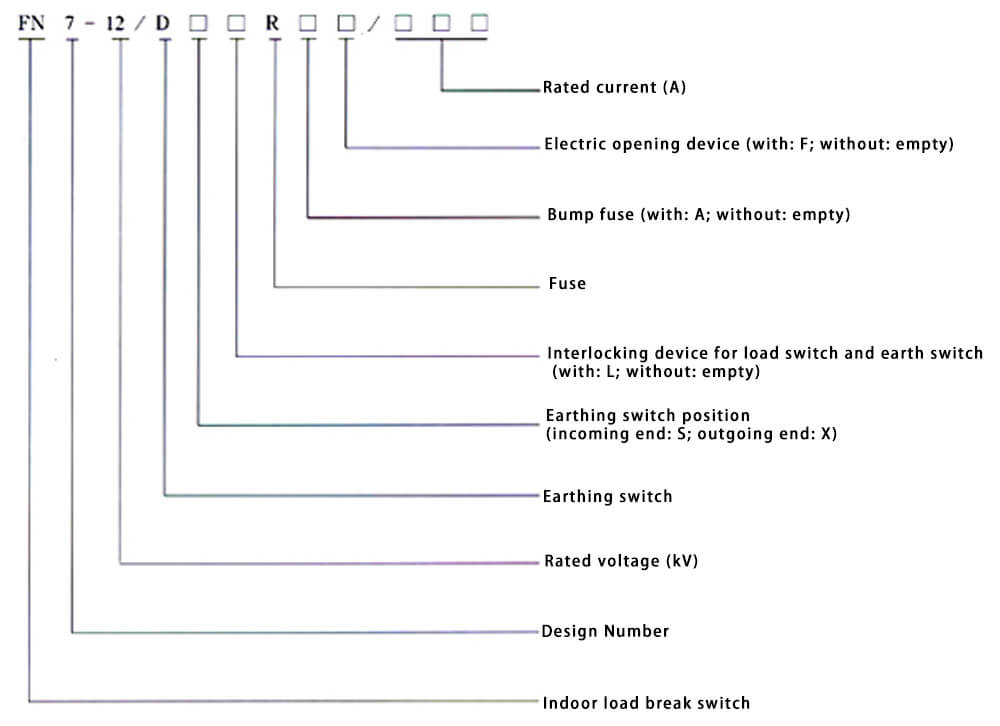

Electrical ProductsModel Meaning of FN7-12 KV Series Indoor H.V. Load Breaking Switch
Use Conditions of FN7-12 KV Series Indoor H.V. Load Breaking Switch
1. Ambient air temperature not higher than +40°C not lower than -25°C.
2. Altitude not more than 1000m above sea level
3. Relative humidity, daily average not more than 95%, monthly average not more than 90%.
4. The surrounding air should be free from obvious pollution such as corrosive, combustible gases and water vapour bodies.
5. No regular strenuous exercise.
Technical Parameters of FN7-12 KV Series Indoor H.V. Load Breaking Switch
FN7-12 Load break switch with fuse main technical parameter
| Classification | Full type | DS Earth switch at the wire-in end | DX Earth switch at the wire-out end | L Interlock device | R Fuse box | RA String fuse box | F Off device by motor |
| Without tripper | FN7-12 | – | – | – | – | – | – |
| FN7-12DSL | △ | – | △ | – | – | – | |
| FN7-12DXL | – | △ | △ | – | – | – | |
| FN7-12R | – | – | – | △ | – | – | |
| FN7-12DSLR | △ | – | △ | △ | – | – | |
| FN7-12DXLR | – | △ | △ | △ | – | – | |
| With striking tipper | FN7- 12RAF | – | – | – | – | △ | △ |
| FN7-12DSLRAF | △ | – | △ | – | △ | △ | |
| FN7-12DXLRAF | – | △ | △ | – | △ | △ |
Specified parameter
| Rated voltage | Max.voltage | Rated current | Power frequency withstand voltage | 4S heat-stabling current(value) | Machine stabling current(peak) | Short-circuit corntrlling current | Rated switch-off current | Rated transfer current |
| 12 | 12 | 400 | 42/48 | 12.5 | 31.5 | 31.5 | 400 | 1000 |
| 630 | 75/85 | 20 | 50 | 50 | 630 | 1000 |
Rated parameter of fuse box
| Model | Rated voltage(kV) | Rated current(A) | Fuse body rated current |
| SDLA*J | 12 | 40 | 6.3, 10, 16, 20, 31.5, 40 |
| SFLA*J | 12 | 100 | 50, 63, 71, 80, 100 |
| SKLA*J | 12 | 125 | 125 |

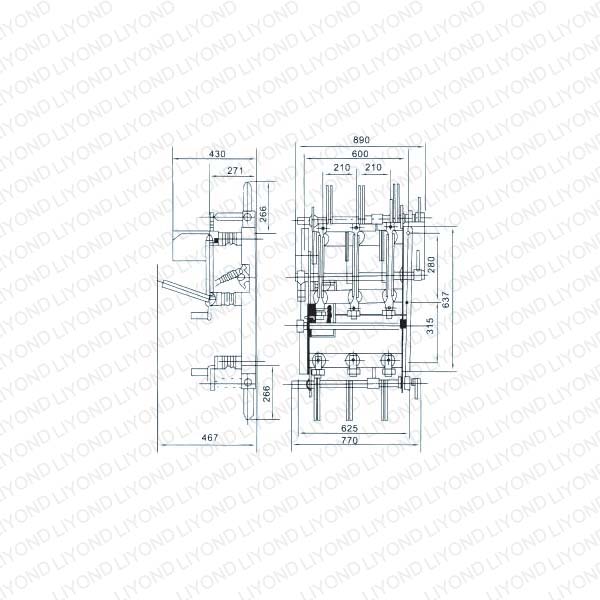

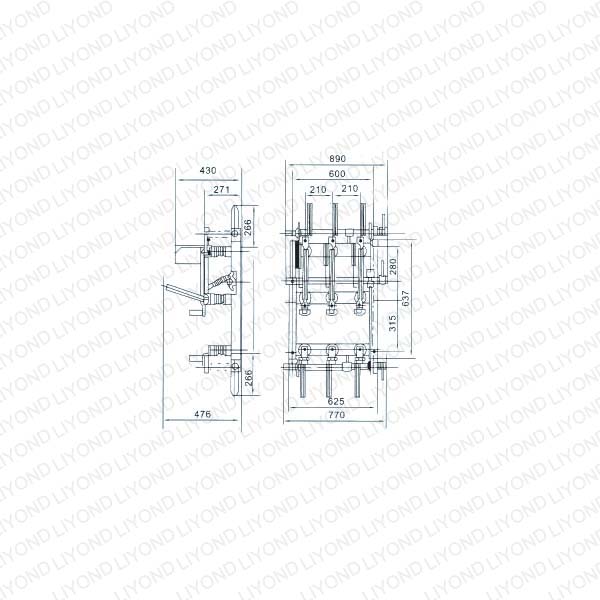

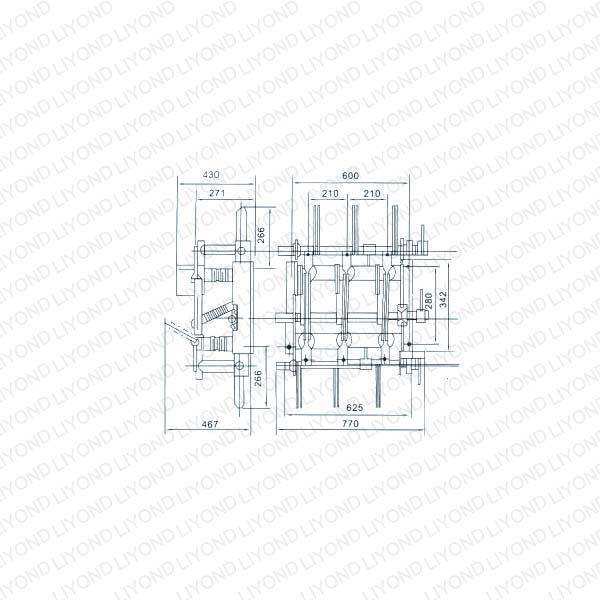

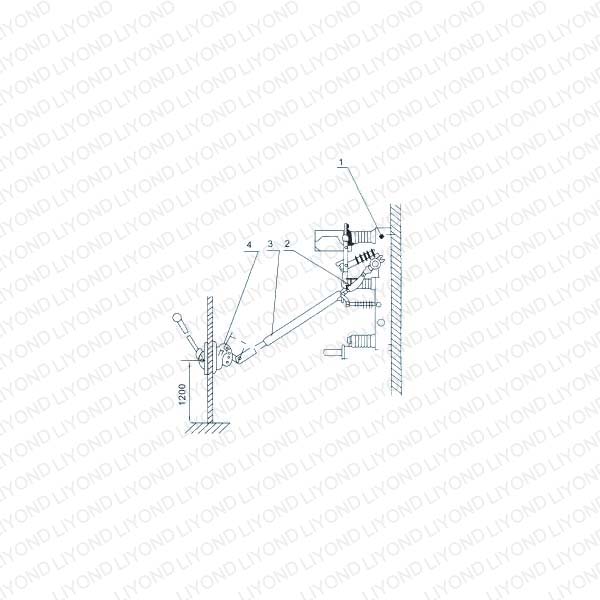

Dimensions of FN7-12 KV Series Indoor H.V. Load Breaking Switch
