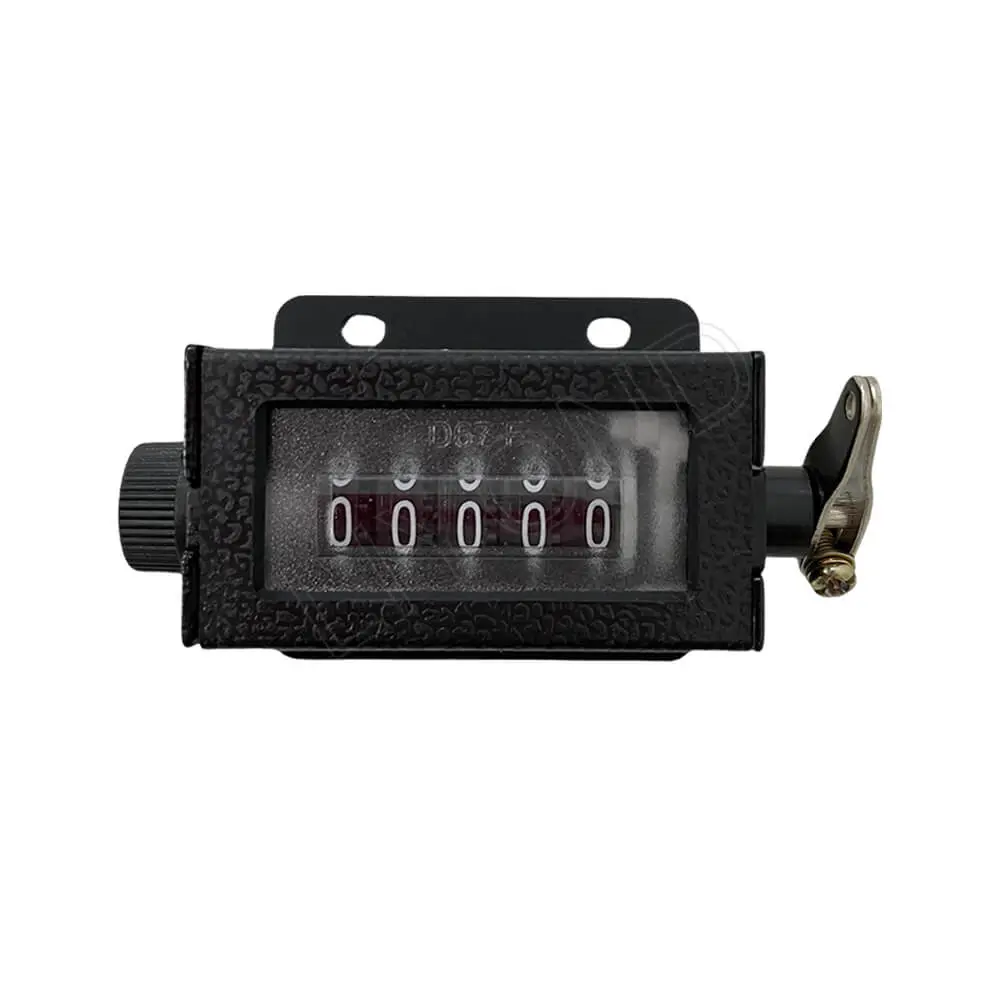

D67-F Manual Pull type 5-digit Mechanical Counter
-
D67-F Manual Pull type 5-digit Mechanical Counter product description
The D67-F five-digit mechanical counter is a mechanical or electromechanical device used for counting events, operations, or actions. It typically consists of five digits that increment sequentially, allowing it to count up to 99,999. These counters are mainly used in textile, machinery, mining, printing, large-scale stamping, conveying and packaging and other industries.
1. Counting range: 0-99999
2. Counting speed: 200 times/min
3. Transmission ratio: 1:1
4. Zero return method: Rotary
5. Overall dimensions: 80x 46x 34(mm)
6. Installation dimensions: 38 x 30(mm)How to use:
1.Please reset to zero when using for the first time
2.Count one number for each rotation of the shaft, and increase it by rotating clockwise
3.Turn the handle clockwise once, and the displayed numbers are all “0”. Do not reset to zero when rotating -
D67-F five-digit mechanical counter dimensions for reference
