Medium Voltage Disconnect Switch VS Circuit Breaker: Understanding Their Crucial Roles in Electrical Systems

For those involved in the design, installation, maintenance, or operation of medium and high voltage electrical systems, a clear understanding of disconnect switches and circuit breakers is essential. While both are switching devices, their functions and limitations differ significantly. This article aims to demystify these crucial components, clearly outlining their operational principles and the specific scenarios where each plays an indispensable role in maintaining system integrity and safety at elevated voltage levels.

Define Medium Voltage Disconnect Switches

Medium voltage disconnect switches are specialized switching devices used in electrical systems operating in the kilovolt range. Their key function is to provide a tangible and dependable means of isolating sections of the electrical system. This isolation is vital for safely performing maintenance, repairs, or modifications. These switches are designed to be operated only when there is no current flowing, ensuring a secure and visible separation of conductors. Their robust construction is suited for the demands of medium voltage applications, prioritizing personnel safety through positive disconnection.
This visible break, often achieved through a robust, hinged mechanism, is paramount for safety, especially at higher voltages where the potential for harm is significantly increased. These switches are built to withstand the stresses and environmental conditions common in substations and transmission lines.
It is crucial to understand that these disconnect switches are strictly designed for operation under no-load conditions only. Attempting to interrupt current flow with them can lead to severe and dangerous arcing, resulting in equipment damage and life-threatening hazards. Therefore, the circuit must always be de-energized by a properly rated circuit breaker before a disconnect switch is operated, often with interlocking mechanisms in place to enforce this safety protocol.
The physical air gap provided by an open disconnect switch offers absolute certainty of isolation, a non-negotiable safety requirement for personnel working on or near high-energy electrical equipment.

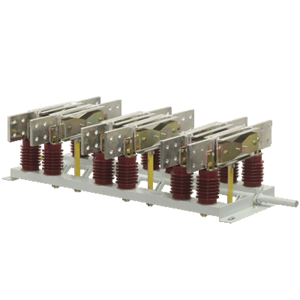

indoor disconnect switch

Define Medium Voltage Circuit Breakers

Medium voltage circuit breakers, particularly vacuum circuit breakers, are vital protective and control components in electrical systems operating between roughly 1kV and 35kV. Liyond supplies indoor vacuum circuit breaker and outdoor circuit breaker, mainly including 12kV VCB, 24kV VCB, and 35kV VCB. Their core function is the automatic and rapid interruption of fault currents, such as overloads and short circuits. This swift action is crucial for safeguarding valuable equipment like transformers, generators, and distribution lines, minimizing damage and preventing electrical hazards.
These sophisticated devices, with circuit breaker technology being a prominent type, employ advanced arc-quenching methods. Vacuum circuit breakers utilize a vacuum interrupter to effectively extinguish the electrical arc generated during high-current interruption. Other technologies include SF6 gas and air blast methods. A key specification is their interrupting rating, which denotes the maximum fault current they can safely handle.
Beyond protection, medium voltage circuit breakers facilitate manual switching of circuits under normal load conditions, providing operational flexibility. Their reliability and fast response times are paramount for maintaining system stability and minimizing downtime in industrial facilities, substations, and commercial installations. Proper selection and application of these robust devices are fundamental to ensuring a safe, dependable, and continuous power supply.

12kV VCB

Key Differences Between Medium Voltage Disconnect Switch and Circuit Breaker

Medium voltage disconnect switches and circuit breakers are both crucial switchgear components in electrical systems, but they serve distinctly different primary functions.

Function: Disconnect Switch VS Circuit Breaker

Disconnect Switch: Primarily provides a visible and reliable means of isolating sections of the electrical system for maintenance, repair, or operational flexibility, ensuring a tangible safety gap.
Circuit Breaker: Primarily provides automatic protection to the electrical system by interrupting fault currents (overloads, short circuits) to prevent damage to equipment and hazards. It can also be used for manual switching.

Interrupting Capability: Disconnect Switch VS Circuit Breaker

Disconnect Switch: Not designed to interrupt load or fault current. Attempting to do so can cause severe and dangerous arcing. It must only be operated when the circuit is de-energized.
Circuit Breaker: Designed to interrupt both load current and fault current safely. It has built-in arc-quenching mechanisms to handle the high energy involved.

Operation: Disconnect Switch VS Circuit Breaker

Disconnect Switch: Manually operated, although some may have motor operators for remote actuation. It does not trip automatically.
Circuit Breaker: Can be operated manually or automatically trips open when it detects an overcurrent or short circuit.

Safety Feature: Disconnect Switch VS Circuit Breaker

Disconnect Switch: Provides a visible break, offering a high degree of confidence that the isolated equipment is de-energized for safe work. Interlocks are often used to prevent operation under load.
Circuit Breaker: Provides automatic tripping, quickly disconnecting the circuit under fault conditions, preventing damage and hazards.

In the realm of medium and high voltage electrical systems, the differences between disconnect switches and circuit breakers is critical for both operational safety and equipment protection. MV/HV disconnect switches provide the essential function of visible isolation for safe maintenance procedures, while MV/HV circuit breakers are indispensable for automatic fault current interruption, safeguarding valuable assets and the integrity of the power grid. Understanding their distinct roles and the crucial coordination between these devices is fundamental for the safe and reliable management of high-power electrical infrastructure.

Liyond is a trusted supplier of both high-quality medium and high voltage disconnect switches and vacuum circuit breakers. We offer a comprehensive range of these electrical products, engineered for reliability and safety in demanding applications. You are welcome to explore our product offerings to find the ideal solutions for your specific system requirements.
