Semiconductor Heater 15W-150W PTC Aluminium Heaters

The PTC Semiconductor Heater (15W-150W) is designed for efficient heating and dehumidification within control cabinets and electrical enclosures. Utilizing advanced PTC heating elements and housed in a durable aluminum alloy casing, this heater is ideal for preventing moisture accumulation and ensuring optimal operating conditions for sensitive electronic components.

Get A Quote

Semiconductor Heater 15W-150W PTC Aluminium Heaters

Electrical Products

Features
Technical Parameters

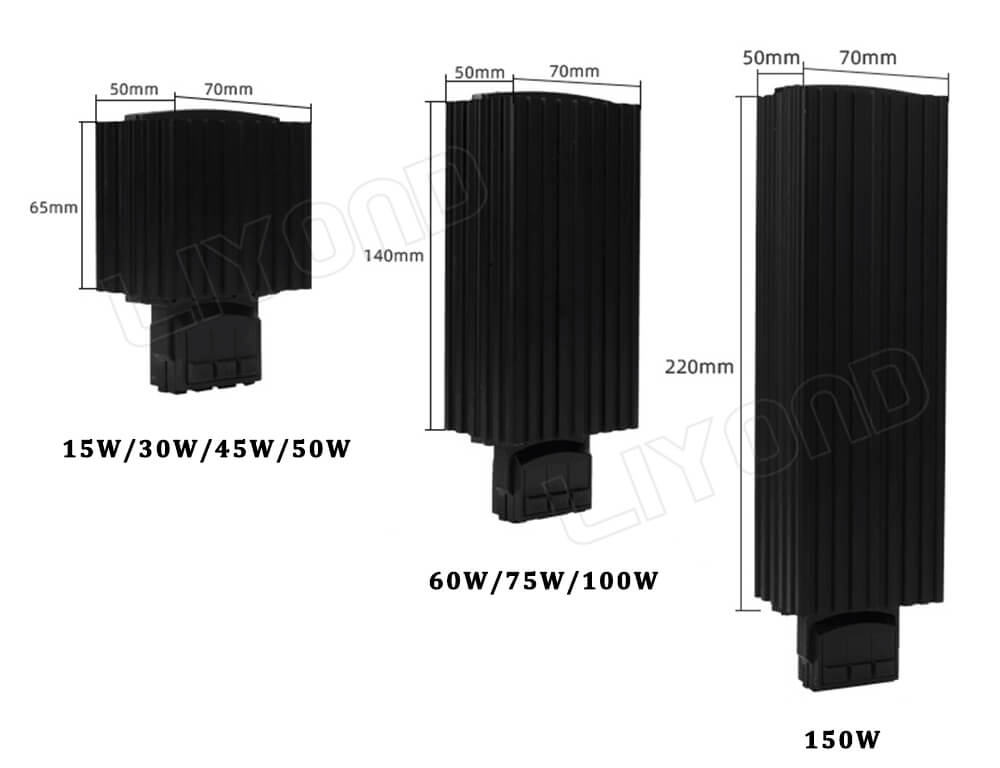

Dimensions

Features of PTC Aluminium Heaters

Power Range: Available in 15W to 150W, tailored to meet various heating requirements.
PTC Heating Element: Self-regulating PTC technology provides consistent heating while preventing overheating.
Aluminum Alloy Housing: Durable and lightweight design offers excellent thermal conductivity and resistance to corrosion.
Moisture Prevention: Effectively reduces humidity levels within cabinets, protecting electronic equipment from damage.
Compact Design: Space-saving dimensions facilitate easy installation in confined spaces.
Energy Efficient: Low power consumption combined with high output helps to reduce operational costs.
Wide Applications: Suitable for control cabinets, electrical enclosures, and other sensitive equipment environments.

Technical parameters of Semiconductor Heater 15W-150W

Operating voltage	120-240V AC/DC*(min.110V, max.265V)
Heating element	PTC resistor, self regulating and temperature limiting
Heater body	extruded aluminium profile, anodised
Connection	3 pressure clamps for stranded wire 0.5-1.5mm2 (with wire end ferrule) and rigid wire 0.5-1.5mm2
Housing Material	black plastic, according to UL94 V-0
Mounting	dip for 35mm DIN rail, EN 60715
Fitting position	vertical
Operating/Storage temperature	-20℃ to +70℃(-49 to +158°F)
Protection type/Protection class	IP54 / I (earthed)
Accessories	screw fixing
