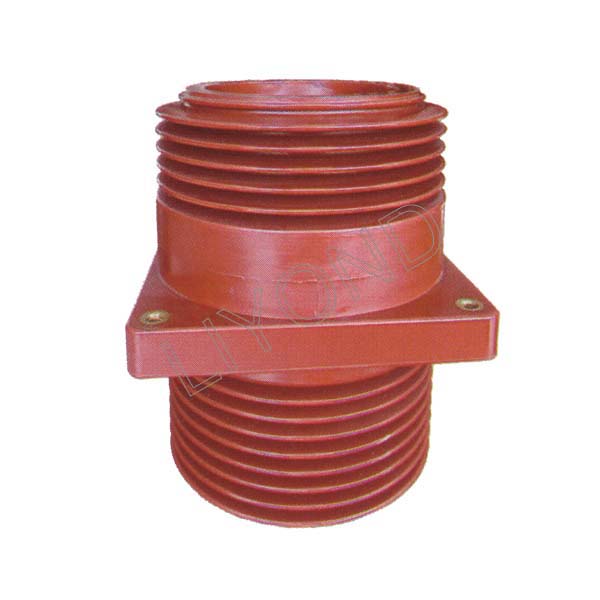

LYC213 Insulated Bushing Insulator For 24kV Switchgear

Item No: LYC213

Get A Quote

LYC213 Insulated Bushing Insulator For 24kV Switchgear

Electrical Products

Features
Use Conditions
Details
Dimensions

Features of LYC213 Insulated Bushing Insulator

1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.

2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5. It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.

Use Conditions of LYC213 Insulated Bushing Insulator

1. Indoor installation.
2. Altitude: ≤1000m.
3. Ambient temperature: +40°C~5°C.
4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.

Details of LYC213 Insulated Bushing Insulator

Model Name	Bushing LYC213
Brand	Liyond
Application	High Voltage / Switchgear
Operation condition	indoor installation
Color	brown, red
Material	epoxy resin
Order note	Please choose bus hole size
Rated voltage	24kV,40.5kv
MOQ	50pcs
Packing	1. Each one is wrapped with plastic film 2. Packed in cartons or wooden box 3. The cases are bound with iron belts externally
Loading port	Shanghai Port / Ningbo Port
Payment terms	L/C, T/T, Western Union
Delivery time	within 10 days, depends on order quantity
Additional	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification
