17.5kV Casting Epoxy Resin Wall Feed Through Busbar Integrated Bushing

Main features of TGZ01-17.5 Wall Feed Through Busbar Bushing

1. Epoxy resin material: high-strength epoxy resin material is used, with excellent electrical insulation performance and mechanical strength.
2. Combination design: modular combination design, easy to install and maintain, to meet different installation requirements.
3. High reliability: arc resistance, aging resistance, long service life, low maintenance cost.
4. Environmental adaptability: Able to work in harsh environmental conditions, such as high humidity, high salt spray, etc.

Application scenarios
Substation: Busbar or cable wall crossing for high-voltage switchgear, transformers and other equipment.
Industrial power distribution system: In environments such as factories or mines, the busbar or cable can be insulated through the wall.
Power plant: Power output and distribution system for power generation equipment.

Installation and maintenance
Installation: Before installation, check that the equipment is intact. During installation, follow the installation manual provided by the bushing manufacturer to ensure good sealing and insulation.
Maintenance: Regularly check whether the surface of the casing has cracks, deformation or aging, keep the surface clean, and avoid dust accumulation and pollution.

Technical parameters of TGZ01-17.5  Bushing

Rated voltage 17.5kV
Short-time power frequency withstand voltage: 38kV/1min;
Lightning impulse withstand voltage: 95kV;
Minimum ambient temperature -5℃
Mechanical strength: Epoxy resin material has high mechanical strength and can withstand certain mechanical stress.

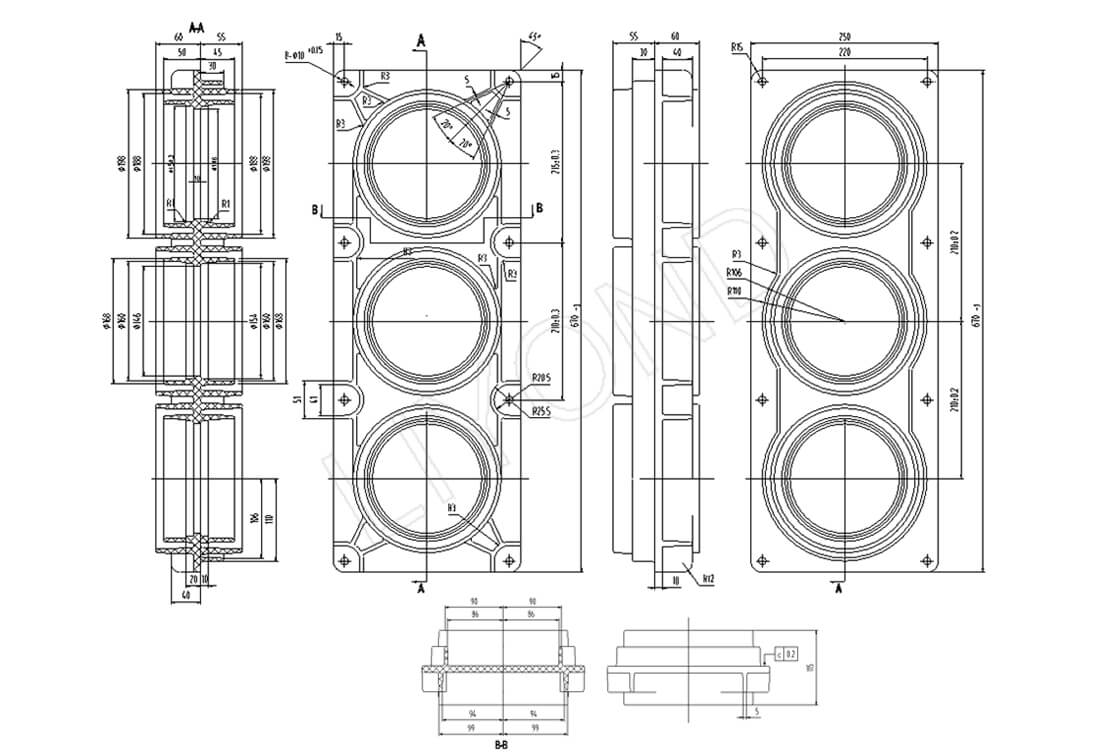

Dimensions for reference
