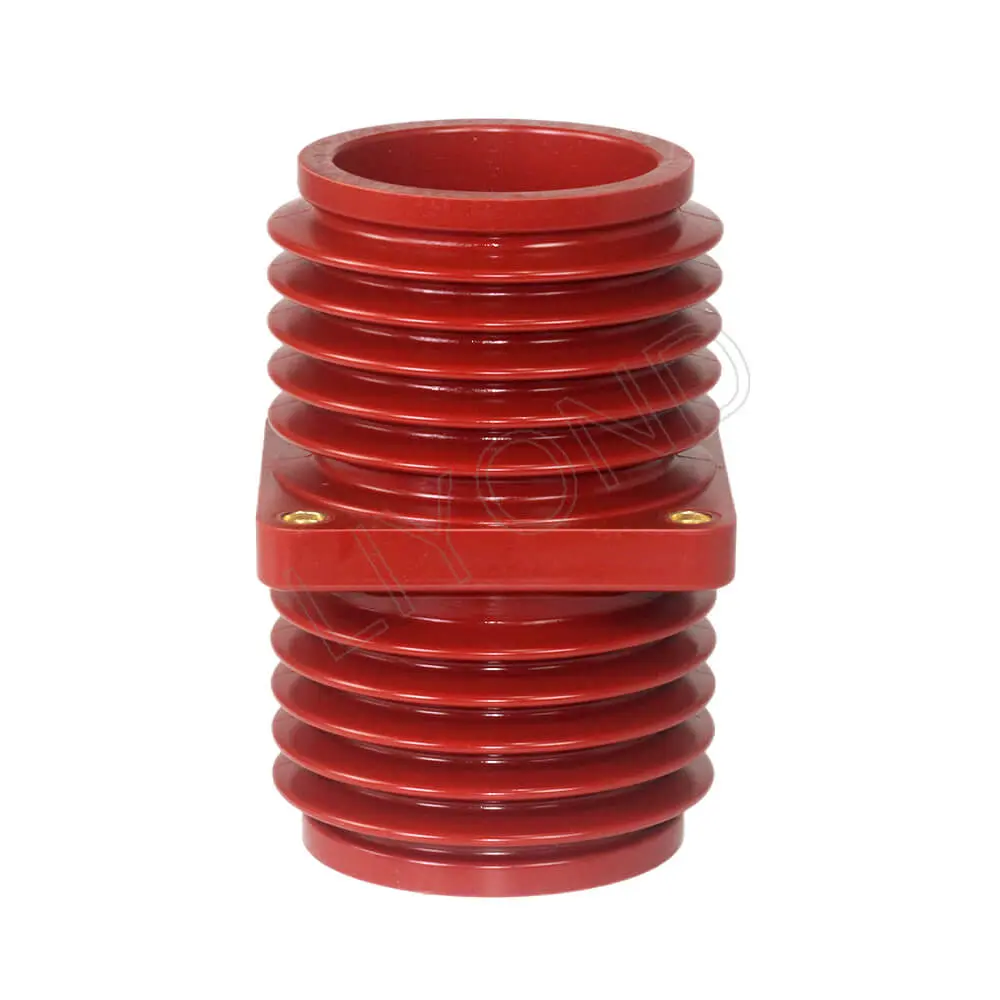

LYC180 12kV Epoxy Resin Main Busbar Bushing

• Specification
• Drawing

• LYC180 12kV Epoxy Resin Main Busbar Bushing

  Item No: LYC180

  12kV epoxy resin wall bushing is an electrical insulation component designed for medium voltage switchgear. Its main function is to pass the cable or busbar through the partition or wall of the switchgear, while providing high-strength electrical insulation and mechanical support to prevent electrical leakage between different voltage levels.

  Features:

  1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.

  2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below.

  3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

  4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

  5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.



  Details:

  Model Name:	Bushing
  Brand:	Liyond
  Application:	High Voltage / Switchgear
  Operation condition	indoor installation
  Color:	brown, red
  Material	epoxy resin
  Product Certification:	CE and ISO 9001:2000
  Rated voltage:	12 kV
  MOQ:	50pcs
  Packing:	1. Each one is wrapped with plastic film 2. Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally
  Loading port:	Shanghai  Port / Ningbo  Port
  Payment terms:	L/C,T/T, Western Union
  Delivery time:	within 15 days, depends on order quantity
  Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification

• 12KV Epoxy Resin Bushing LYC180

  Item No: LYC180



  Our Advantages:

  1. We are specialized in sales of high-voltage electrical insulation products: contact box, bending plate, insulator, sensor, wall bushing, contact arm bushing, insulated cylinder and tube.

  2. Strict quality control and excellent after-sales service.

  3. Experienced staffs answer all of your question in fluent English.

  3. Customized design is available. OME&ODM are welcomed.

  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



If you would like a quotation or further information on this product, please fill in the form below and we will reply to you within 1 working day.
