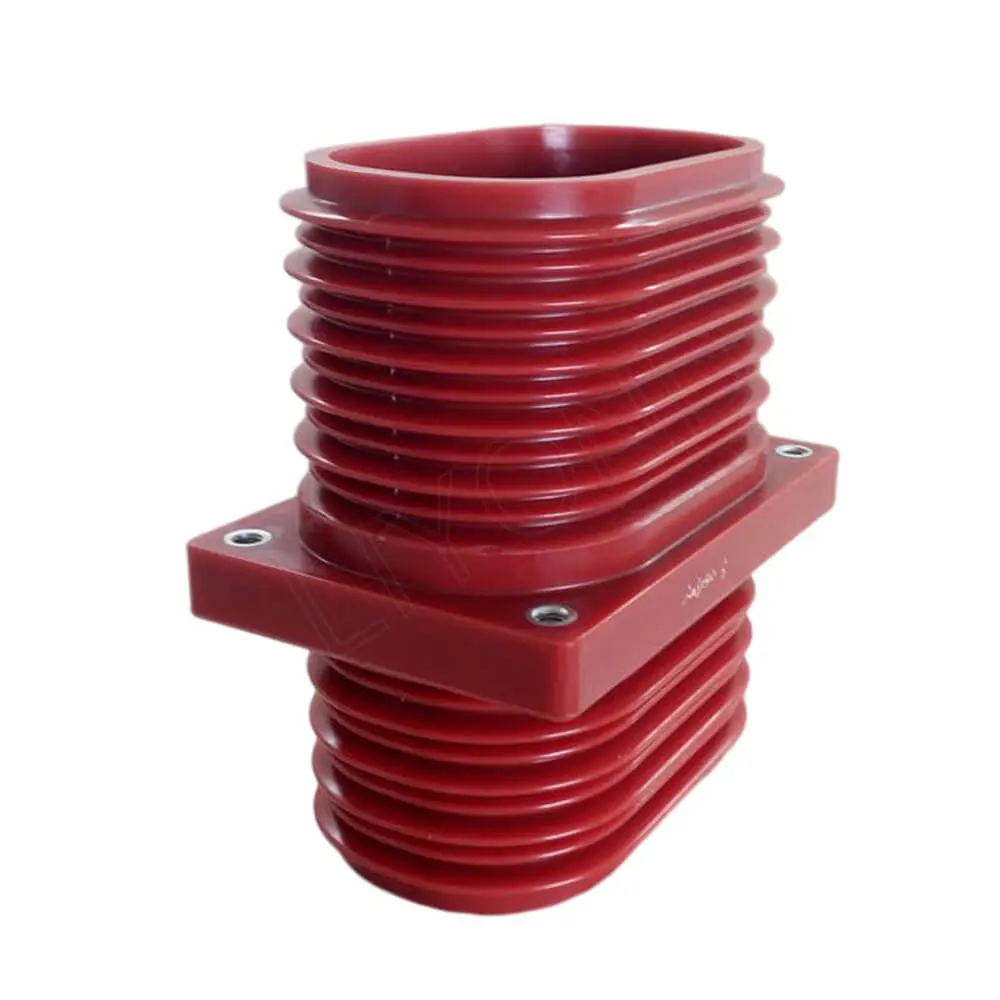

• LYC146 Insulated 12kV Epoxy Resin Bushing TG3-12/110*180*230 For Switchgear

  Item No: LYC146

  The 12kV epoxy resin wall bushing is primarily used in medium-voltage distribution equipment, such as switchgear and transformers, to provide an electrical passage while ensuring electrical isolation between the equipment and its surrounding environment. This bushing effectively prevents current leakage and short circuits, ensuring the safety of both equipment and personnel.

  Features:

  1. Excellent Insulating Properties: The epoxy resin material has high dielectric strength, capable of withstanding 12kV voltage, ensuring the safe operation of the electrical system.
  2. High Mechanical Strength: This material offers strong compressive and impact resistance, maintaining its integrity even under harsh environmental conditions.
  3. Superior Environmental Resistance: The epoxy resin bushing is resistant to moisture, chemicals, UV radiation, and other environmental factors, which extends its service life.
  4. Easy Installation: The bushing is compact and lightweight, making it easy to install and maintain, reducing installation time and costs.
  5. Low Maintenance: Epoxy resin material has self-cleaning properties, reducing maintenance efforts and lowering operational costs.
  6. Customizable: The bushing can be customized in different sizes and shapes to meet specific application requirements, accommodating various installation environments.

  Applicable Work Environment:

  1. Indoor installation.
  2. Altitude: ≤1000m.
  3. Ambient temperature: +40°C~5°C.
  4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
  5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

  Details:

  Model Name	TG3-12/110*180*230 Bushing
  Brand	Liyond
  Application	High Voltage / Switchgear
  Operation condition	indoor installation
  Color	brown, red
  Material	epoxy resin
  Product Certification	CE and ISO 9001:2000
  Rated voltage	12kV
  MOQ	50pcs
  Packing	1. Each one is wrapped with plastic film 2. Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally
  Loading port	Shanghai  Port / Ningbo  Port
  Payment terms	L/C, T/T, Western Union
  Delivery time	within 15 days, depends on order quantity
  Additional	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification
