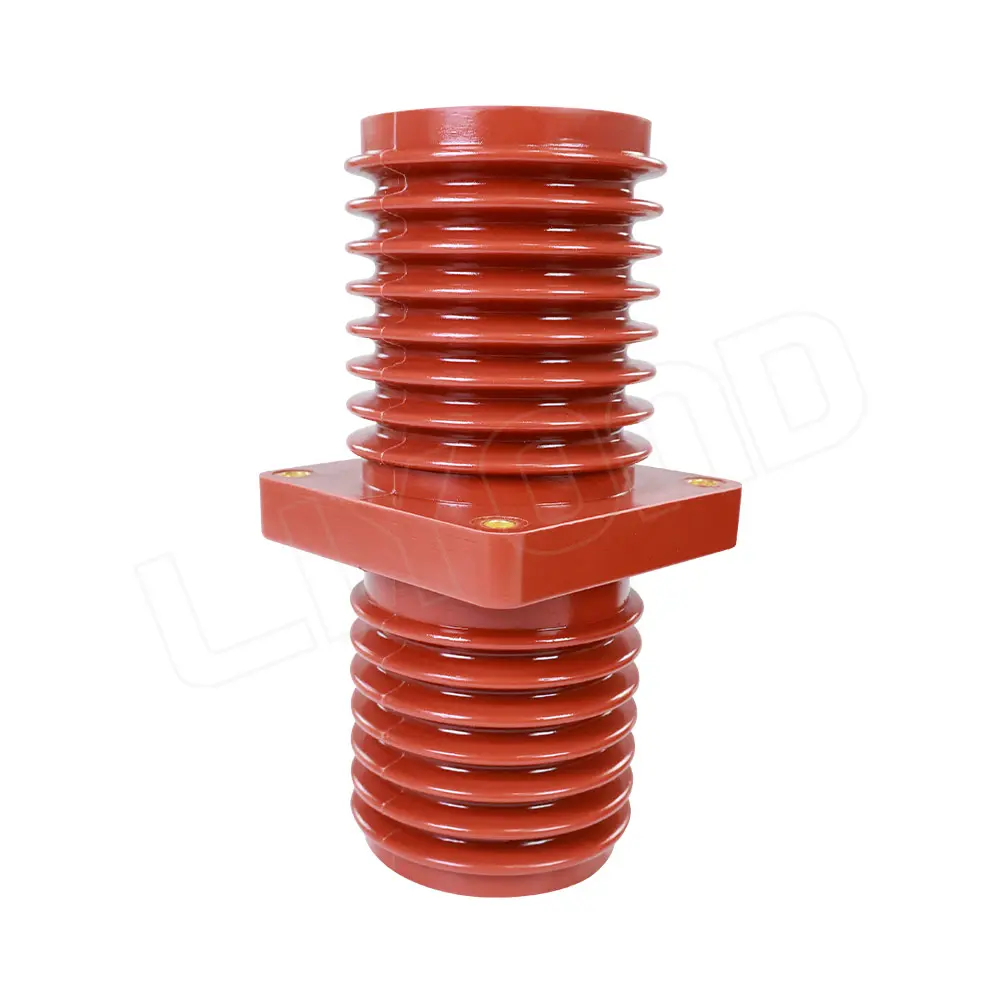

Home/Switchgear Insulation Accessories/Epoxy Bushing for Switchgear/LYC143 12kV Switchgear Epoxy Resin Bushing TG3-12/100*100*246 LYC143 12kV Switchgear Epoxy Resin Bushing TG3-12/100*100*246
Item No: LYC143
12kV through-wall casing for epoxy resin APG process pressure gel moulding structure, mainly suitable for rated voltage of 12kV and the following complete sets of equipment, for insulation isolation and connection of excessive use. The casing is resistant to dirt and humidity and requires no special maintenance, only regular cleaning of the surface. The busbar passes through the hole during installation.
Electrical ProductsFeatures of LYC143 12kV Switchgear Epoxy Resin Bushing TG3-12/100*100*246
1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.
2. Insulation bushing is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below.
3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.
4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.
5. It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.
Details of LYC143 12kV Switchgear Epoxy Resin Bushing TG3-12/100*100*246
| Model Name | TG3-12/100*100*246 Bushing |
| Brand | Liyond |
| Application | High Voltage / Switchgear |
| Operation condition | Indoor installation |
| Color | Brown, red |
| Material | Epoxy resin |
| Product Certification | CE and ISO 9001:2000 |
| Rated voltage | 12kV |
| MOQ | 50pcs |
| Packing | 1. Each one is wrapped with plastic film
2. Packed in cartons 3. Cartons are sealed in a wooden box 4. The cases are bound with iron belts externally |
| Loading port | Shanghai Port / Ningbo Port |
| Payment terms | L/C, T/T, Western Union |
| Delivery time | within 15 days, depends on order quantity |
| Additional |
1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification |
Dimensions of LYC143 12kV Switchgear Epoxy Resin Bushing TG3-12/100*100*246
Use Conditions of LYC143 12kV Switchgear Epoxy Resin Bushing TG3-12/100*100*246
1. Indoor installation.
2. Altitude: ≤1000m.
3. Ambient temperature: +40°C~5°C.
4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance
Services of LYC143 12kV Switchgear Epoxy Resin Bushing TG3-12/100*100*246
1. We are specialized in sales of high-voltage electrical insulation products.
2. Strict quality control and excellent after-sales service.
3. Experienced staffs answer all of your question in fluent English.
3. Customized design is available. OME&ODM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
