Home/Outdoor High-Voltage Switchgear/Outdoor Circuit Breaker/LW36-126 KV Type Outdoor Self-Evolving H.V. High Voltage SF6 Circuit Breaker LW36-126 KV Type Outdoor Self-Evolving H.V. High Voltage SF6 Circuit Breaker
LW36-126 self- contained power HV AC sulfur hexafluoride circuit breaker is an outdoor product. It is used in electricity grids with altitudes of no more than 2000m (product designs for 3000m are available), environment temperatures of no less than -30℃(low-temperature products are suitable for -50℃ ~+40℃), local pollution classes of no more than Class IV, and maximum voltage of 126/145kV to cut off rated currents, fault currents, or switching lines in order to implement control and protection of electricity systems. It can also be used as a connection circuit breaker.
By adopting SF6 gas as the arc extinguisher and insulation medium, using the most advanced self-contained power arc extinguishing technology in the world, and being equipped with new-type spring actuating mechanism, this product has features such as long electrical endurance, less operating power, low noise, and high reliability. It has a simple structure, small size, long maintenance-free cycle. In the current trend of oil-free and high-capacity electricity equipments, it can completely replace import products in the same field.
Electrical ProductsFeatures of LW36-126 KV Type Outdoor Self-Evolving H.V. High Voltage SF6 Circuit Breaker
1.Excellent breaking performance of arc-extinguish chamber;
2.Good insulation capacity;
3.Dependable mechanical maintenance;
4.Reduction of noise;
5.Convenient installation and debugging;
6.Dependable air-proof feature;
7.Long mechanical life and maintenance-free;
8.Safe and reliable operation.

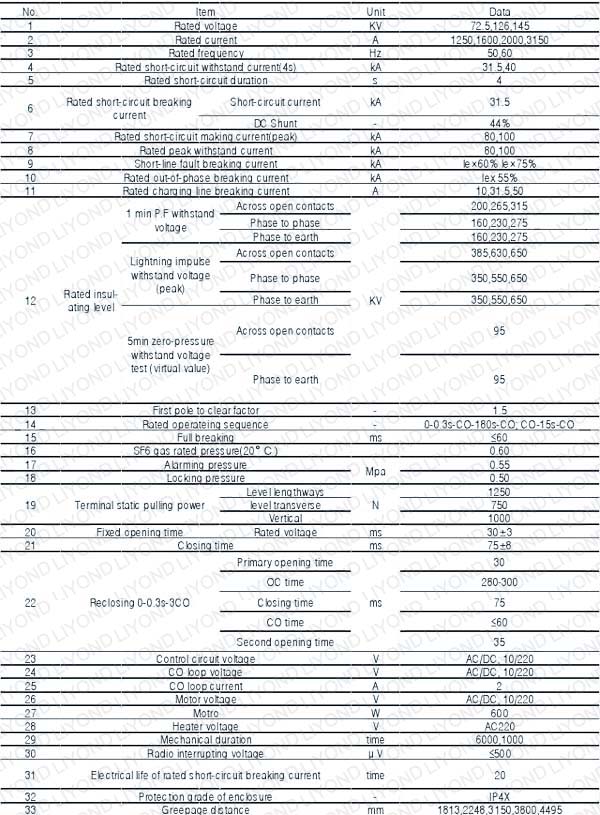

Technical Parameters of LW36-126 KV Type Outdoor Self-Evolving H.V. High Voltage SF6 Circuit Breaker

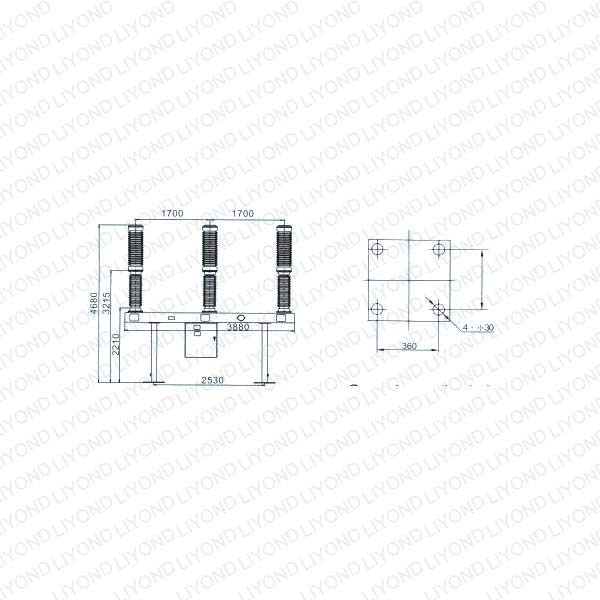

Dimensions of LW36-126 KV Type Outdoor Self-Evolving H.V. High Voltage SF6 Circuit Breaker
Order notice of LW36-126 KV Type Outdoor Self-Evolving H.V. High Voltage SF6 Circuit Breaker
1. Model and format of the circuit breaker;
2. Rated electrical parameters (voltage, current, breaking current, etc);
3. Environmental conditions for using (environment temperature, altitude, and environment pollution level);
4. Rated control circuit electrical parameters (power-storage electromotor rated voltage and brake separating and closing cable coil rated voltage);
5. Name and quantities of needed spare items, parts and special equipment and tools (to be otherwise ordered);
6. The wire connecting direction of the primary upper terminal.
