LX44 (CSK2-11C) Limit Switch Travel Switch In Mechanism

Key Technical Advantages

High-Current Interlocking Capability Engineered with a high contact capacity of 16A under AC-12 classification (380V), this micro switch directly controls high-load auxiliary circuits and motor control loops without requiring intermediate switching relays.

Snap-Action Contact Mechanism The top plunger design utilizes a rapid snap-action internal spring structure. The transition between the open and closed positions is instantaneous, preventing electrical arcing and ensuring precise position limit detection.

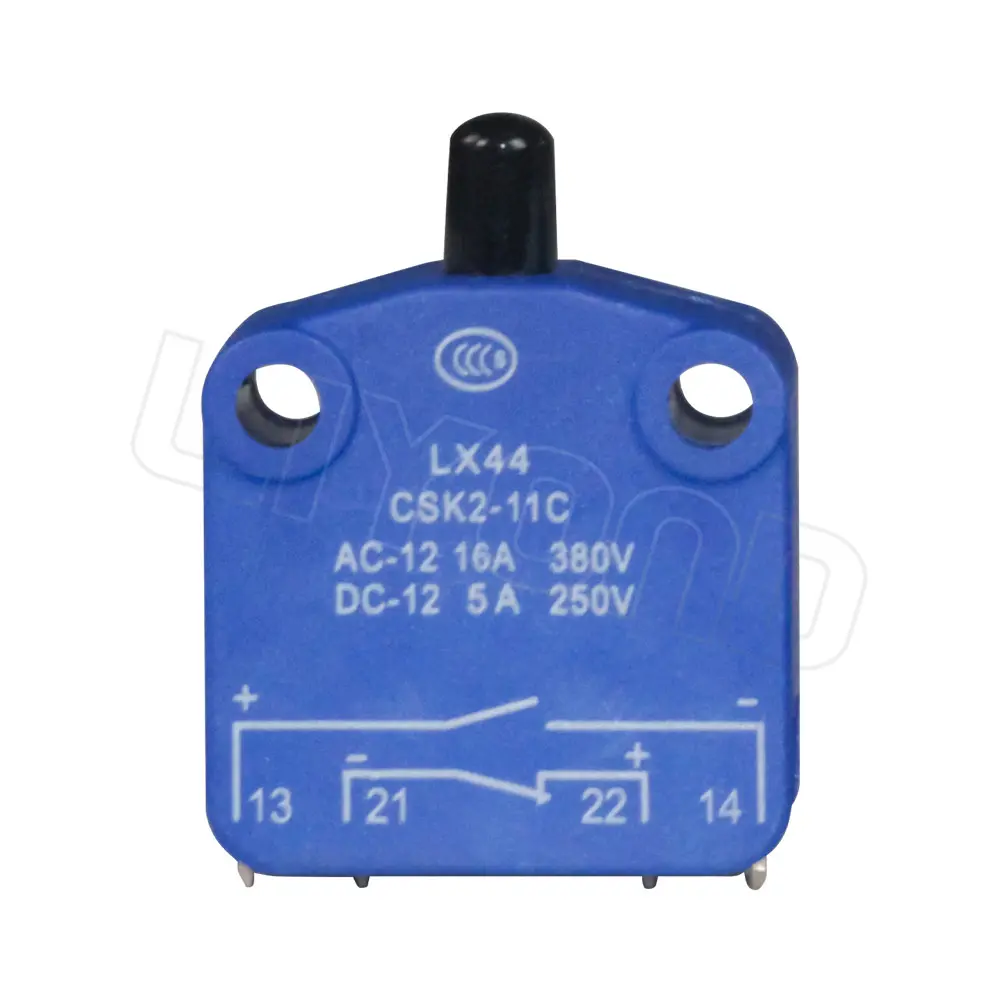

High-Definition Circuit Identification The structural shell features laser-etched, standardized wiring diagrams. Clear differentiation between terminal pairs 13-14 (NO) and 21-22 (NC) minimizes installation errors and expedites field wiring inside dense electrical cabinets.

Thermal and Rigid Polymer Shell Constructed from high-grade, flame-retardant industrial plastics. The housing retains high dielectric strength and dimensional stability under elevated internal switchgear temperatures or mechanical shock environments.

Dimensions of LX44 (CSK2-11C)  Limit Switch

Frequently Asked Questions (Technical FAQ)

What are the specific terminal functions of the LX44 CSK2-11C limit switch?

The LX44 CSK2-11C limit switch features a dual-circuit layout with 4 terminals. Terminals 13 and 14 represent the Normally Open (NO) circuit, while terminals 21 and 22 represent the Normally Closed (NC) circuit. This configuration allows simultaneous signal switching for safety interlocking and position state feedback within switchgear mechanisms.

Can the LX44 CSK2-11C micro switch be used in DC control circuits?

Yes, the LX44 CSK2-11C is fully rated for DC applications under the DC-12 utilization category. It supports a maximum current capacity of 5A at a rated voltage of 250V DC, making it highly compatible with standard industrial DC control battery banks and uninterruptible power supply (UPS) interlocking links.

What standard does this micro limit switch conform to for international applications?

The LX44 CSK2-11C limit switch is manufactured under strict factory internal quality control and is in full compliance with international IEC and CE standard specifications for low-voltage switchgear and controlgear. This ensures seamless technical compatibility with global industrial automation and power distribution integration mandates.
