Home/Switchgear Insulation Accessories/Epoxy Bushing for Switchgear/Insulating Bushing 12kv HV Switchgear LYC349 Insulating Bushing 12kv HV Switchgear LYC349
- The product adopts epoxy resin material
- It gains high level of insulation, intensity and stability.
- It provides different specifications based on the size of electric current for the user’s choice
- The contact box is formed by epoxy with APG Technology
Electrical ProductsApplicable work environment of insulating bushing LYC349
1 Indoor installation.
2 Altitude: ≤1000m.
3 Ambient temperature: +40°C~5°C.
4 The relative humidity shall not be more than 85%at+20°C ambient temperature.
5 NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance
Parameter Table of insulating bushing LYC349
| Model Name: | LYC349 |
| Brand: | Liyond |
| Type: | bushing |
| Application: | High Voltage / Switchgear |
| Color: | brown, red |
| Product Certification: | CE and ISO 9001:2000 |
| Rated voltage: | 12kv |
| Material: | Resin |
| MOQ: | 50pcs |
| Packing: | 1. Each one is wrapped with plastic film2.Packed in cartons or wooden box3.The cases are bound with iron belts externally |
| Loading port: | Shanghai Port / Ningbo Port |
| Payment terms: | L/C,T/T, Western Union |
| Delivery time: | within 15 days, depends on order quantity |
| Additional: | 1. OEM are welcome2. High quality & timely delivery3. Reasonable price
4. In a variety of designs and Specification |

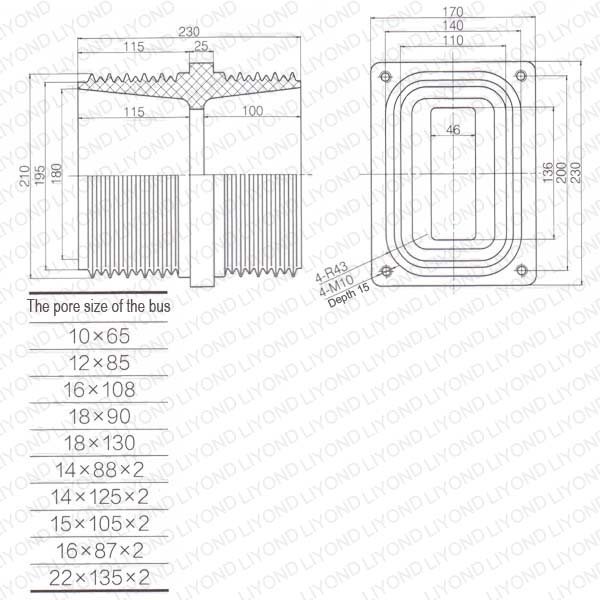

Drawing of insulating bushing LYC349
Our Advantages:
1 We are specialized in sales of high-voltage electrical insulation products.
2 Strict quality control and excellent after-sales service.
3 Experienced staffs answer all of your question in fluent English.
4 Custom made bushings are available. OEM & ODM are welcomed.
5 Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
