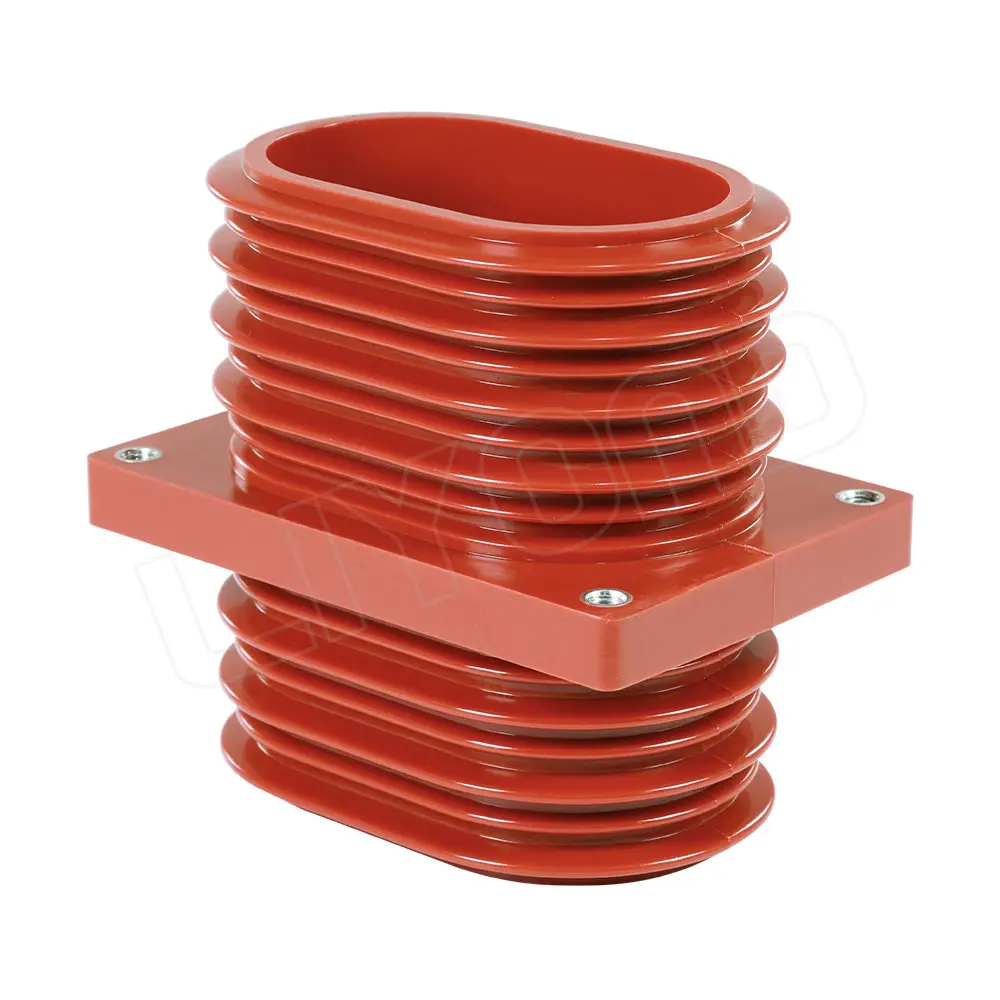

Insulating Bushing LYC147 For 12KV Switchgear

The 12kV wall bushing is designed for safely transmitting current through walls or partitions in medium-voltage switchgear, transformers, and power distribution equipment.
It provides reliable insulation and mechanical support between high-voltage conductors and grounded enclosures, ensuring system safety and stability.

Get A Quote

Insulating Bushing LYC147 For 12KV Switchgear

Electrical Products

Features
Details
Dimensions

Features of Insulating Bushing LYC147 For 12KV Switchgear

1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.

2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below by medium voltage switchgear manufacturers.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.

Details of Insulating Bushing LYC147 For 12KV Switchgear

Model Name:	TG3-12/130210235 Bushing
Brand:	Liyond
Application:	High Voltage / Switchgear
Operation condition	indoor installation
Color:	brown, red
Material	epoxy resin
Product Certification:	CE and ISO 9001:2000
Rated voltage:	12kV
MOQ:	50pcs
Packing:	1. Each one is wrapped with plastic film2. Packed in cartons3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally
Loading port:	Shanghai Port / Ningbo Port
Payment terms:	L/C,T/T, Western Union
Delivery time:	within 15 days, depends on order quantity
Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification
