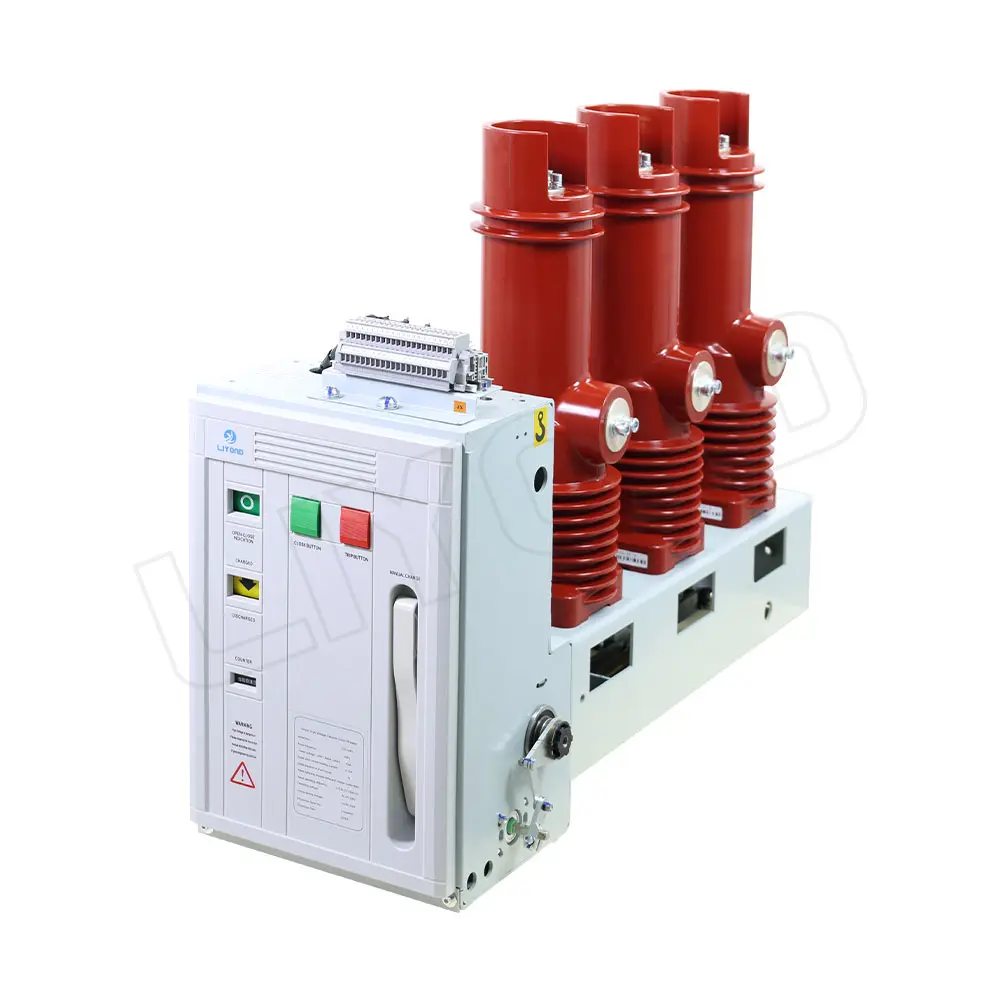

24KV Indoor High Voltage Side Mounted Vacuum Circuit Breaker with VSG Spring-operated Mechanism
-
24KV Indoor High Voltage Side Mounted Vacuum Circuit Breaker with VSG Spring-operated Mechanism
Indoor switchgear type VSG vacuum circuit breaker is applicable to 24kv power system, as a protection and control unit of power equipment, industrial and mining enterprises, it can be used for switching loads of various kinds and frequent operation, repeatedly breaking short-circuit current situation.
The product adopts new type of circuit breaker, a VSG part can adopt the international brand of embedded pole, the vacuum interrupter and the main circuit part is fixedly sealed into a whole, protect the interrupter from collision, dust and gel image, strong ability to adapt to the environment, greatly reduces the cost of operation and maintenance.
The real implementation of the product part of a maintenance free, low maintenance operation mechanism; operating mechanism and circuit breaker body design, after type test, E2 level, M2 level of mechanical electrical life.
Features
- High Reliability: Utilizes vacuum interruption technology for minimal switching losses.
- Fast Operation: The VGS spring mechanism ensures stable and quick operational response.
- Durability: High-quality materials guarantee long-term stable operation with low maintenance costs.
- Compact Design: Space-saving design suitable for various installation environments.
Environmental conditions
1. Ambient temperature: upper limit +40°C, and the average value measured within 24H does not exceed 35°C; lower limit -15°C.
2. Altitude: no more than 1000m.
3. Relative humidity: the daily average value does not exceed 95%; the monthly average value does not exceed 90%;
4. Water vapor pressure: the daily average value does not exceed 2.2kPa, and the monthly average value does not exceed 1.8kPa;
5. The surrounding air is not obviously polluted by dust, smoke, corrosive or flammable gas, steam and salt spray; -
Main technical data
S/N Item Unit Data * Type / 口Insulating cylinder 口Epoxy resin embedded poles
口Nylon embedded poles
口Upper outlet 口Side outlet
1 Rated voltage KV
24 2 Rated short time power frequency withstand voltage(a min) 65 3 Rated lightning impulse withstand voltage(peak) 125 4 Rated frequency Hz 50 5 Rated current A 630 1250
630 1250
6 Rated short-circuit breaking circuit kA
25 31.5 7 Rated short time withstand current 25 31.5 8 Rated short-circuit duration s 4 9 Rated peak withstand voltage kA
63 80 10 Rated short-circuit closing current 63 80 11 Power frequency withstand voltage of secondary circuit(1 min) V 2000 12 Rated single / back-to-back capacitor bank breaking current A 630/400 13 Switching time ms
20-50 14 Closing time 35-70 15 Mechanical life time
M2 level 10000(630-125-/25-31.5)
16 Electrical life E2 level 17 Moving and fixed contacts allow wear accumulation thickness mm 3 18 Rated closing operating voltage V AC110、AC220 DC110、DC220
19 Rated breaking operating voltage 20 Rated voltage of energy storage motor 21 Rated power of energy storage motor w 90 22 Storage time s ≤15 23 Contact distance mm 13±1 24 Over stroke 3±1 25 Contact closing bounce time ms
≤2 26 Different phases of three-phase switching ≤2 27 Average breaking speed M/s
Contact opening 6mm 0.9~1.7 0.9~1.7 28 Average closing speed Contact closing 6 mm 0.6~1.0 0.6~1.0 29 Switching rebound amplitude mm ≤3 30 Dominant loop resistance μΩ ≤45(630) ≤35(1250A)
31 Contact closing pressure N 3100~3700 32 Rated order of operation O-0.3s-CO-180s-CO Side-mounted Circuit Breaker Outline Dimension Drawing Reference
