LYC352 HV Epoxy Resin Switchgear Box Insulator 12kV

LYC352 HV Epoxy Resin Switchgear Box Insulator 12kV

• Specification

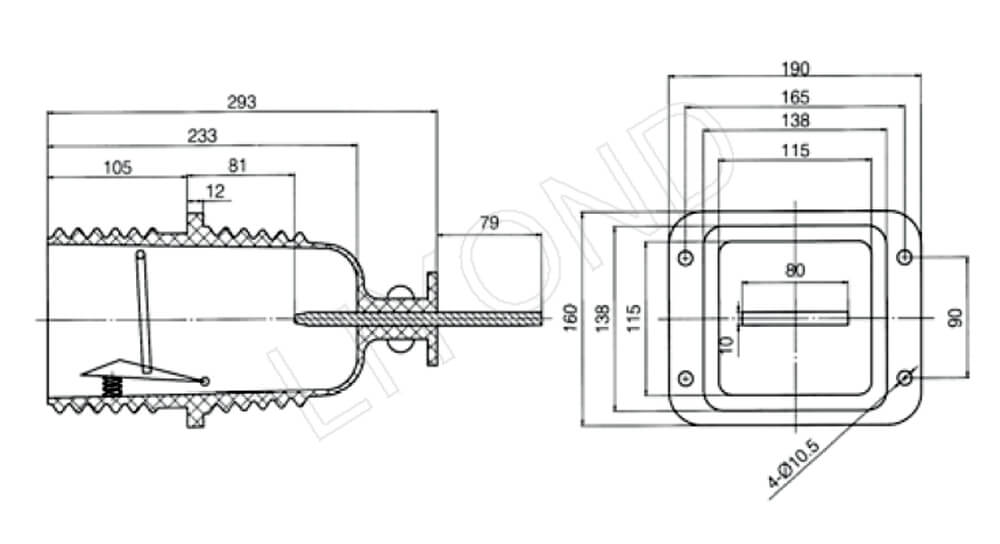

• Drawing

• LYC352 HV Epoxy Resin Switchgear Box Insulator 12kV

  Item No: LYC352

  The LYC352 Contact Box is a high-performance electrical insulation component designed for use in medium and high-voltage switchgear. It effectively isolates switch contacts from the external environment, ensuring system safety and reliability during operation. Its robust design and materials make it ideal for demanding electrical systems.

  Key Features:

  • High-Quality Insulation: Made from high-strength, arc-resistant insulating materials, the JYN2 Contact Box ensures superior electrical isolation and long-term reliability.
  • Efficient Design: The compact and precise structural design isolates the switch contacts effectively, minimizing external interference.
  • Heat Dissipation: Equipped with ventilation holes, the contact box is designed to efficiently dissipate heat, preventing overheating during prolonged use.
  • Easy Installation: The JYN2 Contact Box can be easily mounted with screws, offering secure and stable positioning within the switchgear.
  • Wide Application: Ideal for medium and high-voltage switchgear, including circuit breakers and isolating switches.

  Benefits:

  • Enhanced Safety: By insulating electrical contacts, the JYN2 Contact Box reduces the risk of short circuits caused by dust, moisture, or other environmental factors.
  • Long-Lasting Durability: Made from premium materials, it offers consistent performance and reduces the need for frequent maintenance.
  • Versatile Compatibility: Suitable for a wide range of voltage levels and various switchgear types, making it a flexible solution for different electrical systems.

  Applications:

  The Contact Box is widely used in medium and high-voltage electrical systems, including:

  • Circuit breakers
  • Isolating switches
  • Distribution boards
  • High-voltage switchgear assemblies

  Applicable Work Environment:

  1. Indoor installation.
  2. Altitude: ≤1000m.
  3. Ambient temperature: +40°C~5°C.
  4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
  5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

  Details:

  Model Name:	LYC352
  Brand:	Liyond
  Type:	Contact Box
  Application:	High Voltage / Switchgear
  Color:	brown, red
  Product Certification:	CE and ISO 9001:2000
  Rated voltage:	12 KV
  Material:	Resin
  MOQ:	10pcs
  Packing:	1. Each one is wrapped with plastic film 2.Packed in cartons or wooden box 3.The cases are bound with iron belts externally
  Loading port:	Shanghai  Port / Ningbo  Port
  Payment terms:	L/C, T/T, Western Union
  Delivery time:	within 15 days, depends on order quantity
  Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification
