Home/Vacuum Circuit Breaker Contact/Tulip contact/Circuit Breaker Movable Contacts Spring Tulip Contact LYA106 Circuit Breaker Movable Contacts Spring Tulip Contact LYA106
Model No.: LYA106

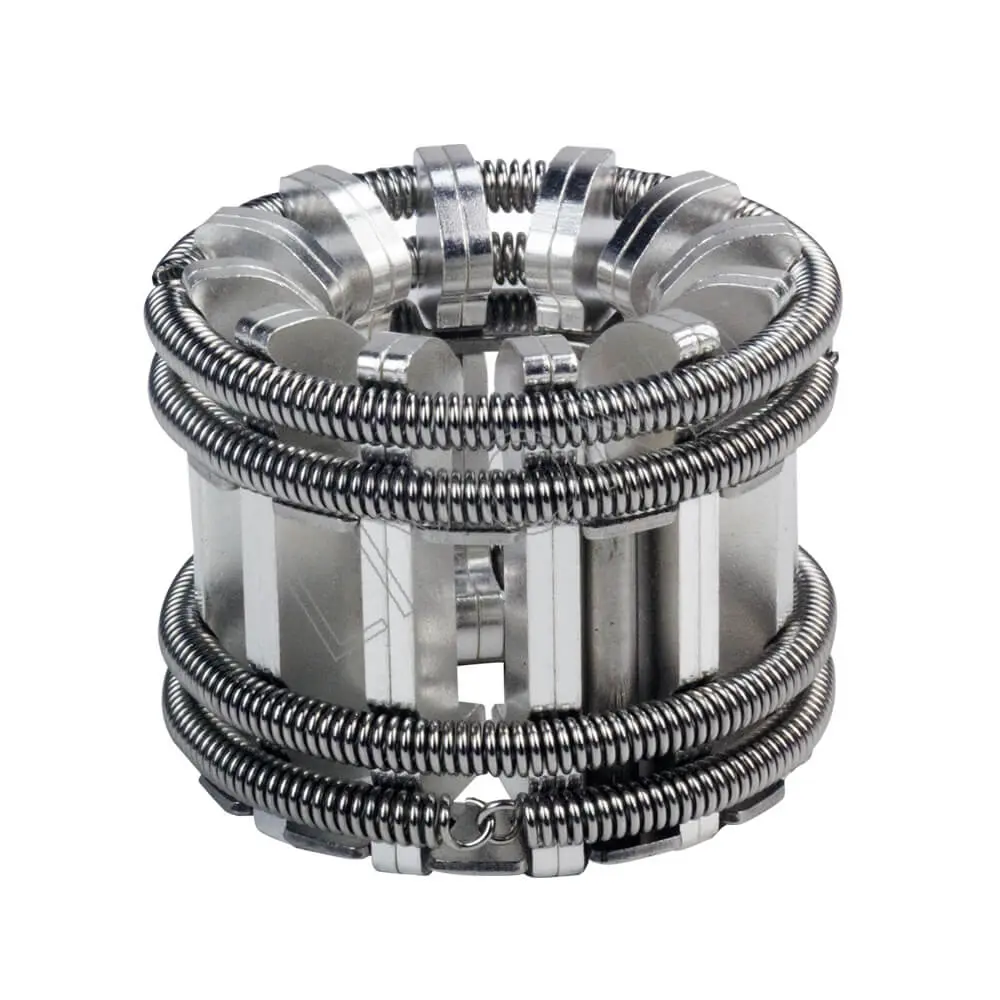

The LYA106 tulip contact used on the vacuum circuit breaker is a special electrical contact. Its shape is like a plum blossom, which can increase the contact area and reduce the contact resistance, thus improving the electrical performance and reliability of the circuit breaker. Torx contacts are usually made of copper, and the surface is silver-plated or gold-plated to improve its conductivity and corrosion resistance. In vacuum circuit breakers, tulip contacts are usually used to disconnect or connect important electrical equipment such as high current and high voltage in the circuit.
Electrical ProductsDetails of Circuit Breaker Movable Contacts Spring Tulip Contact LYA106
| Rated current | 630/1250A |
| Material | copper with thick silver plating, stainless steel with magnetic free |
| Contact blade | 24pcs |
| Type | Bundled |
| Application | vacuum circuit breaker |
| The minimum quantity | 10pcs |
| Payment terms | T/T, L/C, Western Union |
Advantages of Circuit Breaker Movable Contacts Spring Tulip Contact LYA106
1. Made of high 99.9% pure T2 copper tube, customize the thickness of silver coating
2. High quality non-magnetic Ring-shaped stainless spring with average pressure, avoid the eddy;
3. 3mm thickness of T2 copper..We can design and manufacture according to customers drawings and requirement.
4. Can customize specific high thickness silver coating, guarantee the thickness of silver coating, high abrasion resistance;
5. Discoloring proof treatment, avoid the dropping caused by silver coating oxidation;
6. We are ISO9001:2000, ISO14001:2004 certificated company, having strict quality processing according to ABB requirements.
Structure Features of Circuit Breaker Movable Contacts Spring Tulip Contact LYA106
Annular spring with uniform pressure
Adopt imported non-magnetic stainless steel,avoid eddy current
Thick silver coating,strong abrasion strength
Anti-tarnishing processing,avoid silver coating oxidation off
Fixed contact insertion depth for reference：34±2mm

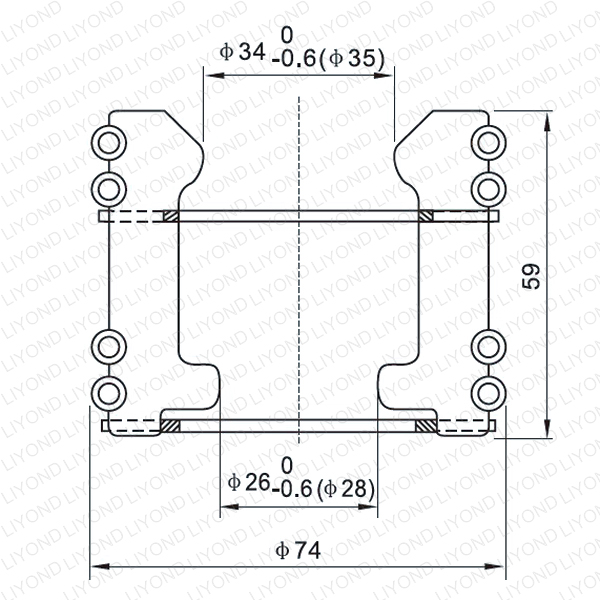

Dimensions of Circuit Breaker Movable Contacts Spring Tulip Contact LYA106
