Home/Switchgear Insulation Accessories/Insulator and Sensor/LYC135 Post Insulator Sensor With Epoxy Resin For High Voltage 40.5kV LYC135 Post Insulator Sensor With Epoxy Resin For High Voltage 40.5kV

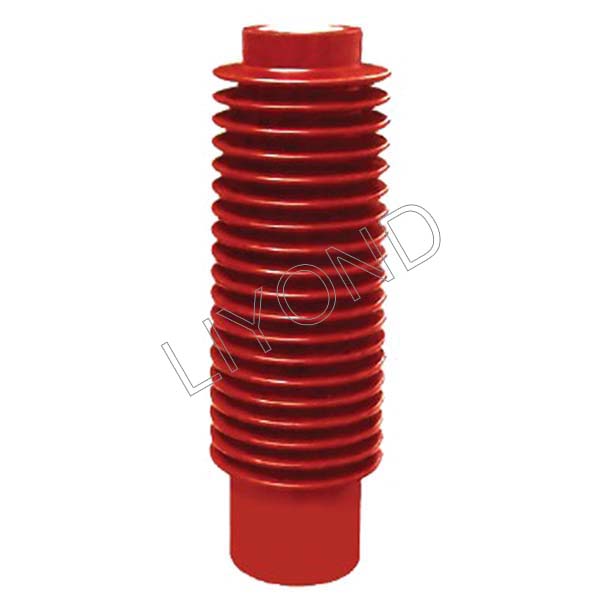

The insulators are cast and moulded in epoxy resin, resistant to dirt and humidity, require no special maintenance, only regular removal of surface dirt, and have threaded holes at both ends for mounting.
Normal Operation Environment Condition of LYC135 Post Insulator Sensor With Epoxy Resin For High Voltage 40.5kV
1 Altitude can’t exceed 1000m，and the altitude of plateau type can’t exceed 3000m；
2 Surrounding temperature ranges from -10℃ to +40℃，and the daily average temperature；
3 Daily average value of Relative humidity can’t exceed 95%，and the monthly average；
4 There is no any dust﹑smoke﹑pollution of corrosive or flammable air﹑vapor and salt fog；
5 There is no any frequent vibration or bumping in installation place；
6 The product all could run in the case of dew and Ⅱ feculence condition；
Dimensions of LYC135 Post Insulator Sensor With Epoxy Resin For High Voltage 40.5kV
Details of LYC135 Post Insulator Sensor With Epoxy Resin For High Voltage 40.5kV
| Model Name | ZJ-40.5//130*340–380 |
| Brand | Liyond |
| Type | Insulator/Sensor |
| Application | High Voltage / Switchgear |
| Rated Voltage | 40.5KV |
| Color | brown, red |
| Material | Epoxy resin |
| Product Certification | CE and ISO 9001:2000 |
| MOQ | 50PCS |
| Payment terms | L/C, T/T, Western Union |
| Maximum Diameter | 130mm |
| Height | 340-380mm |
| Power frequency withstand voltage | 95kv/min |
| Partial discharge | <10pc |
| Creepage distance | 935mm |
| Bending strength | 13000 N |
Services of LYC135 Post Insulator Sensor With Epoxy Resin For High Voltage 40.5kV
We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!
We will give you best quality and price!
