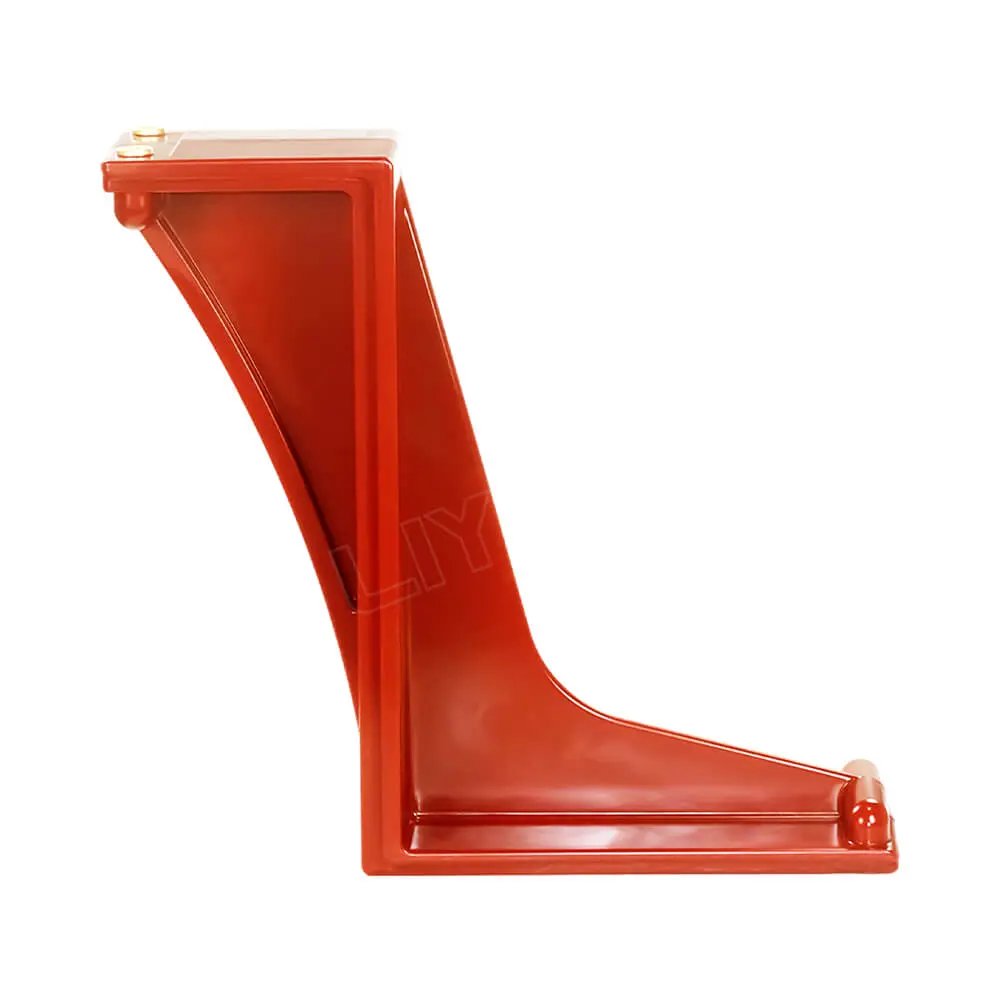

LYW101-102 Epoxy Resin Insulation Bending Plate For 35kV Electrical Panel

High-voltage epoxy resin bent plate is an insulating component used in high-voltage power equipment. It is mainly used for the insulation and support of various electrical connection parts in the power system.

Item No: LYW101-102

Get A Quote

LYW101-102 Epoxy Resin Insulation Bending Plate For 35kV Electrical Panel

Electrical Products

Features
Details
Dimensions
Technological Process

Features of LYW101-102 Epoxy Resin Insulation Bending Plate For 35kV Electrical Panel

The main function:
Insulation: High-voltage epoxy resin bent plates have excellent insulation properties, which can effectively prevent current leakage and ensure the safe operation of the power system.
Support: Provide mechanical support to ensure the stable installation of electrical equipment and wires.
Protection: Protect electrical connections from the external environment, such as moisture, dust and chemical corrosion.

Main feature:
High withstand voltage: able to withstand high voltage, suitable for high-voltage power systems of 35kV and above.
Heat resistance: Epoxy resin material has good heat resistance and can maintain stable performance in high temperature environments.
High mechanical strength: It has good mechanical strength and toughness and can withstand large mechanical stress and impact.
Aging resistance: It is not easy to age after long-term use and can maintain long-term and stable insulation performance.
Moisture-proof and dust-proof: The epoxy resin material itself is moisture-proof and dust-proof, and is suitable for various harsh environments.

Details of LYW101-102 Epoxy Resin Insulation Bending Plate For 35kV Electrical Panel

Size	58354060/80/140/150/180
Color	brownish red
Product Certification	CE and ISO 9001:2000
Rated voltage	40.5kV
MOQ	10pcs
Loading port	Shanghai / Ningbo
Payment terms	L/C, T/T, Western Union
Delivery time	within 20 days, depends on order quantity
Packing	1.Each one is wrapped with plastic film 2.Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally

Dimensions of LYW101-102 Epoxy Resin Insulation Bending Plate For 35kV Electrical Panel

Technological Process of LYW101-102 Epoxy Resin Insulation Bending Plate For 35kV Electrical Panel

1. Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture. Product beautiful, Machine, Electrical performance fit.

2. Adopts high toughness epoxy resin manufacture , Machine capability excellent, And adopts low reaction activity recipe system , Material solidifies slow , Product body stress low. Maximum field enhances products machine capability.

3. Adds activated silica slight powder, further enhance epoxy resins machine capability, Much ensures insulate long-term keep good electric insulate performance under wet work environment.

4. Adds organic color, Product color and luster bright, Does not reduce products insulate performance
