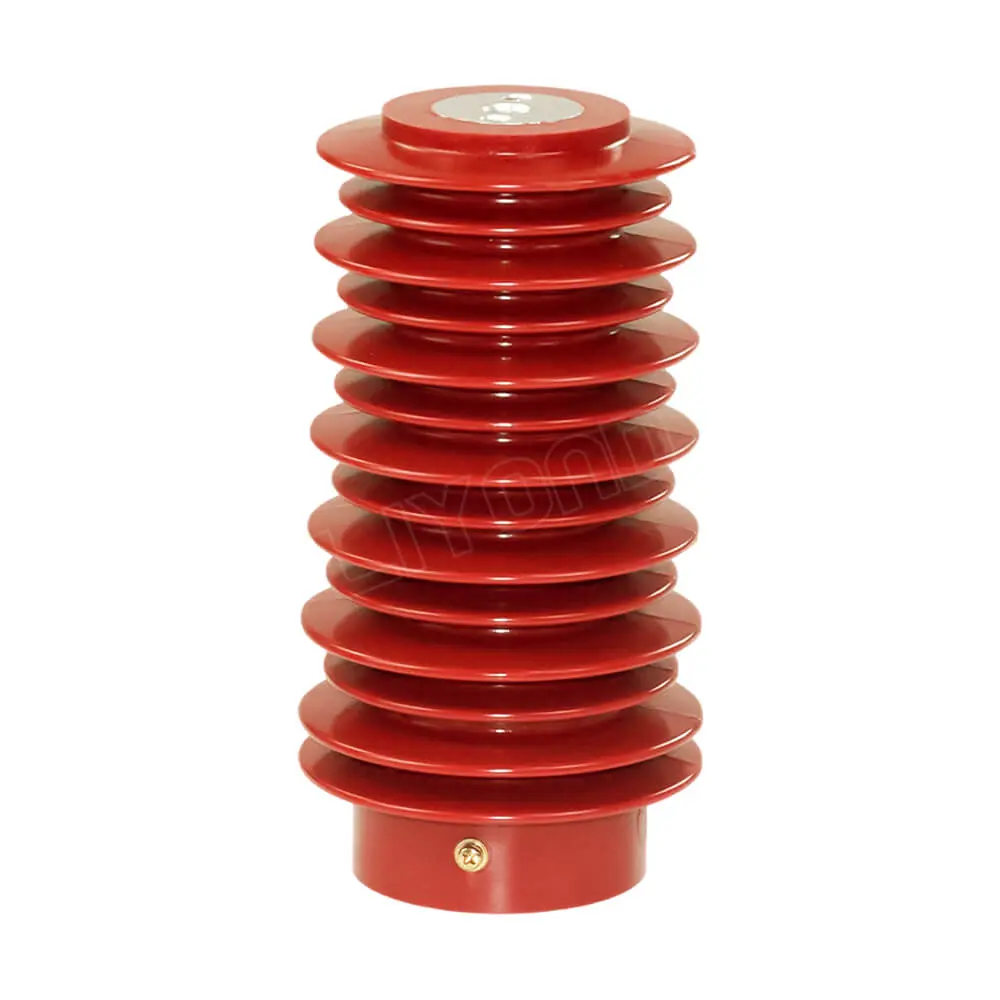

LYC131 24KV Epoxy Insulator Conductive Sensor For Switchgear

Insulator: It is a special insulation control, also known as supporting insulators, which acts as a support wire and prevents current from returning to the ground, increasing the creepage distance.

Sensor：The bottom two screws act as conductors to induce current and transmit information to the live display.

Get A Quote

LYC131 24KV Epoxy Insulator Conductive Sensor For Switchgear

Electrical Products

Specification
Drawing

Specification of LYC131 sensor

Details:

Size	As per customer’s requirement
Brand	Liyond
Type	Insulator/Sensor
Application	High Voltage / Switchgear
Color	brown, red
Product Certification	CE and ISO 9001:2000
Rated voltage	24kV
MOQ	50pcs
Packing	1. Each one is wrapped with plastic film 2. Packed in cartons 3. Cartons are sealed in a wooden box 4. The cases are bound with iron belts externally
Loading port	ShanghaiPort / NingboPort
Payment terms	L/C, T/T, Western Union
Delivery time	within 20 days, depends on order quantity
Additional	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification

Features:

1. Application in 24kV switchgear, the epoxy cast resin insulator used for the detecting of the presence of voltage on phase lines.

2. The basic cooperation principle is on the capacitive device of phase voltage and the insulator connects with the discharge indicator unit.

3. With APG, Resin cast finished, backed in the machine and assembled with nuts, clean and packed.

4. The nuts can be made of copper or made of iron with copper plating. Detected by X-ray instrument, Partial Discharges instrument, thermal Cycle Test Machine.

5. Quality Control, Quality Products. It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad,

Drawing of LYC131 sensor
