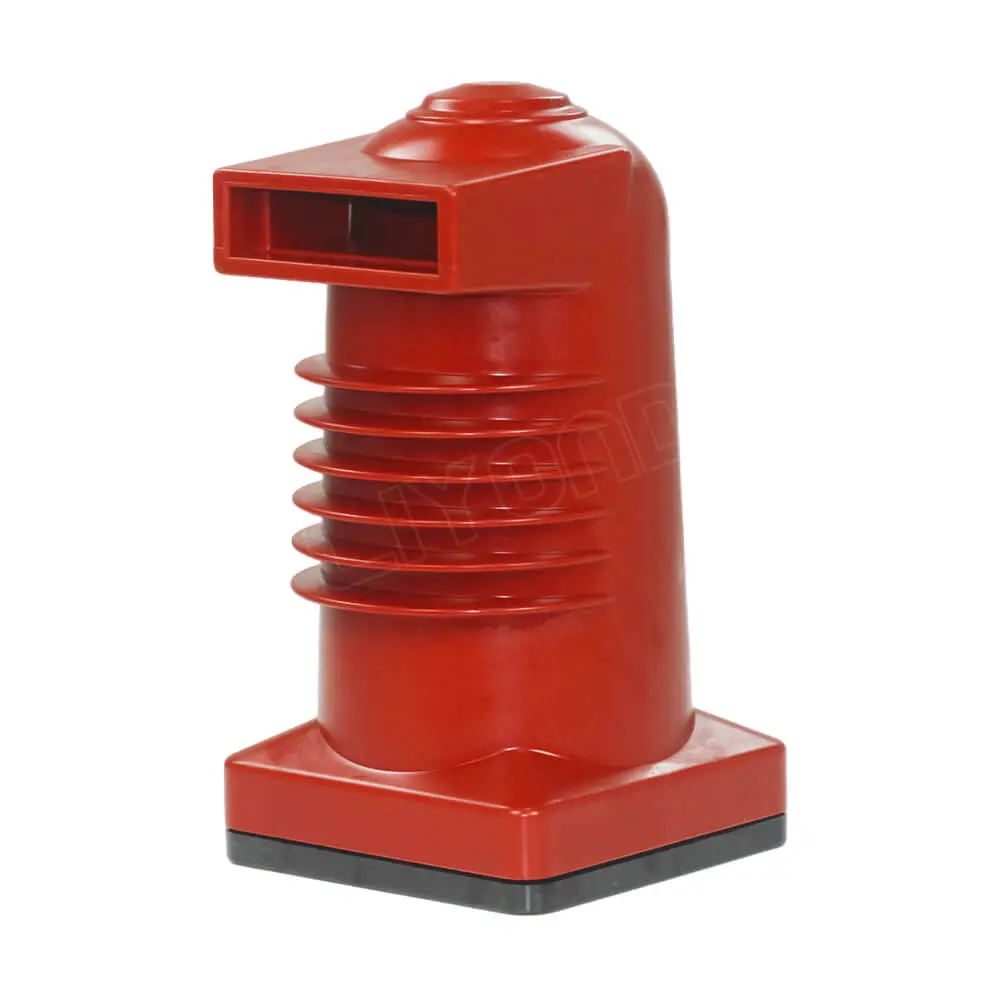

LY107 Indoor Switchgear Accessory 630A Shield Contact Box 24KV

The contact box is an epoxy resin APG process pressure gel molding structure, which is used in various handcart-type switch cabinets to play the role of insulation isolation and connection transition.

Get A Quote

LY107 Indoor Switchgear Accessory 630A Shield Contact Box 24KV

Electrical Products

Product Details
Dimension

Details of LY107 630A Shield Contact Box 24KV

Model Name	CH3-24/185 Contact Box
Brand	Liyond
Type	Contact Box
Application	High Voltage / Switchgear
Color	red
Product Certification	CE and ISO 9001:2000
Rated voltage	24 KV
Rated Current	≤630A
MOQ	10pcs
Packing	1. Each one is wrapped with plastic film 2. Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally
Loading port	Shanghai Port / Ningbo Port
Payment terms	L/C, T/T, Western Union
Delivery time	within 15 days, depends on order quantity
Additional	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification

Features:

1. The product adopts epoxy resin material

2. It gains high level of insulation, intensity and stability.

3. It provides different specifications based on the size of electric current for the user’s choice

4. The contact box is formed by epoxy with APG Technology

Applicable Work Environment:

1. Indoor installation.
2. Altitude: ≤1000m.
3. Ambient temperature: +40°C~5°C.
4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
5. NO gas, vapor or dust that may severely affect the insulation of contact box,no explosive or corrosive substance
