LMZ-10Q LMZJ1-10Q Busbar Type Casted Insulation Current Transformer 300A-5000A

LMZ- 10Q LMZJ1-10Q Busbar Type Casted Insulation Current Transformer 300A-5000A

• Specification
• Technical parameters

• LMZ- 10Q LMZJ1-10Q Busbar Type Casted Insulation Current Transformer 300A-5000A

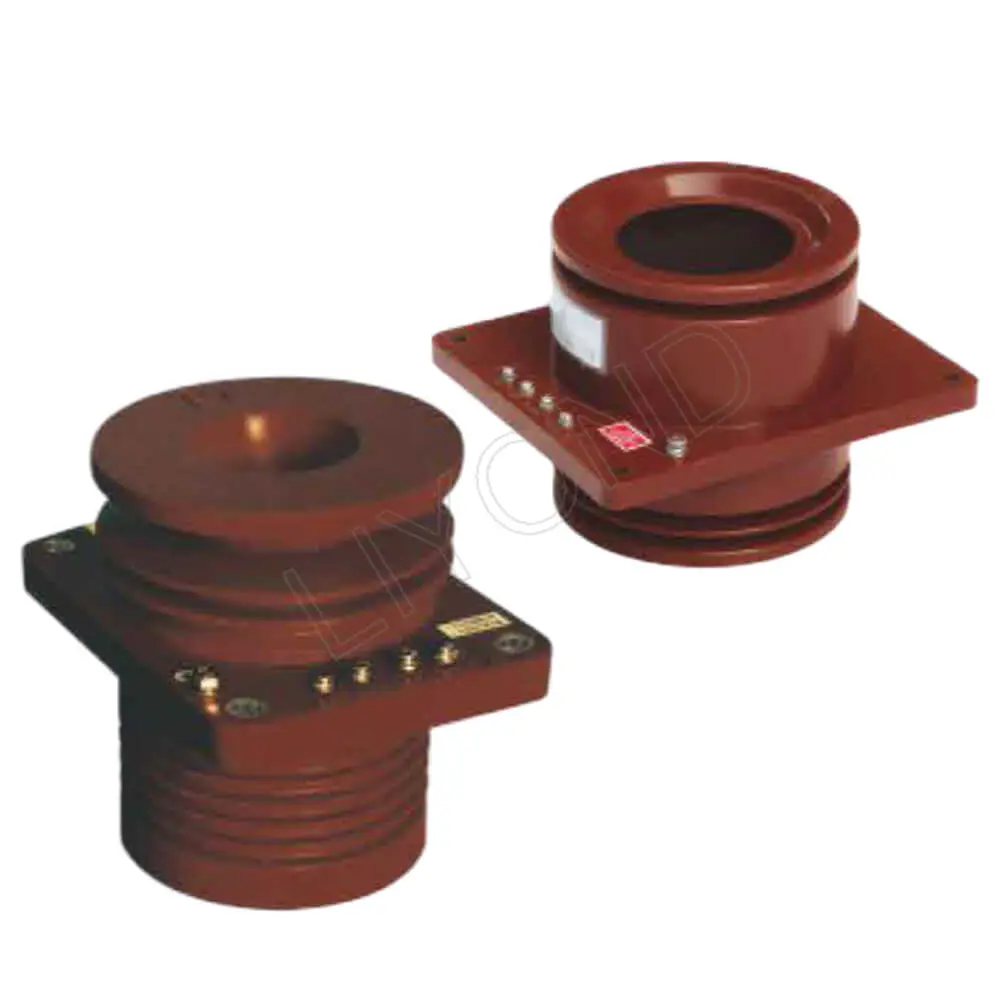

  The core of the LMZ-10Q current transformer is annular, made of high-quality cold-rolled silicon steel sheets and vacuum heat treated. The secondary coil is evenly wound around the core along the circumference. The body of the device is composed of two iron cores, which are symmetrically mounted on the metal support and positioned by the mold. The lead-out terminal blocks of the secondary coil are marked 1S1, 1S2, 2S1, and 2S2.
  This type of transformer is cast with epoxy resin mixed glue, and has an umbrella skirt on the outer wall to increase the specific creepage distance. It has excellent insulation performance and moisture-proof and mildew-proof properties. The product is suitable for humid tropical areas and condensation environments.

  Model meaning



• LMZ- 10Q LMZJ1-10Q Busbar Type Casted Insulation Current Transformer 300A-5000A

  Technical data



  Shape and installation dimensions
