Home/Low Voltage Switchgear Components/LV Switchgear Drawer Accessories/K-type Operating Handle for Mechanical Interlock K-type Operating Handle for Mechanical Interlock
The K-type operating handle is designed for low-voltage drawer switchgear. It is compatible with 8×8 or 10×10 square rods, suitable for different drawer depths or unit structures. It enables electrical interlocking operation through panel rotation. Compact, reliable, and easy to use, it is widely applied in systems like GCS and MNS.
Electrical ProductsModel & Specifications of K-type operating handle
| Model | Height (H, mm) | Application | Square Shaft Size |
| K6 | — | For 1/2 drawer | 8×8 mm |

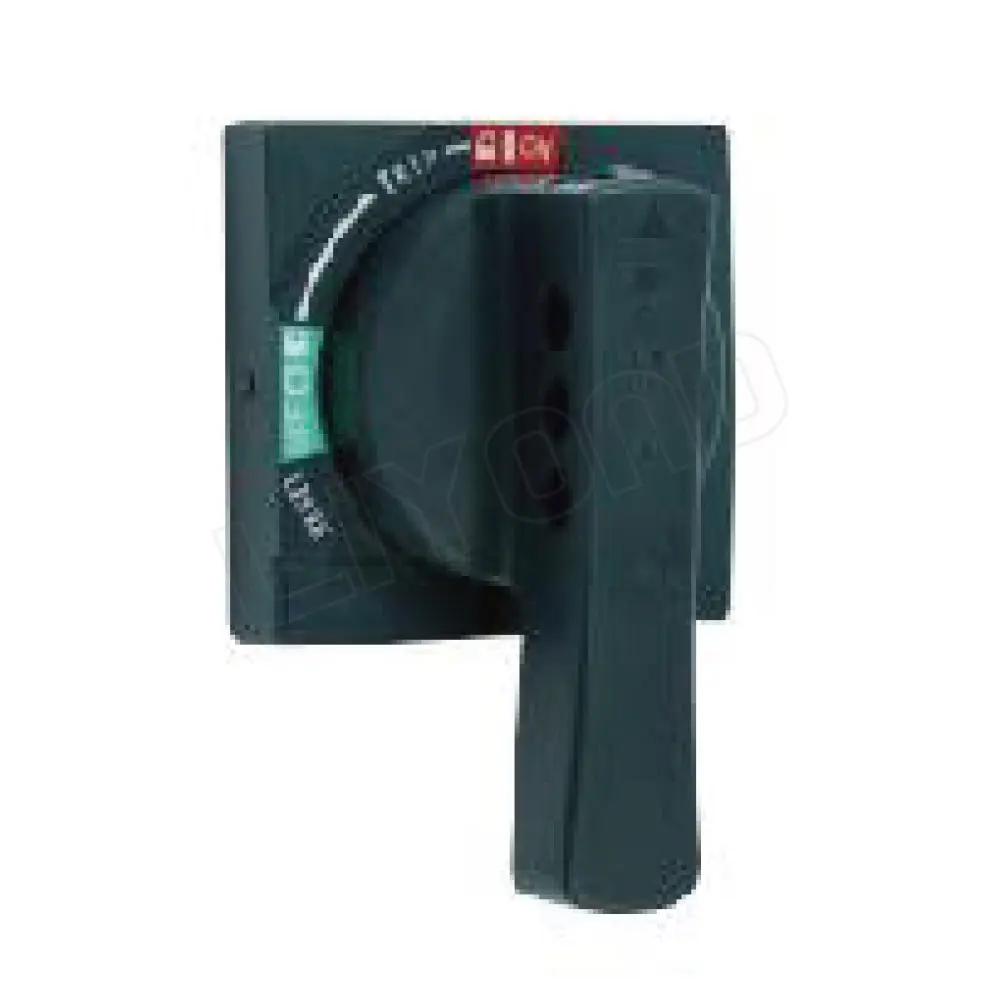

| K1 | H = 67 | For unit drawer | 8×8 mm |
| K3 | H = 92 | For unit drawer | 8×8 mm / 10×10 mm |
| K2 | H = 118 | For unit drawer | 8×8 mm / 10×10 mm |
Mounting Dimensions
Mounting hole spacing: 55 x 55 mm
Mounting hole diameter: 4 × Ø8.5 mm
Center hole diameter: Ø35 mm
