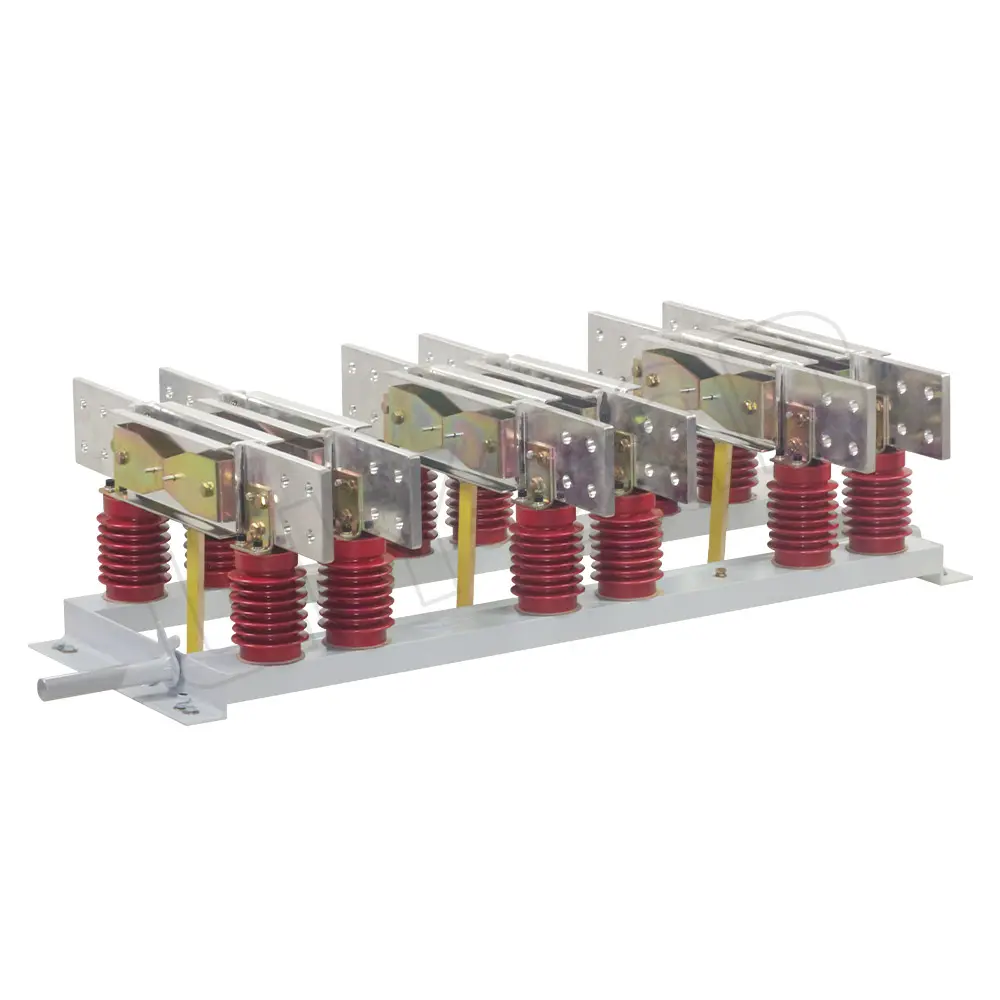

GN22-12 High Current Indoor High Voltage Three-phase Isolating Switch 6300A

Structural features of GN22-12 (C) (D) series indoor high-voltage disconnector

This product is a high-current isolating switch with a three-phase common bottom knife structure. It adopts a mechanical locking prototype with a two-step action of closing and contacting, achieving wear-free contact, small operating force, high contact pressure, and good dynamic thermal stability.

Use Conditions of GN22-12 high-voltage disconnector

1.Ambient air temperature: -15℃~40℃, daily average temperature ≦35℃.
2.Altitude ≦1000m.
3.Temperature conditions:
Daily average relative humidity ≦95%, daily average water vapor pressure ≦2.2kPa;
Monthly average relative humidity ≦90%, monthly average water vapor pressure ≦1.8kPa.
4.Earthquake intensity ≦8 degrees.
5.Places without fire, explosion danger, severe pollution, chemical corrosion and severe vibration.
Note: If the product use conditions exceed the above provisions, the user shall negotiate and determine with the company.

Application Areas:
Switchgear Systems: Used in metal-enclosed switchgear for isolating and protecting electrical circuits.
Power Distribution Equipment: Ideal for use in power substations, ensuring safe isolation of the circuit during maintenance.
Electric Power Plants: Utilized in indoor applications where high-voltage electrical isolation is required for safe operations and maintenance.
Transformer Stations: Applied in transformer substations for safe isolation of transformer circuits.
Renewable Energy Installations: Can be used in energy storage or renewable energy systems like solar and wind farms for protection and isolation during maintenance.

Technical Parameters of GN22-12 high-voltage disconnector

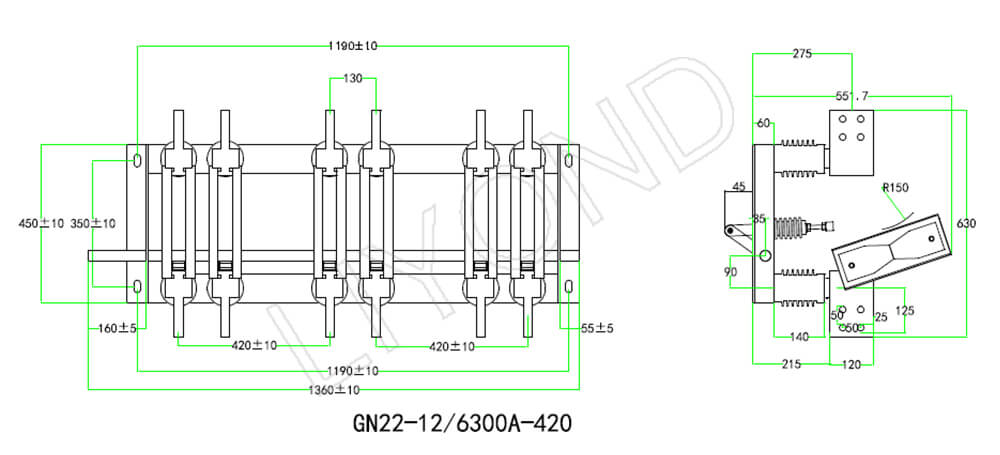

Dimensions of GN22-12 high-voltage disconnector

Ordering instructions
●When ordering this switch, please indicate the model specification, rated voltage, rated current and other technical data.
●If there are special requirements, you can negotiate our to solve them.
