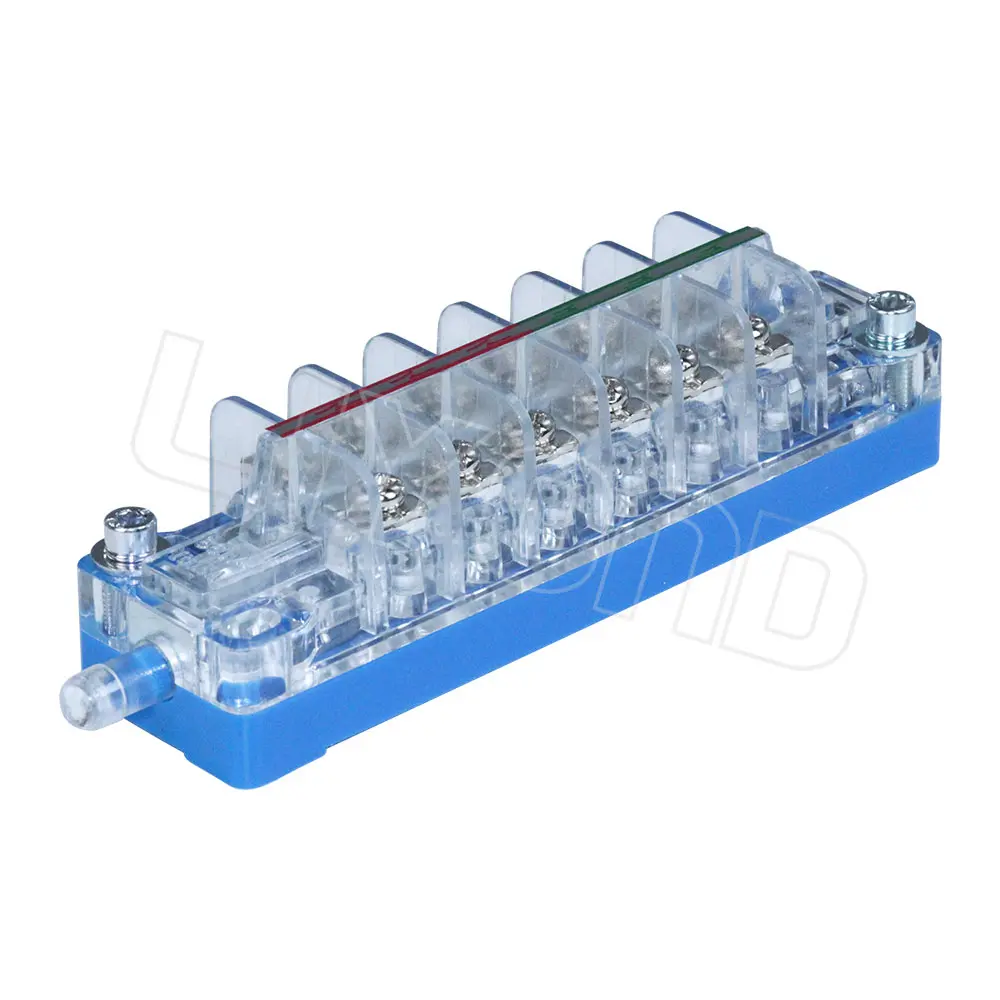

FK10-II-33 Electric Pilot Contact 3NO3NC For HV Electrical Switch

Item No: FK10-II-33

FK10 series aux switch applies to the HV operating mechanisms switching on, switching off, interlock, and controlling of signal circuit. It also applies to HV switchgears, and can be used as transfer switch or cubicle switch.

Get A Quote

FK10-II-33 Electric Pilot Contact 3NO3NC For HV Electrical Switch

Electrical Products

Technical Parameters
Use Conditions
Operative Parameters

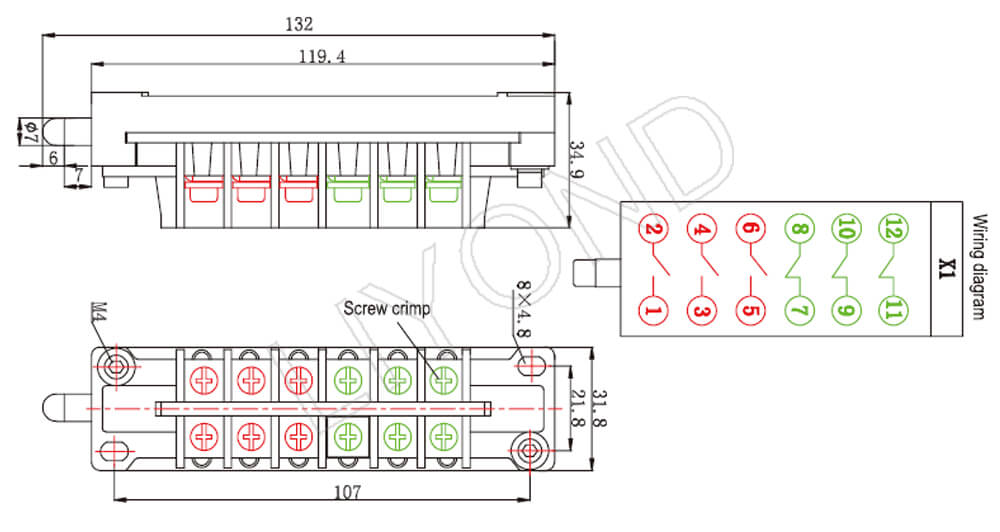

Dimensions

Technical Parameters of FK10-II-33 Electric Pilot Contact 3NO3NC Auxiliary Switch

1. Electrical Load: AC 80V, 6A; AC 220V, 10A; AC 240V, 6A; AC 415V, 4A; AC 500V, 3A; AC 660V, 2A.
2. Rated working voltage: AC 660V
3. Rated working current: 0.4A
4. Rated isolation voltage: 690V
5. Rated frequency: 50 Hz
6. Rated Current: 15 A

Working Conditions of FK10-II-33 Electric Pilot Contact 3NO3NC Auxiliary Switch

1. Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%. Saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4. The acceleration is not greater than 15m/ square seconds;
5. The air is not significantly affected by dust, smoke, corrosive and flammable gas, steam or salt fog contamination.
