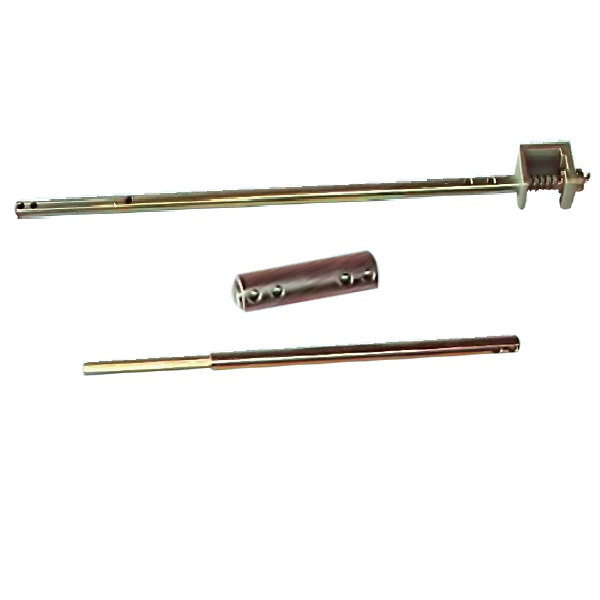

Home/Switchgear Accessories/Interlocking Mechanism & Device/Earthing Switch Operation Mechanism interlock device 5XS.363.010.3 Earthing Switch Operation Mechanism interlock device 5XS.363.010.3
Electrical ProductsDescription of interlock device 5XS.363.010.3
Summary
1.Application: match with earthing switch,apply on switchgear
2.Material:Steel with zinc plating
3.Standard: Chinese national standard – GB standard (equal to IEC standard)
Characteristic
This interlock device improved based on 5XS.363.010,the user can realize the function of anti-lockout with no need to change any size of the cabinet(earthing switch can’t operate when the back door open,the same as 5XS.363.010.1).
This interlock device is more reliable and strength than 5XS.363.010.1,it can maximize the reduction of damage to components when the staff operating error.If customers need the back door emergency unlock function,please remark.
Drawing of interlock device 5XS.363.010.3
| No. | Item | Code | Qty | Remark |
| 1 | Front shaft | 8YF.098.184 | 1 | |
| 2 | Connecting sleeve | 8YF.098.186 | 1 | |
| 3 | Back shaft | 8YF.098.185 | 1 | L=841 for 1500 depth cabinetL=1001 for 1660 depth cabinet |
| 4 | Connecting rod assembly | 5YF.223.030.1~3 | 1 | |
| 5 | Interlocking support | 5YF.098.160 | 1 | |
| 6 | Pressure spring | 8YF.099.141 | 1 | |
| 7 | T shape lock sleeve | 8YF.098.187 | 1 |
