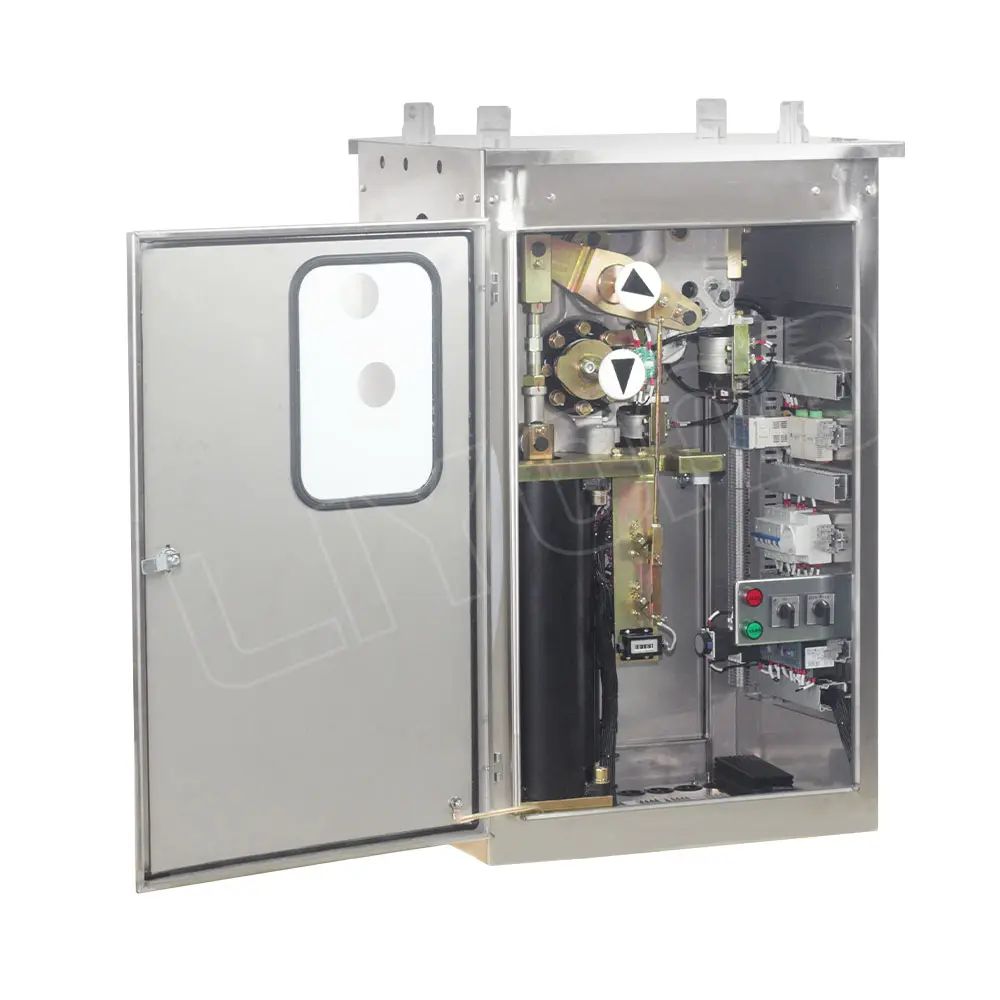

CT118 Spring Operating Mechanism For 110 kV/220 kV SF6 Circuit Breaker

Technical Features of CT118 Spring Operating Mechanism For 110 kV/220 kV SF6 Circuit Breaker

1.If compared with the hydraulic mechanism, the spring charged operating mechanism features a simple structure, reliable performance and low maintenance cost.
2.The high strength aluminum alloy frame and the integral structure feature a high rigidity, which is shaped by N/C machining center with high precision.
3.The components adopt high quality alloy steel and by the advanced heat treatment, the components feature a high strength, high toughness, goog reliability , stable mechanical performance and long mechanical endurance.
4.The structure of the operating mechanism is clear and distinct so that it is convenience in the installation and maintenance.

Technical Parameters of CT118 Spring Operating Mechanism For 110 kV/220 kV SF6 Circuit Breaker

Condition of Service of CT118 Spring Operating Mechanism For 110 kV/220 kV SF6 Circuit Breaker

1.Place of Service: indoor and outdoor;
2.Ambient Air Temperature: max. +40℃, min. -40℃;
3.Relative Humidity: daily averaged RH ≯ 95%, monthly averaged RH ≯ 90% (25℃);
4.Vapor Pressure: daily averaged ≯ 2.2 x 10-3 MPa; monthly averaged ≯ 1.8 x 10-3 MPa;
5.Air Contamination: Class III;
6.Earthquake Intensity: Degree 9
7.Neither serious corrosion nor frequent tense vibration is existed.

Dimensions of CT118 Spring Operating Mechanism For 110 kV/220 kV SF6 Circuit Breaker

Order Notes of CT118 Spring Operating Mechanism For 110 kV/220 kV SF6 Circuit Breaker

1.The description and model of the circuit breaker, rated voltage, rated current and rated interrupting current should be contained in the purchase order
2.The rated voltage of the closing coil and breaking coil of the operating mechanism.
3.The rated voltage of the motor.
4.Any other special requirement.
