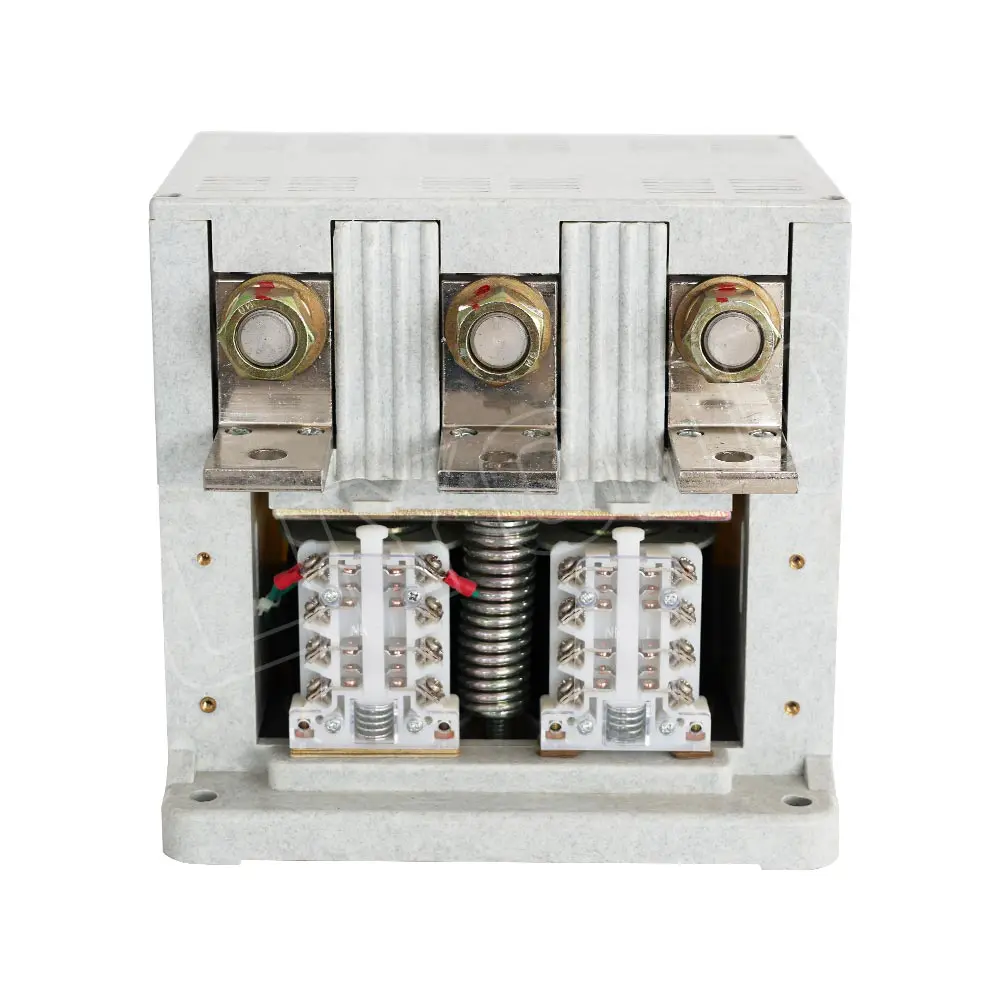

CKJ20-630A, 800A AC Low Voltage 1140V Vacuum Contactor

CKJ20-630A, 800A AC Low Voltage 1140V Vacuum Contactor

• Specification
• Technical Parameters

• CKJ20-630A, 800A AC Low Voltage 1140V Vacuum Contactor

  Item No: CKJ20-630(800)

  Application

  CKJ20 series of vacuum contactors main used for AC 50-60hz, main circuit rated voltage 1.6kv below the rated current from 630A-1000A power network systems for remote making and breaking and frequent starting and control of AC motors, transformers and capacitor banks and other occasions.

  Advantages: good compatibility, stable and reliable performance, free maintenance and long service life, is old-fashioned contactor is the ideal substitute of products.

  Normal working and installation conditions

  Attitude no more than 2000m, Ambient temperature within -5℃~+40℃, and the average temperature no more than +35℃ in 24hours.



• CKJ20-630A, 800A AC Low Voltage 1140V Vacuum Contactor

  Specification

  Model	CKJ20-630	CKJ20-800
  Main circuit Rated vol.(V)	1140	1140
  Main circuit Rated current.(A)	630	800
  Main circuit connection capability (A/100 times)	6000	6000
  Main circuit on and off capability (A/10 times)	4800	5000
  Limit breaking capacity  (A/3 times)	6000	6000
  Electrical life AC3 (10,000 times)	60	60
  Electrical life AC4 (10,000 times)	6	6
  Mechanical life (10,000 times)	300	300
  Rated operating frequency  AC3 (times/h)	600	600
  Rated operating frequency  AC4 (times/h)	120	120
  Short time operation frequency  times/h (20s)	2000	2000
  Contact Open distance (mm)	2.5 ±0.3	2.5 ±0.3
  Overtravel (mm)	≥1	≥1

  CKJ20-630A, 800A AC L.V Vacuum Contactor drawing
