Home/Vacuum Circuit Breaker Contact/Tulip contact/Circuit Breaker Copper Spring Conductive Contacts LYA113 Circuit Breaker Copper Spring Conductive Contacts LYA113
The LYA113 circuit breaker tulip contacts are used for primary conduction of high voltage vacuum circuit breaker, middle cabinet, handcart, etc. On the basis of digesting and absorbing ABB product technology, GC series primary movable contacts have been successfully developed by ourselves to replace all domestic products of the same kind imported. Widely used in ZN63 (VS1, VB1) handcart circuit breakers. Its performance meets the requirements of GB3906-1991 < 3-35KV AC metal-enclosed switchgear.
Structures: contact, support frame, spring, support frame is annular, a number of contacts are assembled on the support frame to form an annular body.
Electrical ProductsSpecification of LYA113 Circuit Breaker Tulip Contact
| Rated current | 2000A |
| Material | copper with thick silver plating, stainless steel with magnetic free |
| Contact blade | 48pcs |
| Type | Bundled |
| Application | vacuum circuit breaker |
| The minimum quantity | 10pcs |
| Payment terms | T/T, L/C, Western Union |
Advantages:
1. Made of high 99.9% pure T2 copper tube, customize the thickness of silver coating
2. High quality non-magnetic Ring-shaped stainless spring with average pressure, avoid the eddy;
3. 3mm thickness of T2 copper..We can design and manufacture according to customers drawings and requirement.
4. Can customize specific high thickness silver coating, guarantee the thickness of silver coating, high abrasion resistance;
5. Discoloring proof treatment, avoid the dropping caused by silver coating oxidation;
6. We are ISO9001:2000, ISO14001:2004 certificated company, having strict quality processing according to ABB requirements.
We will give you best quality and price!

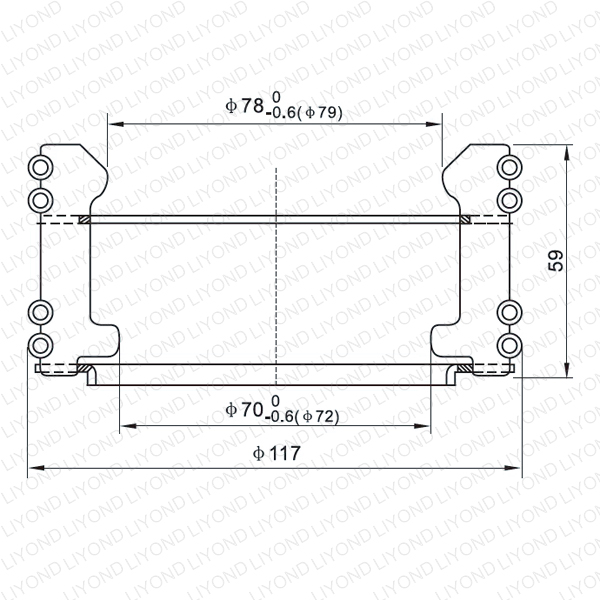

Drawing of LYA113 Circuit Breaker Tulip Contact
About us:
We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!
