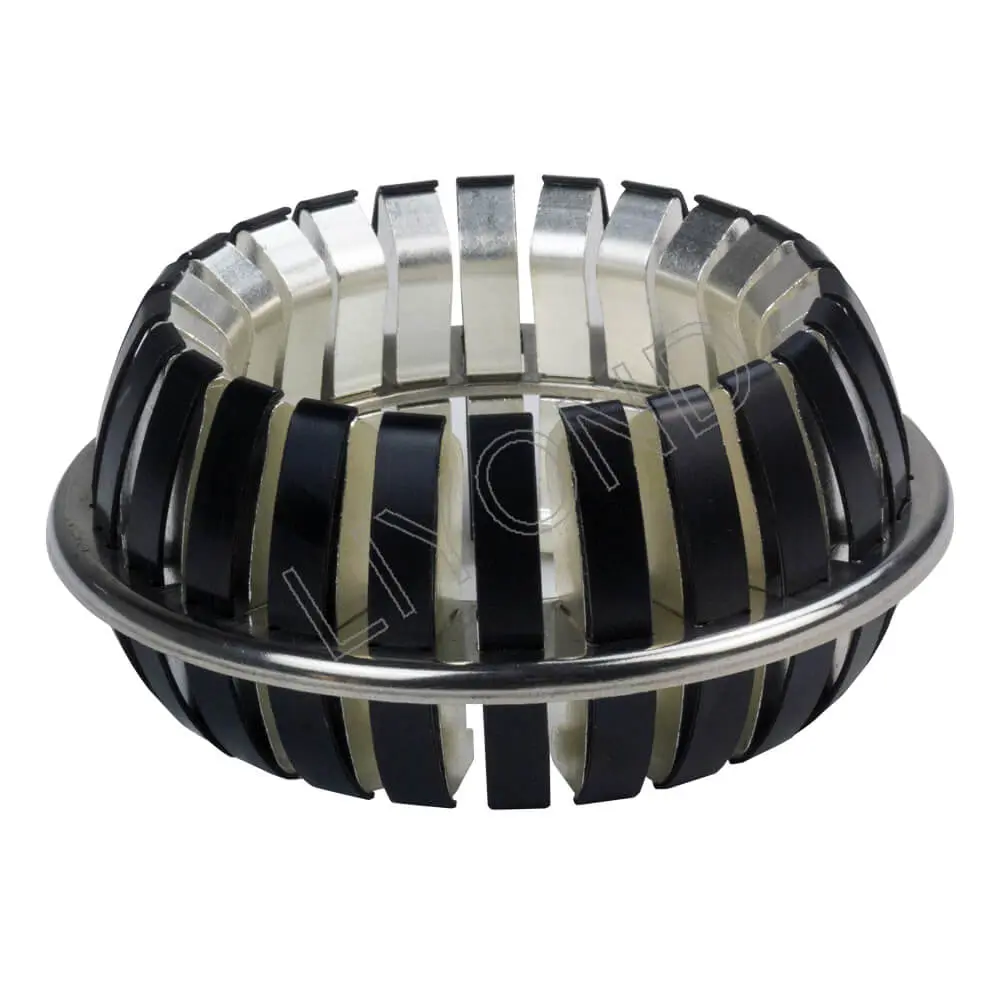

2500A Spherical Torx Contacts For Vacuum Circuit Breaker LYA205

The ball shape tulip contact is a special shape of tulip contact, and its contact surface is spherical. Compared with traditional tulip contacts, ball shape tulip contacts have a larger contact area and can provide better electrical connection and conductive performance. It is mainly used in high-voltage switchgear, especially in high-current and high-voltage environments, to provide a more stable and reliable electrical connection.

Get A Quote

2500A Spherical Torx Contacts For Vacuum Circuit Breaker LYA205

Electrical Products

Features
Details
Dimensions
About us

Features of 2500A Spherical Torx Contacts For Vacuum Circuit Breaker LYA205

1. Spring with paint processing to prevent oxidizes and rust

2. Brush plating thick silver,strong power of anti-wear

3. Prevent discoloration treatment, avoid the silver layer oxidation and shedding

4. The Application of Aluminum protective casing is prevent deformation and shedding of spring.

5.Reference size of fixed contact insertion depth: 22±2 mm

Details of 2500A Spherical Torx Contacts For Vacuum Circuit Breaker LYA205

Rated current	2500A
Contact blade	24sheets
Material	T2 Red Copper with silver plating and lacquer paint
Type	Round
Delivery time	15days
The minimum quantity	10pcs
Payment terms	T/T, L/C, Western Union

Dimensions of 2500A Spherical Torx Contacts For Vacuum Circuit Breaker LYA205

About us

We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, ball shape Tulip contact, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN8540.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!

We will give you best quality and price!
