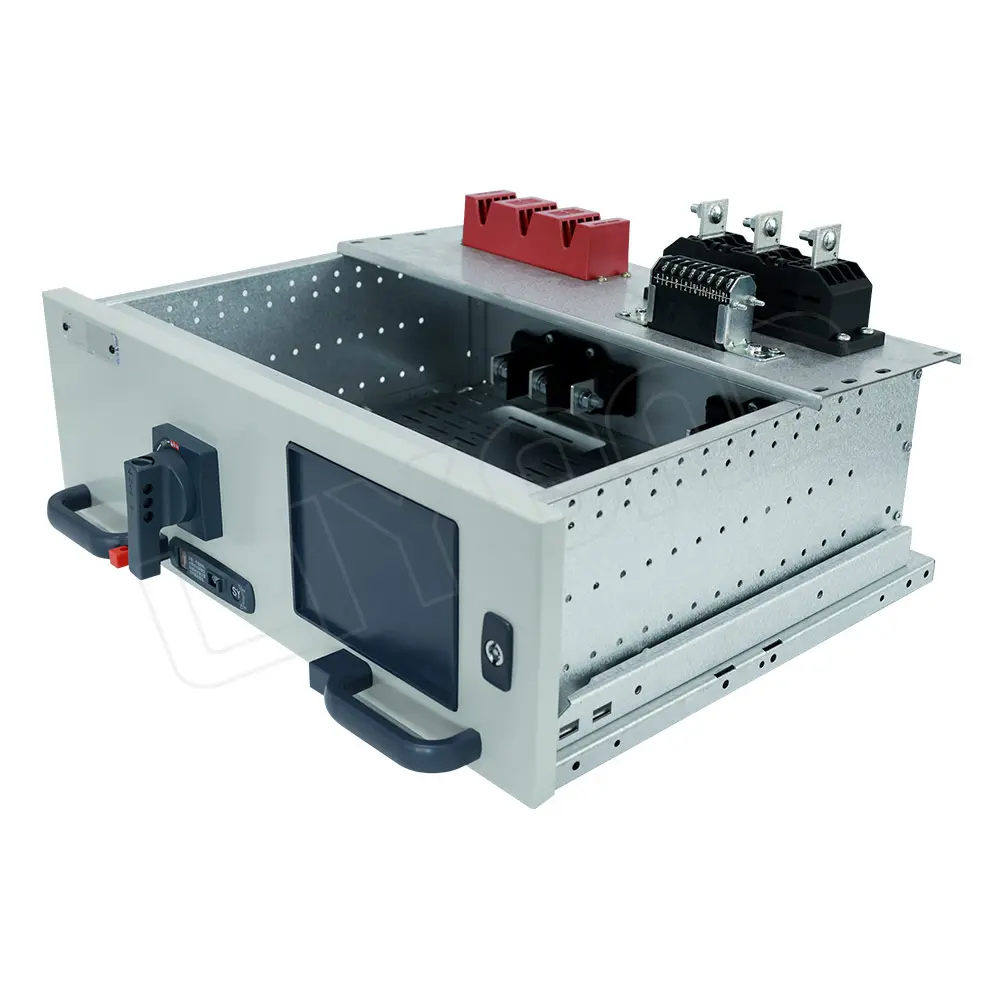

1/2 Unit 1 Drawer 8PT Low Voltage Switchgear Drawer

Key Features of Low Voltage Switchgear Drawer

Modular & Withdrawable Design: Allows safe removal and replacement without affecting other modules.

High Safety Standards: Equipped with interlocking mechanisms to prevent accidental contact with live parts.

Reliable Performance: Handles high short-circuit currents and frequent operation cycles with ease.

Maintenance-Friendly: Tool-free drawer removal and clear operating status indicators.

Customizable Options: Compatible with various breaker types, busbar arrangements, and protection devices.

Technical Highlights:

Rated Voltage: 380–415V AC
Rated Current: 630–1250A
Short-Circuit Breaking Capacity: 25–50kA
Poles: 3P / 4P
Protection Level: IP30–IP54
Operating Environment: Indoor, floor-mounted switchgear

Applications:
Ideal for industrial plants, commercial buildings, power distribution centers, and renewable energy systems, the 8PT switchgear drawer ensures safe and reliable power management in all settings.
