GW4 Series Outdoor AC Disconnector High Voltage Isolation switch 12kV 40.5kV

Structure feature of GW4 Series Outdoor AC Disconnector

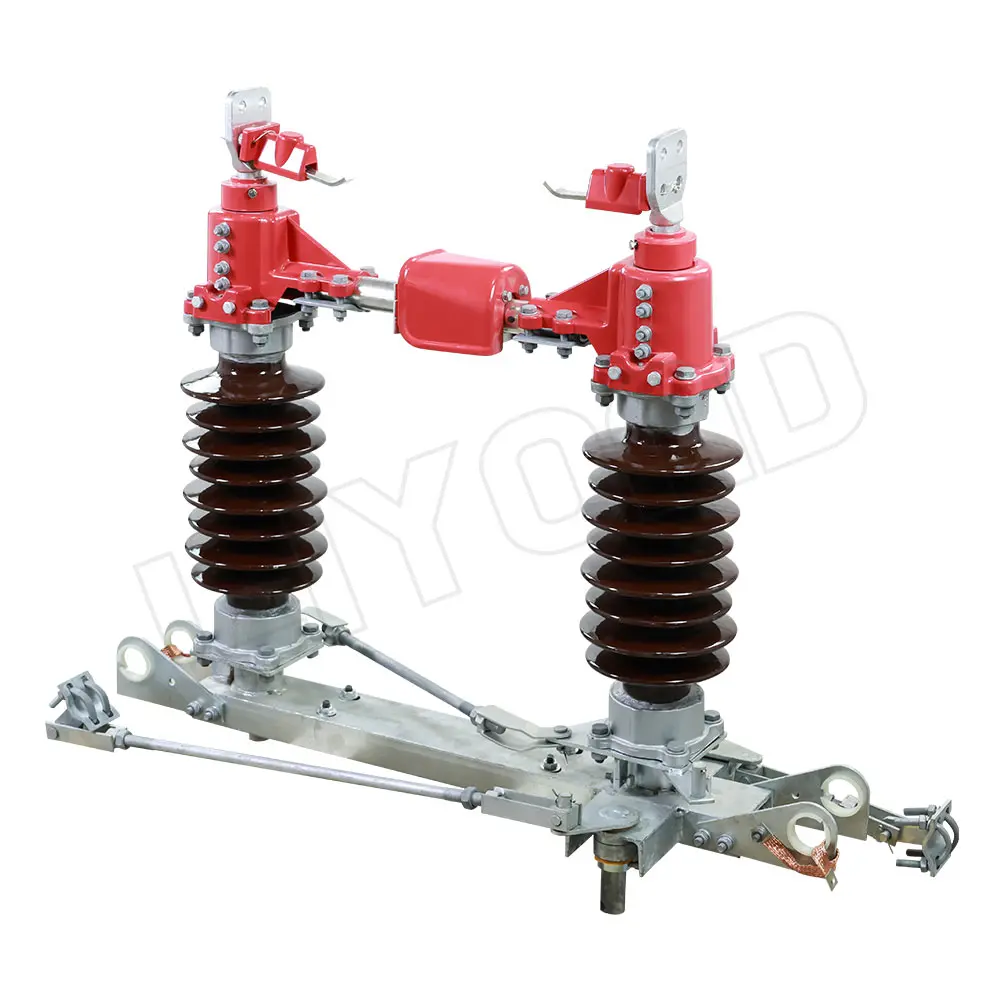

This disconnect switch consists of pedestal, insulating brace, electric material and operating mechanism. There are two braces on each pole, and electric blade is installed on the top of each brace and the connection point of the two blades is between the two braces. With the driving of operating mechanism, the two blades can rotate horizontally ninety degrees to close. We can connect three single-pole disconnect switches into a linkage three-pole switch through interlink rod. This disconnect switch can be matched with CS11 type or CS17 type manual mechanism, thereinto, CS17 be used in disconnect switch with earthing ftting.
(motor mechanism can be installed according to user’s requirement), reasonable structure, flexible operating; convenient installation, able to use single-pole or three-pole; wide distance of contact, safe and reliable insulating. The earthing type is flexible according to user’s requirement, single earthing dual earthing or without earthing can be chosen.

Ambient Conditions:

1. Altitude: ≤3000m;
2. Ambient temperature: -25℃~+40℃;
3. Wind speed: ≤35m/s;
4. Pollution degree: ≤III;
5. Earthquake intensity: ≤8 degree;
6. Applicable occasions should free from inflammable, explosives, caustic gas.

Technical parameters of GW4 Outdoor AC Disconnector

Dimensional drawing reference of GW4 disconnector

Note: Products with special requirements, specifications and dimensions that need to be improved can be designed and manufactured according to user requirements.
