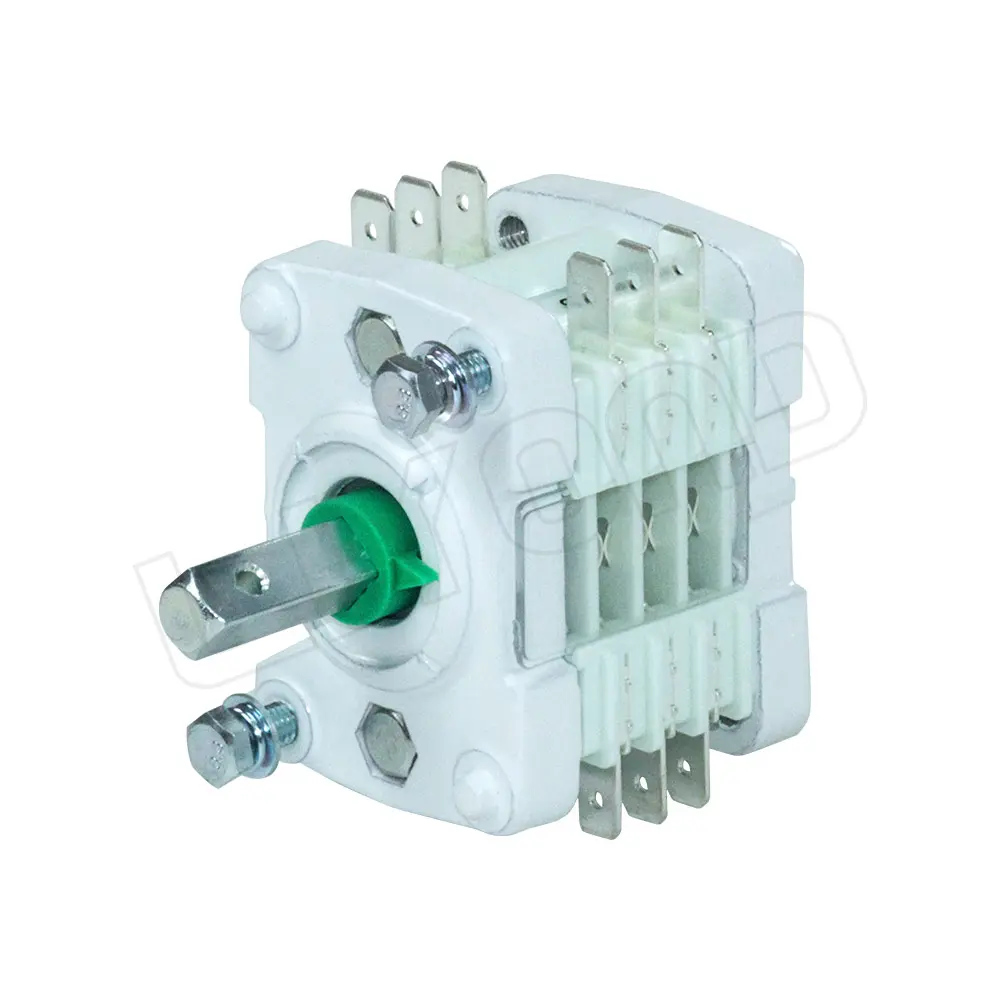

F10-6 Circuit Breaker Control Switch 3NO3NC

F10-6 Circuit Breaker Control Switch 3NO3NC

• Specification
• Drawing

• F10-6 Circuit Breaker Control Switch 3NO3NC

  F10 series auxiliary switches are mainly used as opening and closing signal control and interlocking protection contacts in the control circuits of various high-voltage circuit breakers and high-voltage isolating switch electric operating mechanisms. They can also be used as transfer switches and combination switches.

  Features:

  1. Self-powered flat sliding contact is adopted, and the moving contact consists of two contact pieces, without fixed gap and contact seat, which can make the contact pressure of each pair of contacts consistent.

  2. The stacked structure is adopted, and the number of contacts can be increased or decreased as needed.

  3. Small size, simple structure, flexible operation, safe and reliable.

  Working Conditions

  1. Ambient Temperature (-40℃≤ t ≤40℃)

  2. Height above Sea Level (h≤3000m)

  3. Monthly mean relative air humidity ≤ 90%, daily mean relative air humidity ≤ 95%

  4. Oscillatory acceleration 15m/s²

  5. Situation of no sharp pounding, no explosion risk, no inductive dust, no air destroying, insulators or corroding metal, and so on.

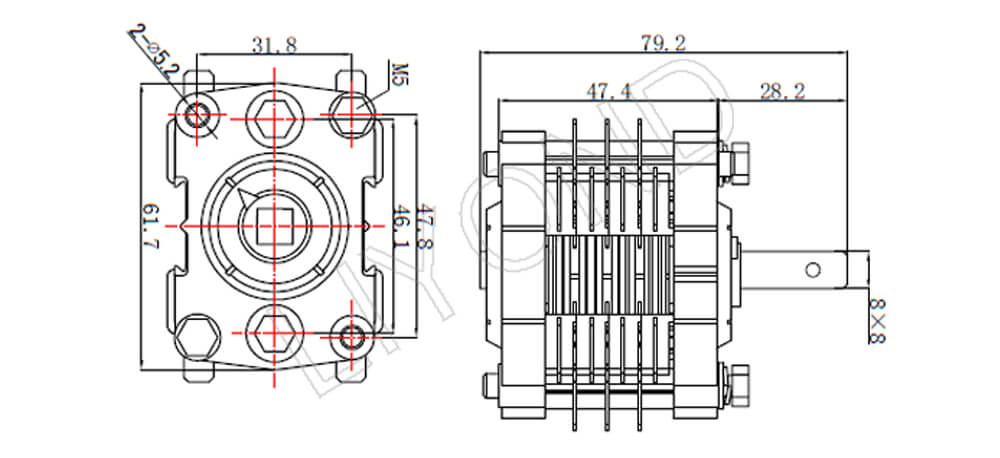

• F10-6 External Dimensions
