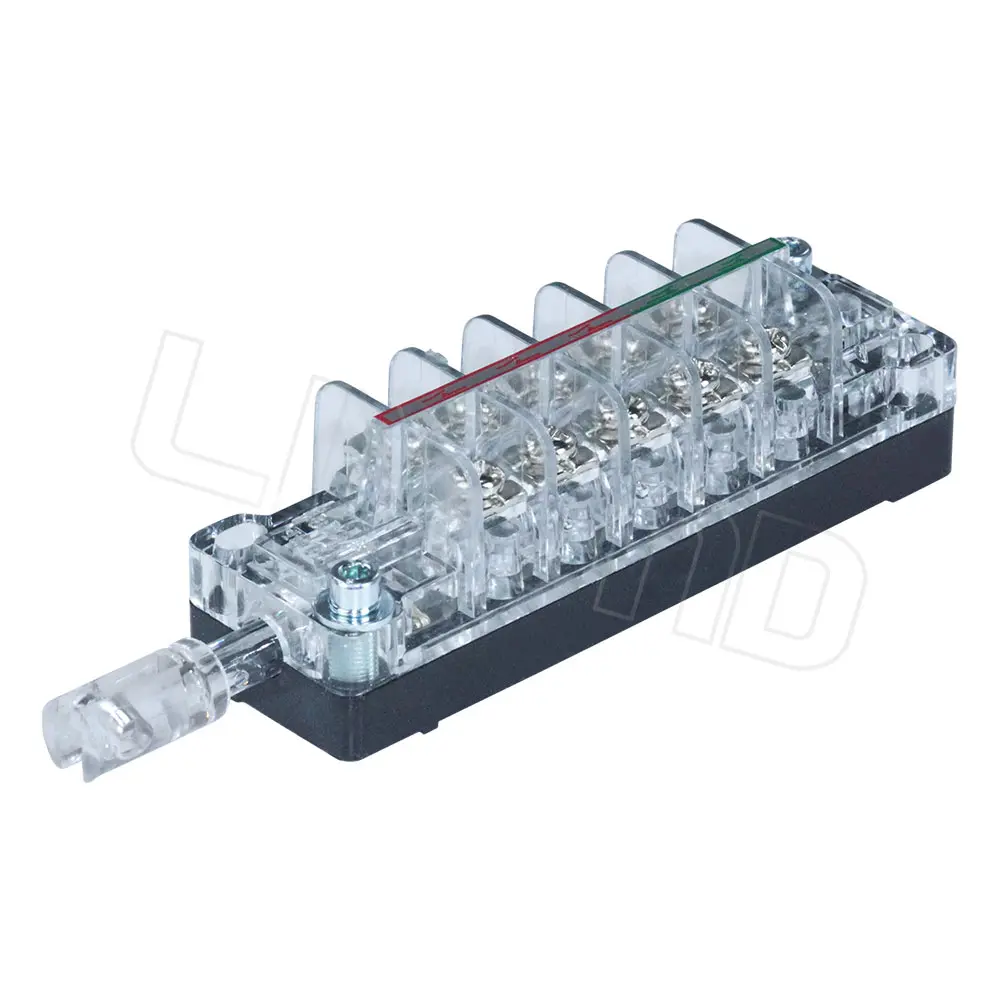

FK10-I-32 Distribution Electrical Auxiliary Contact 3NO 2NC For Vacuum Contactor

Item No: FK10-I-32

FK10-I-32 auxiliary contact 3NO 2NC for vacuum contactor is applied to the HV operating mechanisms switching on, switching off, interlock, and controlling of signal circuit. It also applies to HV switchgears, and can be used as transfer switch or cubicle switch.

Get A Quote

FK10-I-32 Distribution Electrical Auxiliary Contact 3NO 2NC For Vacuum Contactor

Electrical Products

Technical Parameters
Use Conditions
Operative Parameters
Dimensions

Technical Parameters of FK10-I-32 Distribution Electrical Auxiliary Contact 3NO 2NC

1. Electrical Load: AC 80V, 6A; AC 220V, 10A; AC 240V, 6A; AC 415V, 4A; AC 500V, 3A; AC 660V, 2A.
2. Rated working voltage: AC 660V
3. Rated working current: 0.4A
4. Rated isolation voltage: 690V
5. Rated frequency: 50 Hz
6. Rated Current: 15 A

Working Conditions of FK10-I-32 Distribution Electrical Auxiliary Contact 3NO 2NC

1. Ambient temperature: not higher than +40 °C, not less than -40°C
2. Altitude: not exceed 2000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%. Saturated vapor pressure daily average of not more than 2.2 × 103MPa, month average not more than 1.8 × 103MPa.
4.The acceleration is not greater than 15m/ square seconds;
5.The air is not significantly affected by dust, smoke, corrosive and flammable gas, steam or salt fog contamination.
