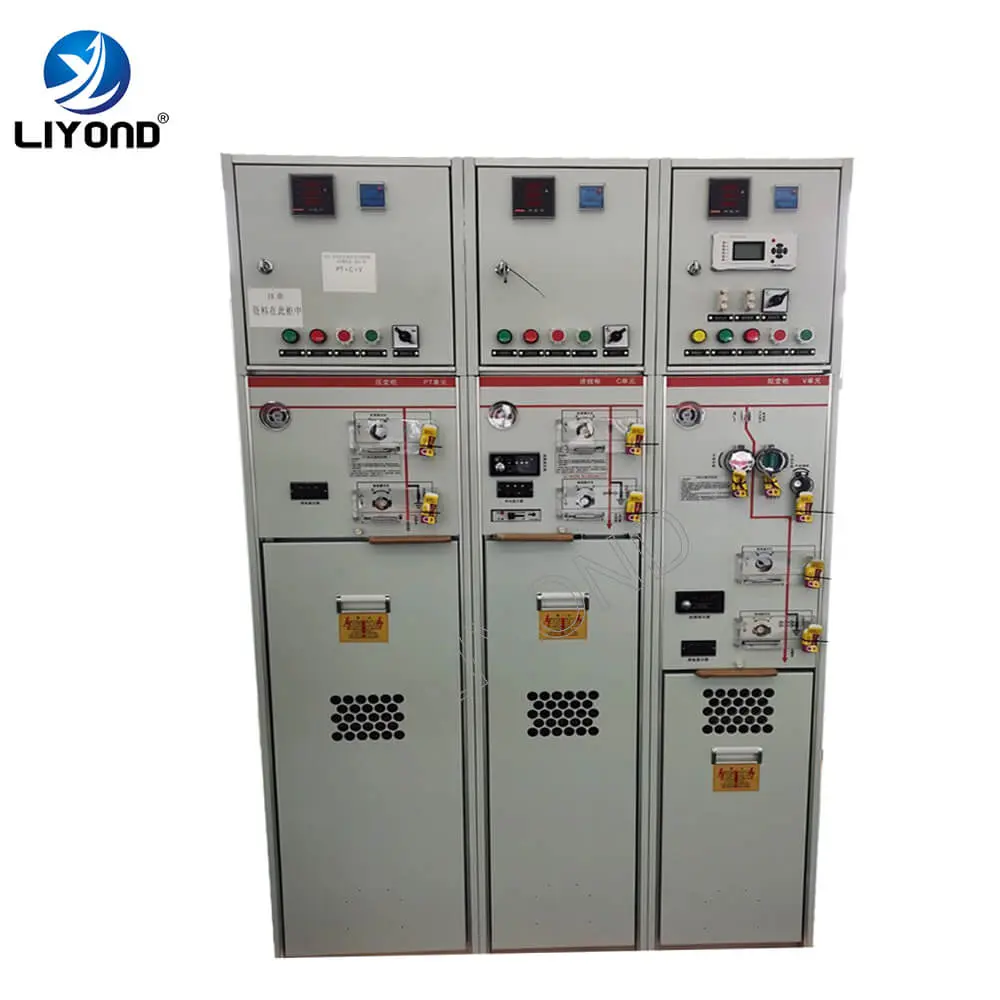

XGN15-12 indoor AC high-voltage sf6 ring network switchgear is a new generation of sf6 load break switch as switch and air insulation for the whole cabinet, suitable for distribution automation, compact and expandable. The closed switchgear has the characteristics of high grade, miniaturization, complete parameters, low price and less maintenance.
This product has a three-station arc extinguishing chamber of “close-open-ground”, equipped with “five-proof” function (to prevent the main switch from opening and closing with load; to prevent from entering the live interval by mistake; to prevent the main switch from wrongly opening and closing; Line; prevent the grounding switch from transmitting electricity at the grounding position), reliable interlocking, high fracture insulation strength, large creepage design, the outlet end is protected by a pressure equalizing cover, special dynamic seal and fixed seal design, plus advanced technical performance and The light and flexible assembly solution can fully meet the ever-changing requirements of the market. It is a new generation of high-voltage switchgear equipped with urban power grids.
This product is suitable for three-phase AC 10KV, 50Hz power system, as industrial and mining enterprises, high-rise buildings, residential quarters, pre-installed substations, etc. For distribution transformers.Load break switch arc extinguishing principle
SF6 gas has good arc-extinguishing performance. In order to quickly extinguish the arc, the switch will generate an arc when the moving and static contacts are just separated during the current-cutting process. It is long and continuously combined with SF6 gas, which is rapidly dissociated and cooled, and extinguished when the current crosses zero. The principle of permanent magnet rotating arc, small operating work, strong arc extinguishing ability, light contact burn, and prolong electrical life.Use environmental conditions
1. Altitude: no more than 1000m; (if there are special requirements, please specify when ordering)
2. Ambient temperature: -25°C~ +40°C;
3. Relative humidity: the daily average relative humidity is not more than 95%, and the monthly average relative humidity is not more than 90%;
4. Seismic strength: no more than 8 degrees;
5. There is no serious pollution in the surrounding air, such as dust, smoke, chemical corrosives, flammable gases, gasoline and salts. -
No Item Unit Data 1 Rated voltage kv 12 2 Rated lightning impulse withstand voltage phase to phase, phase to earth kv 75 between fractures kv 85 3 One minute power frequency withstand voltage phase to phase, phase to earth kv 42 between fractures kv 48 4 Rated frequency Hz 50/60 5 Rated current main busbar A 630 branch busbar A 630 6 Rated short-time withstand current main circuit kv 20/3s ground loop kv 20/3s 7 Rated peak withstand current KA 50 8 Transfer current A 1700 9 Protection class IP2X 10 Mechanical life of load switch time 2000 11 Earthing switch mechanical life time 2000 -
Basic installation dimension drawing of ring network cabinet
-
The user must provide the following technical information when ordering:
1. Main circuit wiring scheme number and main circuit diagram, arrangement diagram and floor plan;
2. Schematic diagram of secondary circuit wiring;
3. Models, specifications and quantities of all electrical components in the switchgear;
4. The material, specification and quantity of the main busbar and branch busbar of the switchgear;
5. If you need to set up a low-voltage box, it should be explained;
6. When the switchgear is used in special environmental conditions, it should be explained;
7. When other or excess accessories and spare parts are needed, the type and quantity should be proposed;
8. Operating mechanism form, electric or manual, current and voltage.
