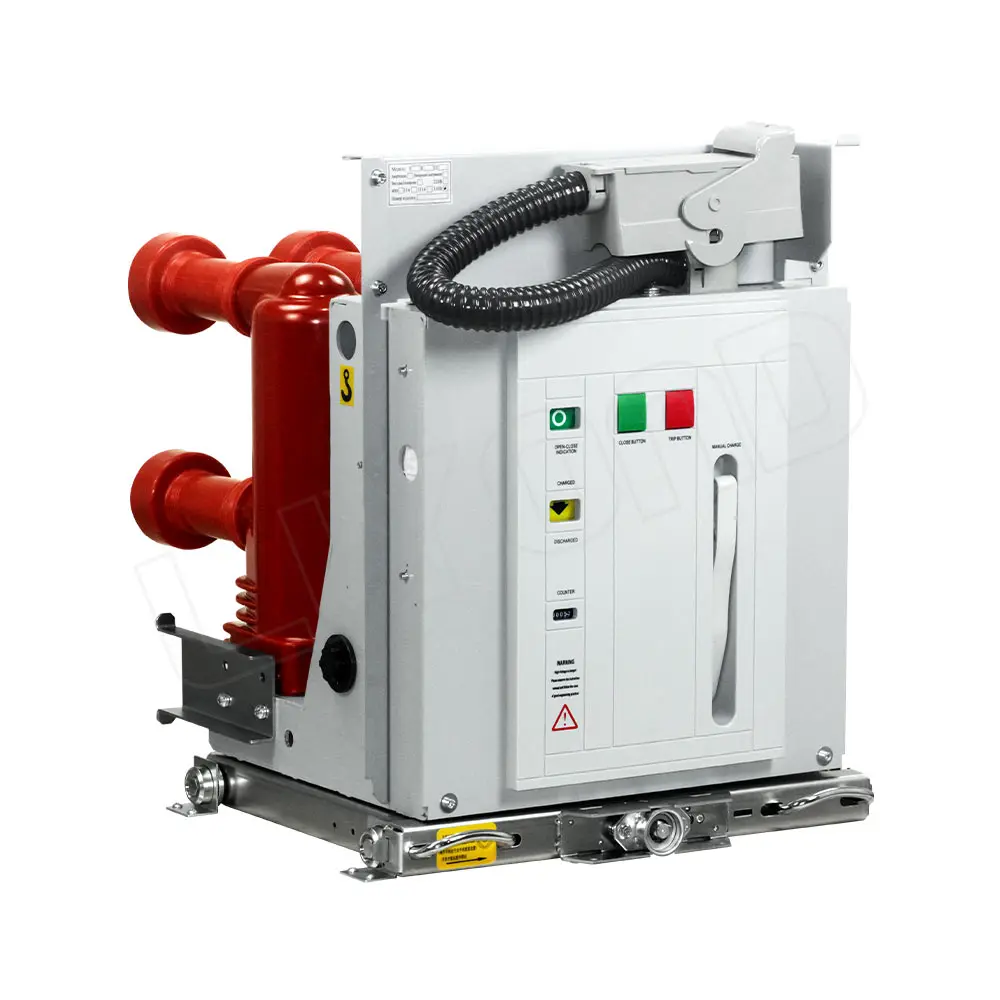

• VSG-12 Indoor High Voltage Handcart With Solid Sealed Pole Vacuum Circuit Breaker

  VSG-12 Indoor High Voltage Vacuum Circuit Breaker(abbr.: circuit breaker) is three-phrase A.C. 50Hz indoor of power supply distribution equipped with the rated voltage 12 KV. This product is in accordance with GB1984-2003( high voltage A.C. circuit breaker),JB3855-1996 (3.6-4.5KV indoor A.C. high voltage circuit breaker), DL403-2000(technical conditions for ordering of 12-40.5KV high voltage vacuum circuit breaker) and IEC standard 62271-100:2001( high volage A.C. Circuit breaker). It can be used for protecting and controlling equipment in the grid equipment and the dynamic design of industrial and mining enterprise .It is suitable for switching load and frequent operation with different property and with the capability of many times operations of breaking short-circuit current.



  Main Technical Parameters

  S/N	Name		Unit	Data
  *	Type		/	□Handcart Type with Embedded Pole □Handcart Type with Insulated Cylinder □Fixed type with Embedded Pole □Fixed type with Insulated Cylinder
  1	Rated voltage		kV	12
  2	Rated frequency		Hz	50/60
  3	Rated  insulating level	1min  power frequency withstand voltage	kv	42
  		Rated lightning impulse withstand voltage	kv	75
  4	Rated current		A	630	1250	1600	2000	2500	3150	4000
  5	Rated short circuit breaking current Rated thermal stability current(effective value)		kA	20
  				25	25
  				31.5	31.5	31.5	31.5	31.5
  						40	40	40	40	40
  										50
  6	Rated short circuit making current（peak value） Rated dynamic current(peak value)		kv	50
  				63	63
  				80	80	80	80	80
  						100	100	100	100	100
  										125
  7	Rated short circuit current breaking times		times	30,50
  8	Rated thermal stability time		s	4
  9	Rated operating sequence		times	0-0.3s-C0-180s-C
  10	Mechanism life		times	30000
  11	The breaking current of single rated capacitance bank		A	400
  12	The breaking current of rated back to back capacitance bank		S	4



•

  The outline drawing and installation dimension of fixed type 1A



  The outline drawing and installation dimension of fixed type 1B






  The outline drawing and installation dimension of fixed type 1C



  The outline drawing and installation dimension of fixed type 2A






  The outline drawing and installation dimension of fixed type 2B



  The outline drawing and installation dimension of fixed type 2C






  The outline drawing and installation dimension of fixed type2D



  Recommended matched dimension drawing of VSL type vacuum circuit breaker and switchgear(width:800mm)






  Recommended matched dimension drawing of VSL type vacuum circuit breaker and switchgear(width:1000mm)




  Drawing 1A :

  Rated current(A)	630	1250	1600
  Rated short circuit breaking current(A)	20, 25, 31.5	20, 31.5, 40	31.5, 40
  The primary distance between phrases is 210mm.

  Drawing 1B:

  Rated current(A)	1600	2000	1600
  Rated short circuit breaking current(A)	31.5, 40
  The primary distance between phrases is 275mm.

  Drawing 1C:

  Rated current(A)	2500	3150	4000
  Rated short circuit breaking current(A)	31.5, 40	40	40, 50
  The primary distance between phrases is 275mm.

  Drawing 2A :

  Rated current(A)	630	1250
  Rated short circuit breaking current(A)	20, 25, 31.5	20, 31.5, 40
  	Φ35	Φ49
  The mesh size between fixed and movable contacts should be not less than 15-25mm, the primary distance between phrases is 150mm.

  Drawing 2B:

  Rated current(A)	630	1250	1600
  Rated short circuit breaking current(A)	20, 25, 31.5	20, 31.5, 40	31.5, 40
  	Φ35	Φ49	Φ55
  The mesh size between fixed and movable contacts should be not less than 15-25mm, the primary distance between phrases is 210mm.

  Drawing 2C:

  Rated current(A)	630	1250	1600
  Rated short circuit breaking current(A)	20, 25, 31.5	20, 31.5, 40	31.5, 40
  Dimension of mating fixed contact(mm)	Φ35	Φ49	Φ55
  The mesh size between fixed and movable contacts should be not less than 15-25mm, the primary distance between phrases is 275mm.

  Drawing 2D:

  Rated current(A)	2500	3150	4000
  Rated short circuit breaking current(A)	31.5, 40	40	40,50
  Dimension of mating fixed contact(mm)	Φ109
  The mesh size between fixed and movable contacts should be not less than 15-25mm, the primary distance between phrases is 275mm.
