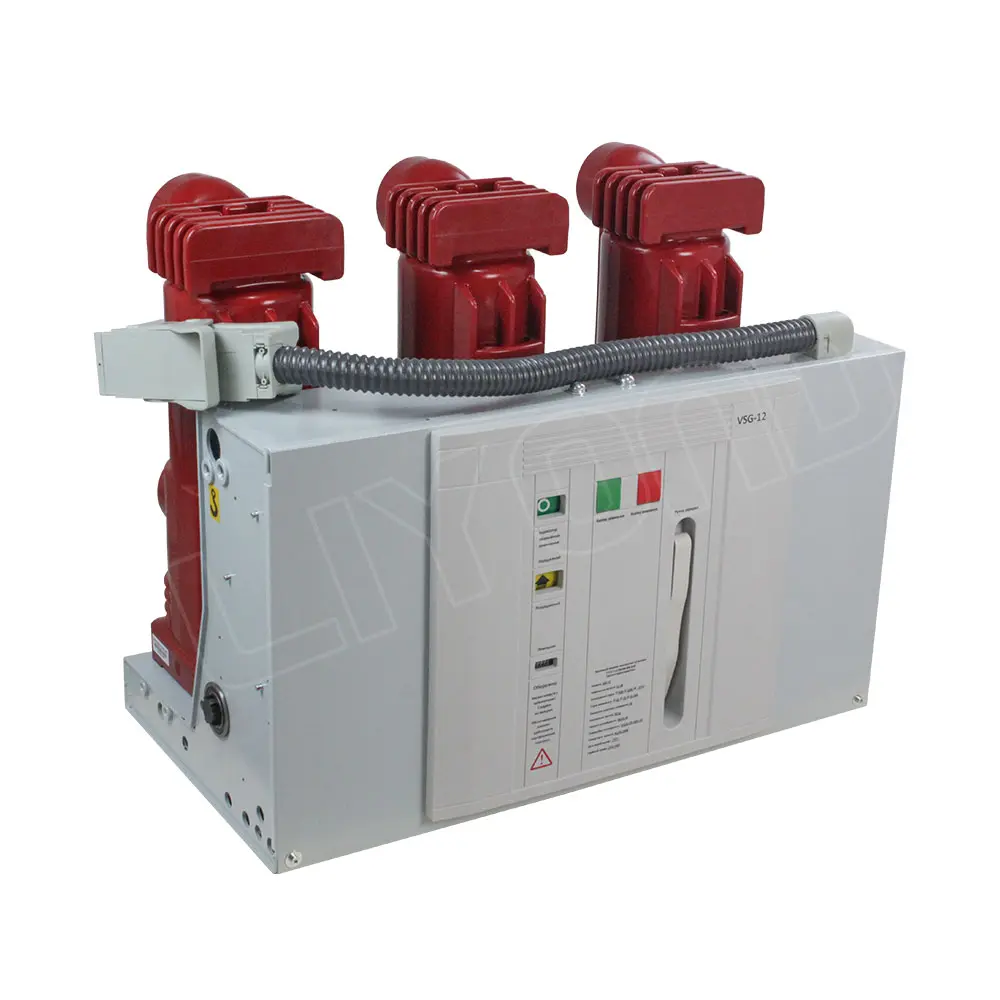

VSG-12 1600A Big Current Medium Voltage Fixed Type Solid Pole Vacuum Breaker 12kV

VSG-12 1600A Big Current Medium Voltage Fixed Type Solid Pole Vacuum Breaker 12kV

• Specification
• Technical Parameters

• VSG-12 1600A Big Current Medium Voltage Fixed Type Solid Pole Vacuum Breaker 12kV

  VSG-12 indoor high-voltage vacuum circuit breaker is an indoor and outdoor switching device used in 12KV power systems. It is used as a protection and control unit for power grid equipment and power design of industrial and mining enterprises. It is suitable for switching loads of different natures and frequent operations. The occasion of breaking short-circuit current for the first time. The product adopts VSG module integrated spring operating mechanism. The primary part of VSG-12 can use a sealed pole to seal the vacuum arc extinguisher and the main conductive circuit parts into a whole, protecting the arc extinguisher from collision, dust and condensation. It has strong environmental adaptability and greatly reduces the cost of the arc extinguisher. operation and maintenance costs

  Features:
  1. Integration, modularization, miniaturization and lightweight;
  2. High reliability, long life, more stable performance;
  3. High degree of generalization, inventory and standardization of parts;
  4. High transmission efficiency and more reasonable design;

  Applying Ambient Conditions:

  1.Ambient temperature -25℃– +40℃
  2.The height above sea level: ≤1000 m
  3.Relative humidity: the average humidity of a day should be no more than 95％; the average humidity of a month should be no more than 90％.
  4.Saturated vapor pressure: the average pressure of a day should be no mare than 2.2kPa; the average pressure of a month should be no more than1.8KPa.
  5.Earthquake intensity: not exceed 8 degrees
  6.It should be Installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.

• VSG-12 1600A Big Current Medium Voltage Fixed Type Solid Pole Vacuum Breaker 12kV

  Technical Parameters

  No.	Item		Unit	Data
  1	Rated voltage		kV	12
  2	Rated frequency		Hz	50
  3	Rated insulation level	1min power frequency withstand voltage	kV	42
  		Rated lightning impulse withstand voltage	kV	75
  4	Rated current		A	630/1000/1250/1600/2000/2500/3150/4000
  5	Rated short circuit breaking current Rated short-time withstand current (virtual value)		kA	20/25/31.5/40/50
  6	Rated short circuit making current (peak value) Rated dynamic current(peak value)		kA	50/63/80/100/125
  7	Rated short-circuit breaking current breaking time		times	30, 50
  8	Rated thermal stability time		s	4
  9	Rated operation sequence			O-0. 3s-CO-180s-CO
  10	Mechanical life		times	30000
  11	Rated breaking current of single capacitor bank		A	630
  12	The breaking current of single rated capacitance bank		A	400
  13	The breaking current of rated back to back capacitance bank		s	4

  Overall dimensions





  VCB selection table

  S/N	Item		Unit	Data
  *	Type		/	□Handcart Type with Embedded Pole □Handcart Type with Insulated Cylinder □Fixed type with Embedded Pole □Fixed type with Insulated Cylinder
  1	Rated voltage		kV	12
  2	Rated frequency		Hz	50/60
  3	Rated  insulating level	1min  power frequency withstand voltage	kv	42
  		Rated lightning impulse withstand voltage	kv	75
  4	Rated current		A	630	1250	1600	2000	2500	3150	4000
  5	Rated short circuit breaking current Rated thermal stability current(effective value)		kA	20
  				25	25
  				31.5	31.5	31.5	31.5	31.5
  						40	40	40	40	40
  										50
  6	Rated short circuit making current（peak value） Rated dynamic current(peak value)		kv	50
  				63	63
  				80	80	80	80	80
  						100	100	100	100	100
  										125
  7	Rated short circuit current breaking times		times	30,50
  8	Rated thermal stability time		s	4
  9	Rated operating sequence		times	0-0.3s-C0-180s-C
  10	Mechanism life		times	30000
  11	The breaking current of single rated capacitance bank		A	400
  12	The breaking current of rated back to back capacitance bank		S	4
