VCB contacting finger contacts 3150A

VCB contacting finger contacts 3150A

• Specification
• Drawing

• VCB contacting finger contacts 3150A

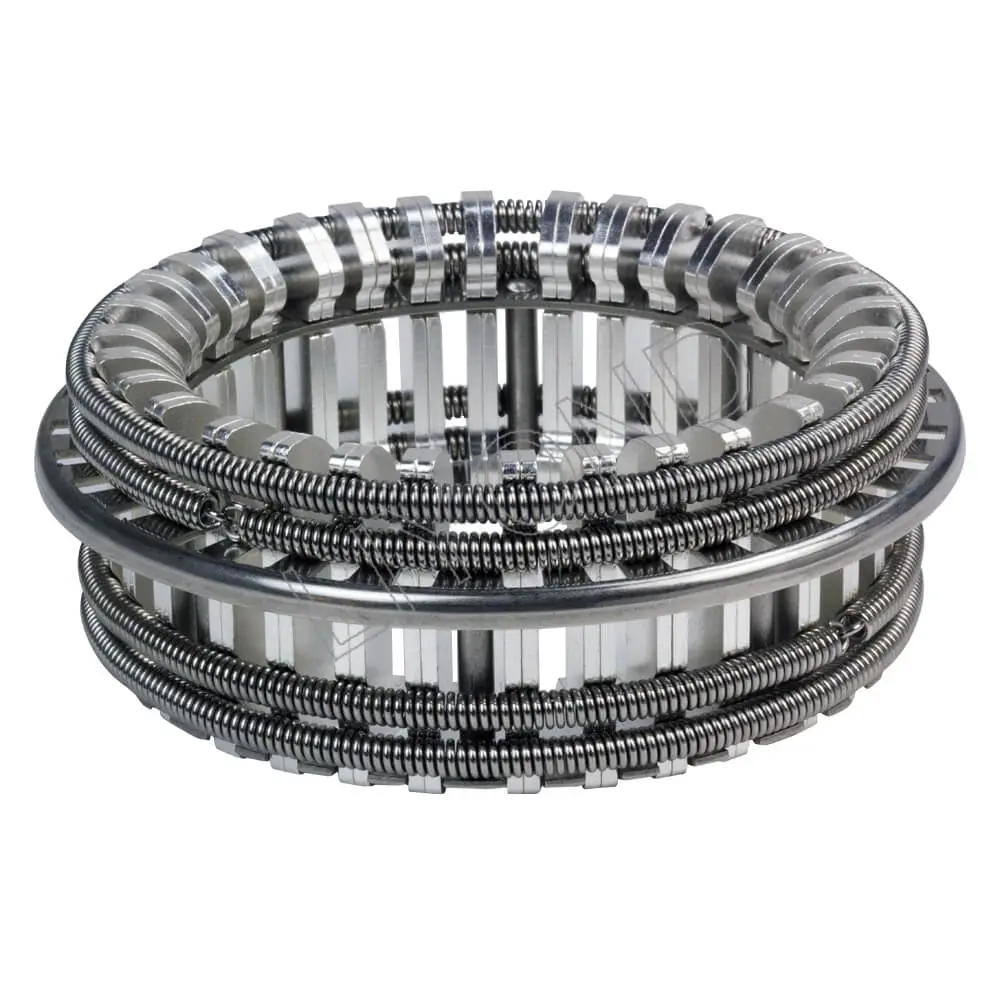

  The tulip contact used on the vacuum circuit breaker is a special electrical contact. Its shape is like a plum blossom, which can increase the contact area and reduce the contact resistance, thus improving the electrical performance and reliability of the circuit breaker. Torx contacts are usually made of copper, and the surface is silver-plated or gold-plated to improve its conductivity and corrosion resistance. In vacuum circuit breakers, tulip contacts are usually used to disconnect or connect important electrical equipment such as high current and high voltage in the circuit.

  Model No.: LYA116

  Rated current	3150A
  Material	copper with thick silver plating, stainless steel with magnetic free
  Contact blade	64pcs
  Type	Bundled
  Application	vacuum circuit breaker
  The minimum quantity	10pcs
  Payment terms	T/T, L/C, Western Union

  Advantages

  1. Made of high 99.9% pure T2 copper tube, customize the thickness of silver coating
  2. High quality non-magnetic Ring-shaped stainless spring with average pressure, avoid the eddy;
  3. 3mm thickness of T2 copper..We can design and manufacture according to customers drawings and requirement.
  4. Can customize specific high thickness silver coating, guarantee the thickness of silver coating, high abrasion resistance;
  5. Discoloring proof treatment, avoid the dropping caused by silver coating oxidation;
  6. We are ISO9001:2000, ISO14001:2004 certificated company, having strict quality processing according to ABB requirements.

•

  VCB contacting finger LYA116
