VSG-12 2000A Current Handcart Type Vacuum Circuit Breaker With Fixed Pole

• Specification
• Technical Parameters

• VSG-12 2000A Current Handcart Type Vacuum Circuit Breaker With Fixed Pole

  VSG type indoor high-voltage vacuum circuit breaker is suitable for switching various loads of different natures and frequent operations in power systems with three-phase AC 50Hz and rated voltage of 7.2kV-40.5kV. It can be used in industries, mining, enterprises, and power plants. And for the protection and control of electrical equipment in substations. It can be equipped with KYN28A and other mid-mounted handcart switch cabinets, and can also be equipped with XGN fixed switch cabinets. The VSG indoor high-voltage vacuum circuit breaker complies with the national standards GB1984 “AC High-voltage Circuit Breaker”, JB/T3855 “3.6~40.5kV Indoor AC High-voltage Vacuum Circuit Breaker” and IEC60056 “High-Voltage AC Circuit Breaker” standards.

  VCB Features:

  • • VSG Spring Operating Mechanism: Ensures fast and reliable switching operations with minimal maintenance.
    • Handcart Design: Provides flexibility and ease of installation, maintenance, and replacement.
    • Embedded Pole Technology: Enhances dielectric strength and reliability, reducing maintenance needs and increasing lifespan.
    • Compact and Robust: Designed for space-saving installations without compromising performance and safety.

  Applying Ambient Conditions:

  1.Ambient temperature -25℃– +40℃
  2.The height above sea level: ≤1000 m
  3.Relative humidity: the average humidity of a day should be no more than 95％; the average humidity of a month should be no more than 90％.
  4.Saturated vapor pressure: the average pressure of a day should be no mare than 2.2kPa; the average pressure of a month should be no more than1.8KPa.
  5.Earthquake intensity: not exceed 8 degrees
  6.It should be Installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.

• VSG-12 2000A Current Handcart Type Vacuum Circuit Breaker With Fixed Pole

  No.	Item		Unit	Data
  1	Rated voltage		kV	12
  2	Rated frequency		Hz	50
  3	Rated insulation level	1min power frequency withstand voltage	kV	42
  		Rated lightning impulse withstand voltage	kV	75
  4	Rated current		A	630/1000/1250/1600/2000/2500/3150/4000
  5	Rated short circuit breaking current Rated short-time withstand current (virtual value)		kA	20/25/31.5/40/50
  6	Rated short circuit making current (peak value) Rated dynamic current(peak value)		kA	50/63/80/100/125
  7	Rated short-circuit breaking current breaking time		times	30, 50
  8	Rated thermal stability time		s	4
  9	Rated operation sequence			O-0. 3s-CO-180s-CO
  10	Mechanical life		times	30000
  11	Rated breaking current of single capacitor bank		A	630
  12	The breaking current of single rated capacitance bank		A	400
  13	The breaking current of rated back to back capacitance bank		s	4

  Overall dimensions



DPC-4-800 VCB Chassis Truck Can Be Fitted With VD4 Vacuum Circuit Breakers

• Specification
• Drawing

• DPC-4-800 VCB Chassis Truck Can Be Fitted With VD4 Vacuum Circuit Breakers

  VCB Chasis truck mainly used for switch equipment to install circuit breaker, transformer and other components, push and exit it, play a supplementary  role in connecting the components with the busbar.

  Carts are available in two versions: DPC- 4 -800 for circuit breakers up to 1600A and interfacial distance to 210, 275 mm, And DPC- 4 -1000 to switch from 2000A to 3150A , with an interfacial distance up to 275 mm. In trolley mounted auxiliary contacts its provisions (operating or control ), as well as all the necessary locks. Bred to pull lock breaker racking included, as well as reed for interlocking with earthing. Depth racking 200, 300mm.



  Working principle

  The hand-carrying circuit breaker has two positions in the switchgear, namely the working position and the isolated position. When the circuit breaker is in the working position, the main circuit of the switchgear is connected with the main circuit of the circuit breaker; and when the circuit breaker is in the isolated position, the main switchgear The circuit is disconnected from the main circuit of the circuit breaker. The switching of the two positions of the circuit breaker in the switchgear is achieved by the movement of the chassis of the hand-cranked circuit breaker. Since the main circuit is a high-voltage live accessory, the movement of the circuit breaker must be unlocked in the chassis lock device, that is, the chassis car lock device controls the chassis car to carry the circuit breaker in the switch cabinet.

• DPC-4-800 VCB Chassis Truck Can Be Fitted With VD4 Vacuum Circuit Breakers

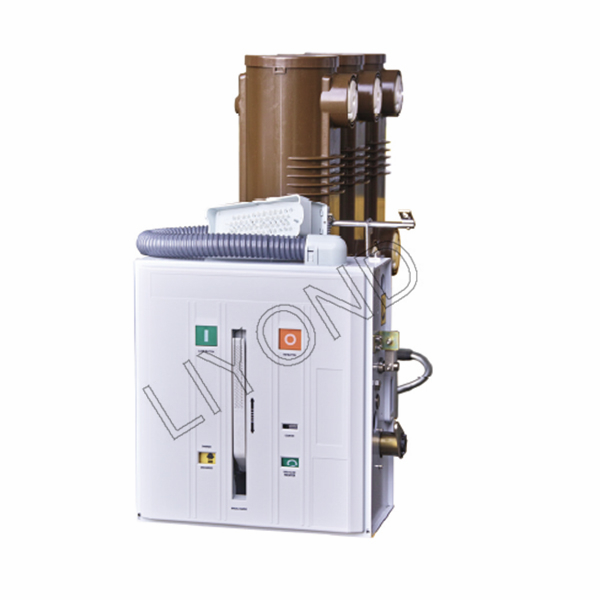

VBI-C-24kV Side Mounted Vacuum Circuit Breaker With VBI Spring Operating Mechanism

VBI-C-24kV Side Mounted Vacuum Circuit Breaker

• Specification
• Drawing

• VBI-C-24kV Side Mounted Vacuum Circuit Breaker With VBI Spring Operating Mechanism

  VBI-24 indoor medium-voltage sealed vacuum circuit breaker is suitable for air-insulated indoor switches and is used for control and protection in power grids with AC and rated voltage of 24KV and below. Vacuum circuit breakers are used in frequent It has extremely excellent performance in operation and situations where the circuit breaker current needs to be opened, fully meets the requirements of automatic closing, and has high reliable operation and service life.

  The operation mechanism of VBI-24 side mounted type vacuum circuit beaker is used spring to storage energy, which can be operated by two ways, manual or electrical. The characteristics are accordance with GB1984-89 <AC High Voltage Circuit Breaker>, JB3855-96<10kv Indoor High Voltage Vacuum Circuit Breaker General Technical Specifications>, Relevant Provisions of IEC56 standard.

  Main Technical Specification

  No.	Name		Unit	Data
  *	Type		/	口Insulating cylinder 口Epoxy resin embedded poles 口Nylon embedded poles		口Upper outlet 口Side outlet
  1	Rated voltage		kv	24
  2	Rated insulation level	Power frequency withstand voltage		65
  		Rated lightning impulse withstand voltage		125
  3	Contact opening distance		mm	12±1
  4	overtravel			3±0.5
  5	Distance between phases			210±1
  6	Contact closing bounce time		ms	≤2
  7	Three-phase points,closing at different times			≤2
  8	Opening time			≤50
  9	Closing time			≤100
  10	Average opening speed(contact is separation after 6mm)		M/s	0.9~1.3
  11	Average opening speed(contact is closed before 6mm)			0.4~0.8
  12	Closing contact contact pressure		N	25KA	31.5KA
  				2200±200	3200±200



• VBI-C-24kV Side Mounted Vacuum Circuit Breaker With VBI Spring Operating Mechanism





  VBI-C side mounted vacuum circuit breaker



  About us:

  We are specialty on epoxy resin medium voltage and HVcomponents, such as 12KV, 24 KV, 36KV and 40.5KV switchgear TG3 wall bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fixed contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!



VBI-12 Indoor High Voltage Power Distribution Equipment Vacuum Circuit Breaker 12kV Fixed Type with Solid Sealed Pole

• Specification
• Parameters

• VBI-12 Indoor High Voltage Power Distribution Equipment Vacuum Circuit Breaker 12kV Fixed Type with Solid Sealed Pole

  VBI-12 Indoor High Voltage Vacuum Circuit Breaker is three-phase AC 50Hz，Rated voltage of 12KV indoor device，For industrial and mining enterprises, power plants and substations as electrical equipment control and protection purposes, and for frequent operation of the place.It can be equipped with KYN28A and other mid-mounted handcart-type switchgear, and can also be equipped with XGN fixed switchgear. VBI type indoor high-voltage vacuum circuit breaker conforms to the standard GB1984 “AC high-voltage circuit breaker”, JB/T3855 “3.6 ~ 40.5kV indoor AC high-voltage vacuum circuit breaker” IEC60056 “high-voltage AC circuit breaker” standard. Meet DVr403 “10-35kV Indoor High Voltage Vacuum Circuit Breaker Ordering Technical Conditions”

  Applying ambient conditions

  1. Ambient temperature is not greater than +40 ℃, not less than -10 ℃ (allow storage at -30 ℃);

  2. Altitude below 1000m;

  3. Daily average daily relative humidity of not more than 95%, the monthly average of not more than 90%; saturated vapor pressure daily average of not more than 2.2 * 10-3MPa, the monthly average of not less than 1.8 * 10-2MPa, When the temperature drops sharply, it may condense;

  4. earthquake intensity does not exceed 8;

  5. No fire, explosion, serious pollution, chemical corrosion and severe vibration of the place.



• VBI-12 Indoor High Voltage Power Distribution Equipment Vacuum Circuit Breaker 12kV Fixed Type with Solid Sealed Pole

  Main Technical Specification

  NO.	Name		Unit	Data
  1	Rated voltage		KV	12
  2	Rated insulation level	1min Power frequency withstand voltage		42
  		Rated lightning impulse withstand voltage		75
  3	Rated current		A	630, 1250, 2000, 3150
  4	Rated short circuit breaking current		KA	20, 25, 31.5, 40
  5	Rated short-circuit opening and closing current (peak)			50, 63, 80, 100
  6	Rated dynamic current (peak)			50, 63, 80, 100
  7	Rated thermal stability current (rms)			20, 25, 31.5, 40
  8	Rated short circuit current breaking times		times	50, 20
  9	Rated thermal stability time		S	4
  10	Rated operating sequence		/	O-0.3S-CO-180S-CO
  11	Mechanical life		times	10000
  12	Rated single capacitor bank breaking current		A	630
  13	Rated back to back capacitor bank breaking current			400

  VBI-12 fixed type circuit breaker dimensions



  More types：VBI-C side mounted vacuum circuit breaker



  Our Advantages:

  1. We are specialized in sales of high-voltage electrical insulation products.

  2. Strict quality control and excellent after-sales service.

  3. Experienced staffs answer all of your question in fluent English.

  3. Customized design is available. OME&ODM are welcomed.

  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



VCB Circuit breaker Transfer Cart Or Trolley Ruuning Handcart For 12kv 24kV Switchgear VCB

• Specification
• Drawing

• VCB Circuit breaker Transfer Cart Or Trolley Ruuning Handcart For 12kv 24kV Switchgear

  Description:

  The circuit breaker transfer trolley is a work trolley that pulls or pushes the circuit breakers out of the breaker room in the transfer switchgear. When the circuit breaker is to be pushed into the breaker room, the breaker needs to be placed on the shelf of the transfer trolley and pushed by hand to the breaker room; if the breaker is to be pulled out, the breaker transfer trolley is docked with the switchgear and the breaker is pulled out manually, and the breaker is pulled to the breaker transfer trolley by the movement of the rollers on the breaker chassis trolley and then processed for maintenance.

  The circuit breaker transfer trolley comprising a support body with a guide wheel set, a lower platform guide plate, an upper platform guide plate, the lower platform guide plate is set on the support body and a pallet is provided on the upper platform guide plate; a cam type handle is provided on one side of the pallet; adjustable height, reliable operation and good safety.

  Advantages of the transfer trolley:
  1. Easy operation
  Simplified installation and removal: The transfer trolley is designed to facilitate the easy movement of the vacuum circuit breaker into the switch cabinet and can be quickly installed or removed. This greatly simplifies the operation process and reduces downtime.
  Precise positioning: The trolley is usually equipped with a positioning device to ensure that the circuit breaker can be accurately aligned with the connection point of the switch cabinet, improving the safety of installation and operation.
  2. Improved safety
  Electrical isolation: When maintaining or replacing the circuit breaker, the transfer trolley can completely isolate the circuit breaker from the switch cabinet to prevent operators from contacting live parts, thereby improving safety.
  Preventing misoperation: Many transfer trolleys are equipped with interlocking devices to prevent the circuit breaker from closing when it is not properly in place, thereby avoiding equipment damage or personal accidents.
  3. Easy maintenance
  Simplified maintenance: The transfer trolley makes the inspection and maintenance of the vacuum circuit breaker more convenient. The operator can easily move the circuit breaker out of the switch cabinet for inspection and repair without complicated tools and operations.
  Quick replacement: When a circuit breaker needs to be replaced, the transfer cart can speed up the process, reduce power outage time, and improve the operating efficiency of the power supply system.
  4. Enhanced flexibility
  Multi-purpose design: Some transfer carts can be used for different types of circuit breakers or in different switch cabinets, increasing the flexibility and scope of application of the equipment.
  Emergency operation: When a power system fails, the transfer cart can quickly remove the damaged circuit breaker and replace the spare circuit breaker to ensure that the system is quickly restored to operation.
  5. Save space
  Compact design: The transfer cart usually has a compact design and takes up less space, which is conducive to the efficient use of the internal space of the switch cabinet, and is also convenient for transportation and storage.
  6. Reduce labor costs
  Reduce manpower requirements: The design of the transfer cart allows operators to complete the installation, removal and transportation of circuit breakers independently or with a small amount of assistance, reducing the reliance on a large number of people and saving labor costs.



  Working conditions

  1) The altitude does not exceed 1000m

  2) The ambient temperature is between -30°C to +40°C, the daily mean temperature is no greater than 30°C.

  3) The daily mean relative temperature is no greater than 95%.The monthly mean relative temperature is no greater than 90%.

  4) The installation area should be without the dangerous mediums which affect the conductive propertied and the insulating performance of the products, such as steam ,gas, chemical corrosive deposit, salt spray, dust, dirt, and so on.

  5) There should be no frequent vibration and serious jolt.





  We are produce all kinds of GZS1/KYN28 parts like: trolley, handcart, chassis, frame, interlocks, insulation, earthing switch, VCB, etc.



• Circuit breaker Transfer Cart Or Trolley Ruuning Handcart For 12kv 24kV Switchgear VCB



  Application



  About us

  We are specialty on epoxy resin medium voltage and HVcomponents, such as 12KV, 24 KV, 36KV and 40.5KV switchgear TG3 wall bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!

  We will give you best quality and price!

  Our Advantages:

  1. We are specialized in sales of high-voltage electrical insulation products.

  2. Strict quality control and excellent after-sales service.

  3. Experienced staffs answer all of your question in fluent English.

  3. Customized design is available. OME&ODM are welcomed.

  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



F10-16 8NC8NO AUX Switches Auxiliary Switch For VCB

F10-16 8NC8NO AUX Switches Auxiliary Switch For VCB

• Specification
• Drawing

• F10-16 8NC8NO AUX Switches Auxiliary Switch For VCB

  Item No: F10-16

  F10 series auxiliary switch is widely used in various high-voltage circuit breakers, high-voltage disconnecting switch operator control circuit in the division and closing signal control, interlocking protection, mainly applied to vacuum switches, CT series and other spring-operated mechanism, disconnecting switches and other electrical equipment, also can be used as a changeover switch, combination switch.



  Structure and Features
  1. The self-operated plane sliding contact is adopted, and the moving contact is composed of two contact pieces without fixed gap, which can make the contact pressure of each pair of contacts consistent.
  2. It adopts a laminated structure, and the number of contacts can be increased or decreased as required.
  3. Small size, simple structure, flexible operation, safe and reliable.

  Working Conditions

  1. Ambient Temperature (-40℃≤ t ≤40℃)

  2. Height above Sea Level (h≤3000m)

  3. Monthly mean relative air humidity ≤ 90%, daily mean relative air humidity ≤ 95%

  4. Oscillatory acceleration 15m/s²

  5. Situation of no sharp pounding, no explosion risk, no inductive dust, no air destroying, insulators or corroding metal, and so on.



• F10-16 Auxiliary Switch for VCB

  Item No: F10-16



  Drawing



  Data




  Note

  1. According to different requirements, the turning angle of series F10 could be 60°~90°~120°.

  2. Auxiliary Switch Series F10 is divided into straight type and horizontal type according to the assembling method. It’s divided into horizontal structure and straight delay contact according to the way of construction.



  Our Advantages

  1. We are specialized in sales of high-voltage electrical insulation products: contact box, bending plate, insulator, sensor, wall bushing, contact arm bushing, insulated cylinder and tube.
  2. Strict quality control and excellent after-sales service.
  3. Experienced staffs answer all of your question in fluent English.
  3. Customized design is available. OME&ODM are welcomed.
  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



Insulated Operating Rod LYC174 for VCB

Insulated Operating Rod LYC174 for VCB

• Specification
• Drawing
• PDF Download

• Insulated Operating Rod LYC174 for VCB

  Item No: LYC174

  Description:

  VS1 (ZN63)-12 type Side installation indoor high voltage vacuum circuit breaker is Indoor high voltage switchgear, Applies to rated voltage 12kv, frequency 50Hz three-phase power system, Electrical protection and control as the use of vacuum circuit breaker as a result of the special advantages, in particular the need for frequent operation under the rated current or short-circuit current breaking many places.

  Application

  The variety of insulation and sensor listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of insulation pull rod, bushing, contact box, insulating cylinder and bell housing etc adopt APDA technology for molding (majority).while, some product adopt SMC,DMC instauration alkyd enlargement mode plastic for compacting molding. All the product are applied to 3.6~40.5KV mid-large volt switchboard, for some product and specification size owning special requirement, it could be designed and manufactured according to user demand.

• Insulated Operating Rod LYC174 for VCB

  Item No: LYC174



  Insulated Operating Rod LYC174 for VCB

  Details:

  Model Name:	VS1-12/630-1250A Insulated operating rod
  Brand:	Liyond
  Application:	High Voltage
  Type	Insulator Rod
  Rated Voltage:	24kV,24kv
  Rated current:	630-1250A
  Color:	white
  Material	SMC
  Product Certification:	CE and ISO 9001:2000
  MOQ:	50pcs
  Packing:	1.Each one is wrapped with plastic film 2.Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally
  Loading port:	Shanghai  Port / Ningbo  Port
  Payment terms:	L/C,T/T, Western Union
  Delivery time:	within 15 days, depends on order quantity
  Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification

• Item No: LYC174

  [Download not found]

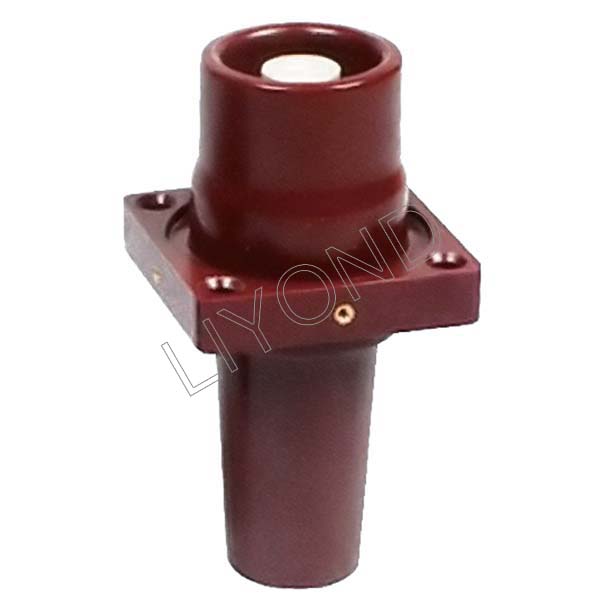

Bushing LYC169 SF6-24 Electric insulator for VCB

Bushing LYC169 SF6-24 Electric insulator for VCB

• Specification
• Drawing
• PDF Download

• Bushing LYC169 SF6-24 Electric insulator for VCB

  Item No: LYC169

  Description:

  1. The use of epoxy resin automatic pressure gels craft that APG technology manufacturing, product appearance, mechanical, electrical performance.

  2. Selection of high-toughness resin production, excellent mechanical properties. And selection of low-formula system reactivity, slow curing, low-stress products to maximize the mechanical properties of products.

  3. Silica add activity to further improve the mechanical properties of epoxy resin, but also to ensure that the insulation work in the humid environment of long-term to maintain a good electrical insulation properties.

  4. Add organic pigment, the product color bright, does not reduce the insulation performance.

  Our Advantages:

  1, We are specialized in sales of high-voltage electrical insulation products: contact box, bending plate, insulator, sensor, wall bushing, contact arm bushing, insulated cylinder and tube.

  2. Strict quality control and excellent after-sales service.

  3. Experienced staffs answer all of your question in fluent English.

  3. Customized design is available. OME&ODM are welcomed.

  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

• Bushing LYC169 SF6-24 Electric insulator for VCB

  Item No: LYC169



  Bushing LYC169 SF6-24 Electric insulator for VCB

  The bushing is made from Epoxy Resin by APG technology, product appearance, mechanical, electrical performance.

  About us:

  We are specialty on epoxy resin medium voltage and HV components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear TG3 wall bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!

  We will give you best quality and price!

• Item No: LYC169

  [Download not found]

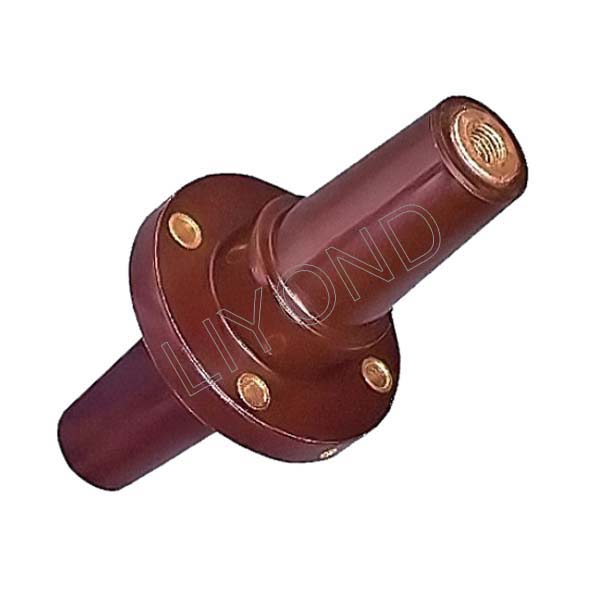

LYC166 Two sides bushing with Epoxy Resin for VCB

LYC166 Two sides bushing with Epoxy Resin for VCB

• Specification
• Drawing
• PDF Download

• LYC166 Two sides bushing with Epoxy Resin for VCB

  Item No: LYC166

  Description:

  1. The CEE CQTG-24/630 Two Side Bushing is designed for Power Cable Sector and Switchgear. It provides two DIN 47636 standard interfaces for dead break operation.

  2. The Bushing is molded with high quality mixed epoxy insulating material. When mated with comparably rated products, it provides a fully shielded, submersible and separable connection for dead break operation.

  3. There are two test holes in the installing flange for connecting universal high voltage indicators such as type DXN6.

  Applicable Work Environment:

  1. Indoor installation.
  2. Altitude: ≤1000m.
  3. Ambient temperature: +40°C~5°C.
  4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
  5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

• LYC166 Two sides bushing with Epoxy Resin for VCB

  Item No: LYC166



  LYC166 Two sides bushing with Epoxy Resin for VCB

  Specification :

  1.The epoxy resin insulation bushing product casting finished by epoxy resin and formed for one step.

  2.It is used for insulation isolated effect in PT trolley and vacuum circuit breaker.

  About us:

  We are specialty on epoxy resin medium voltage and HV components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear TG3 wall bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!

  We will give you best quality and price!

• Item No: LYC166

  [Download not found]

40.5kV Tripping Connecting Rod Insulated VCB Tension Bar

40.5kV Tripping Connecting Rod Insulated VCB Tension Bar

• Specification
• Drawing
• About us
• PDF Download

• 40.5kV Tripping Connecting Rod Insulated VCB Tension Bar

  Item No: LYC419

  Description:

  1. The product adopts epoxy resin material

  2. It gains high level of insulation, intensity and stability.

  3. It provides different specifications based on the size of electric current for the user’s choice

  Applicable Work Environment:

  1. Indoor installation.
  2. Altitude: ≤1000m.
  3. Ambient temperature: +40°C~5°C.
  4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
  5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance



• Tripping connecting rod insulated VCB LYC419

  Item No: LYC419



  40.5kV Tripping Connecting Rod Insulated VCB Tension Bar

• About us:

  We are specialty on medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!
  We will give you best quality and price!

• 40.5kV Tripping Connecting Rod Insulated VCB Tension Bar

  [Download not found]
