Small Compact Thermostat Mini Thermostat Temperature Controller

Small Compact Thermostat Mini thermostat Temperature Controller

• Specification

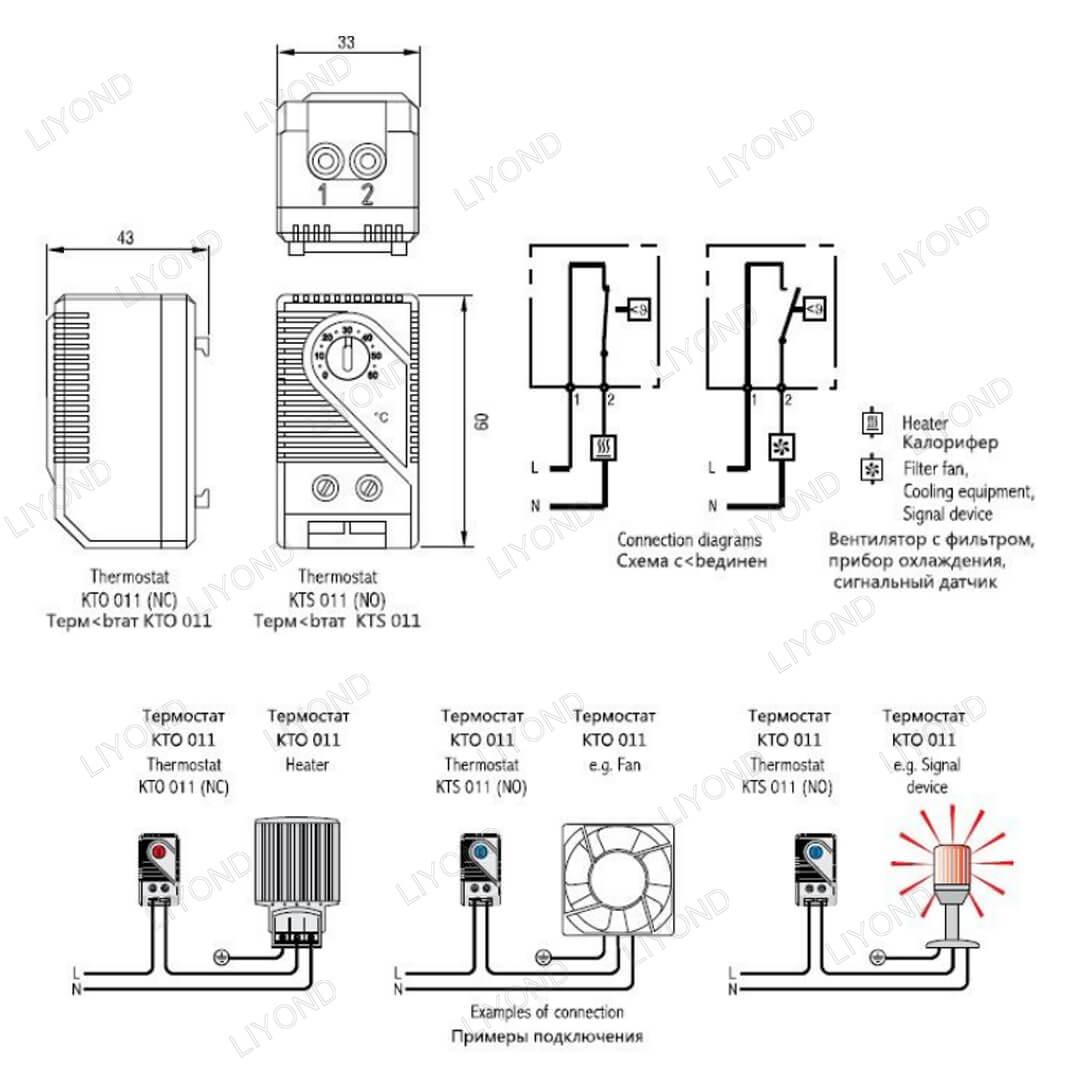

• Drawing

• Small Compact Thermostat Mini thermostat Temperature Controller

  Thermostat (normally closed); contact breaker for regulating heaters.

  Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

  Thermostat Features：

  1. Large setting range

  2. Small size

  3. Simple to mount

  4. High switching performance

  Specification

  Switch temperature difference	7K (± 4K tolerance)
  Sensor element	thermostatic bimetal
  Contact type	snap-action contact
  Contact resistance	< 10mOhm
  Service life	> 100 000 cycles
  Max. switching capacity	250VAC, 10 (2) A
  	120VAC, 15 (2) A
  	DC 30W
  EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
  Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2; stranded wire (with wire end ferrule) 1.5mm⊃2;
  Mounting	clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
  Casing	plastic according to UL94 V-0, light grey
  Dimensions	60 x 33 x 43mm
  Weight	approx. 40g
  Fitting position	variable
  Operating/Storage temperature	-20°C to +80°C (-4 to +176°F) / -45°C to +80°C (-49 to +176°F)
  Protection type	IP20







  Details:

  Model Name:	Thermostat
  Brand:	Liyond
  MOQ:	100pcs
  Loading port:	Shanghai  Port / Ningbo  Port
  Payment terms:	L/C, T/T, Western Union
  Delivery time:	within 10 days, depends on order quantity
  Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification
