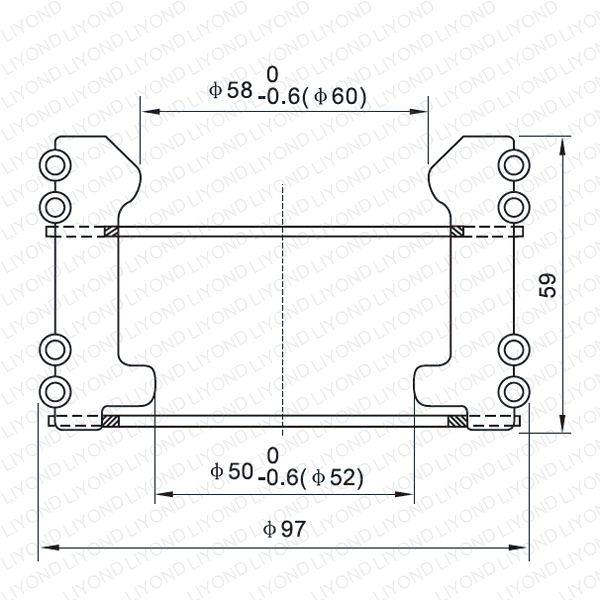

Tulip Contact Bulkbuy Movable Contact LYA110
Model No.: LYA110
-
Movable contact for vacuum circuit breaker
The tulip contact used on the vacuum circuit breaker is a special electrical contact. Its shape is like a plum blossom, which can increase the contact area and reduce the contact resistance, thus improving the electrical performance and reliability of the circuit breaker. Torx contacts are usually made of copper, and the surface is silver-plated or gold-plated to improve its conductivity and corrosion resistance. In vacuum circuit breakers, tulip contacts are usually used to disconnect or connect important electrical equipment such as high current and high voltage in the circuit.
Model No.: LYA110
Rated current 1600A Material copper with thick silver plating, stainless steel with magnetic free Contact blade 40pcs Type Bundled Application vacuum circuit breaker The minimum quantity 10pcs Payment terms T/T, L/C, Western Union Advantages
1. Made of high 99.9% pure T2 copper tube, customize the thickness of silver coating
2. High quality non-magnetic Ring-shaped stainless spring with average pressure, avoid the eddy;
3. 3mm thickness of T2 copper..We can design and manufacture according to customers drawings and requirement.
4. Can customize specific high thickness silver coating, guarantee the thickness of silver coating, high abrasion resistance;
5. Discoloring proof treatment, avoid the dropping caused by silver coating oxidation;
6. We are ISO9001:2000, ISO14001:2004 certificated company, having strict quality processing according to ABB requirements.About us:
We are specialty on epoxy resin medium voltage and high voltage components, such as 12KV, 24 KV, 36KV and 40.5KV switchgear bushing, contactor box, insulators, transducers. 630A, 1250A, 2500A, 3150A and 4000A contactor box, club contact, fix contact, arm contact and jaw contact. 630A and 1250A VS1 circuit breaker. 630A and 1250A ZN85-40.5 circuit breaker. 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components!
-
Structural Features
·Annular spring with uniform pressure
·Adopt imported non-magnetic stainless steel,avoid eddy current
·Thick silver coating,strong abrasion strength
·Anti-tarnishing processing,avoid silver coating oxidation off
·Fixed contact insertion depth for reference:34±2mm
