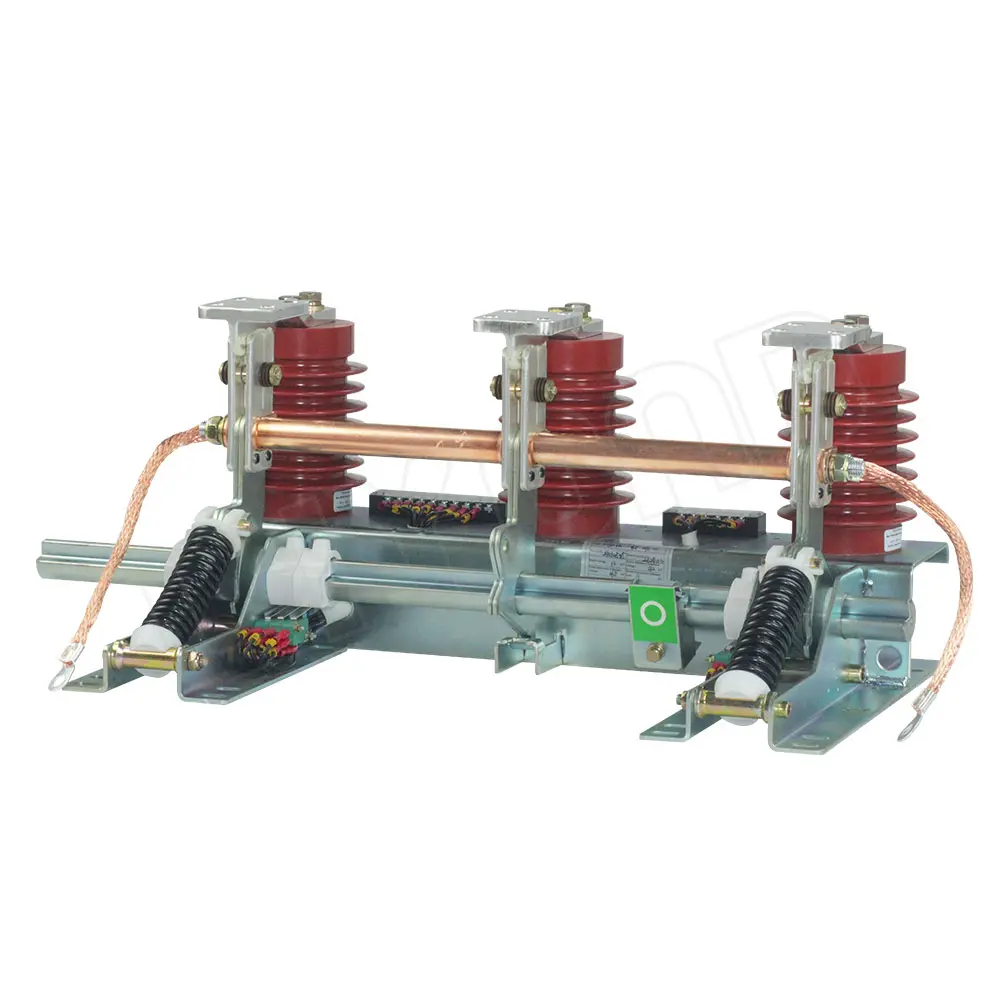

LYE102 JN15-12 Indoor AC Isolation Switches High Voltage Earthing Switch With Sensor
-
LYE102 JN15-12 Indoor AC Isolation Switches High Voltage Earthing Switch With Sensor
JN15-12 indoor high-voltage earthing switch is suitable for indoor 3~12KV three-phase AC 50(60)Hz power system and various types of high-voltage switchgear, and can also be used for grounding when overhauling high-voltage electrical equipment. The earthing switch has a simple and compact structure, light weight, flexible operation, easy installation and good dynamic and thermal stability.
Structure
Main structure: The earthing switch has a bracket, grounding knife assembly, static contact, sensor, shaft, inflection arm, pressure spring, conductive casing and soft connection.Note: The bracket is bent from a thin steel plate and welded into parts, the rest are assembled parts.
Working principle
a. When operating the operating mechanism to close the earth switch, as the torque makes the spindle overcome the resistance torque, drive the inflection arm to rotate along the closing direction, and make the manipulating rod on the earth knife pass through the dead point of the pressure spring, the pressure spring releases energy to make the earth switch close quickly, in the closing position. The grounding knife on the grounding knife assembly is firmly and reliably contacted by the disc spring and the flange part of the static contact.
b. When the switch is opened, the moment of action causes the spindle to overcome the main moment and the spring force, driving the inflection arm to rotate in the direction of opening and causing the grounding knife pressure spring to pass through the dead point and the pressure spring energy storage to end for the next closing.
c. The grounding switch and the closing speed are independent of the operating speed of the person.Feature
1.JN15- 12 indoor AC high voltage earthing switch is Advanced design and steady performance.
2. Simple structures, installation and adjustment.
3. Fast breaking and making capability.
4. Handsome appearance and delicate manufacture craft.
5. Usable and scientific apparatus, be operated on both sides(right and left).
Environmental conditions
1. Applicable to the following environmental conditions.
a.Altitude not more than 1000m above sea level.
b. Ambient temperature not higher than +40°C and not lower than -10°C.
c.Relative humidity not greater than 95% on a daily average and not greater than 90% on a monthly average.
d. The seismic intensity does not exceed 8 degrees.2. Not suitable for use in the following locations
a. Installation sites where there are gases, vapours, chemical precipitates, smoke, dust and dirt that seriously affect the insulation and conductivity of the earthing switch, as well as its explosive erosive substances.
b. The installation site is subject to frequent and severe vibrations. -
LYE102 JN15-12 Indoor AC Isolation Switches High Voltage Earthing Switch With Sensor
JN15-12/31.5-210 210 75 160 655 516 JN15-12/31.5-220 220 75 160 675 536 JN15-12/31.5-230 230 75 160 695 556 96 JN15-12/31.5-250 250 75 160 735 596 96 JN15-12/31.5-275 275 75 185 810 646 96 About us
