Liyond FZN21-12D/T630A High Voltage Vacuum Load Break Switch With Earthing Switch

Liyond FZN21-12D/T630A High Voltage Vacuum Load Break Switch With Earthing Switch

• Specification
• Technical specifications

• FZN21-12D/T630-20 indoor AC high voltage Load break switch FZN21-12D/T630-20 indoor high voltage vacuum Load break switch, suitable for powersupply network with rated voltage of 10kV three-phase AC 50Hz, used for breaking load current .
  FZRN21-12D/T125-31.5 indoor high voltage vacuum Load break switch-fuse combination electrical appliance has large breaking capacity, safety and reliability, andlong electrical life, it can be operated frequently, the structure is compact, the volume is small, the weight is light, and the maintenance is basically unncessary. It can protect the transformer from
  overload and prevent the equipment from running out of phase. It has obvious isolation fracture. It can be equipped with grounding knife and electric spring mechanism with closing ability, and it can be remotely controlled.

  FZN21-12 series high-voltage vacuum load switch is mainly composed of framer, disconnecting switch (current-limiting fuse of the combiner is in the disconnecting switch), vacuum switching tube, grounding switch, spring operating mechanism and so on.
  This product has compact structure, small volume, long life, strong closing and breaking capacity, and easy operation and maintenance. The vacuum switch is equipped with a spring-operated mechanism, which adopts an electric motor (another manual) spring energy storage, and there are two types of closing methods: electromagnet closing and manual splitting and closing. The disconnecting switch, vacuum switch and earthing switch are interlocked with each other (mechanical interlocking) to prevent misoperation.

  Model meaning





  Environmental conditions of use
  1. The surrounding air temperature does not exceed 40 ℃, and the average plant measured in 24h does not exceed 35 ℃, the lowest surrounding air temperature is -25 ℃;
  2. The effect of sunlight radiation can be ignored;
  3. The altitude does not exceed 2000m;
  4. No conductive dust, corrosive gases and water vapor places;
  5. No fire, explosion hazardous places;.
  6. Places without frequent and violent vibration.

• No.	Item		Unit	Data
  1	Rated voltage		kV	12
  2	Rated frequency		Hz	50
  3	Rated current		A	630
  4	Rated active load breaking curent		A	630
  5	Rated closed loop breaking current		A	630
  6	5% rated active load breaking current		A	21.5
  7	Rated cable charging breaking current		A	10
  8	Rated no-load transformer breaking capacity		KVA	1250
  9	1min power frequency withstand voltage: Vacuum fracture, alternate phase, relative ground/isolated fracture		kV	42/48
  10	Lightning impulse withstand voltage: Vacuum fracture, alternate phase, relative ground/isolated fracture		kV	75/85
  11	4s rated short-time withstand current (thermal stability)		kA	20
  12	Rated peak withstand current (dynamic stability)		kA	50
  13	Rated short-circuit making current		kA	50
  14	Institutional life	Vacum Load break switch	times	10000
  		Isolation knife, ground knife	times	2000
  15	Contact allowable wear cumulative thickness		mm	2
  16	Opening and closing operating torque		mm	>200
  17	Electric operation power supply		V	AC/DC 110/220

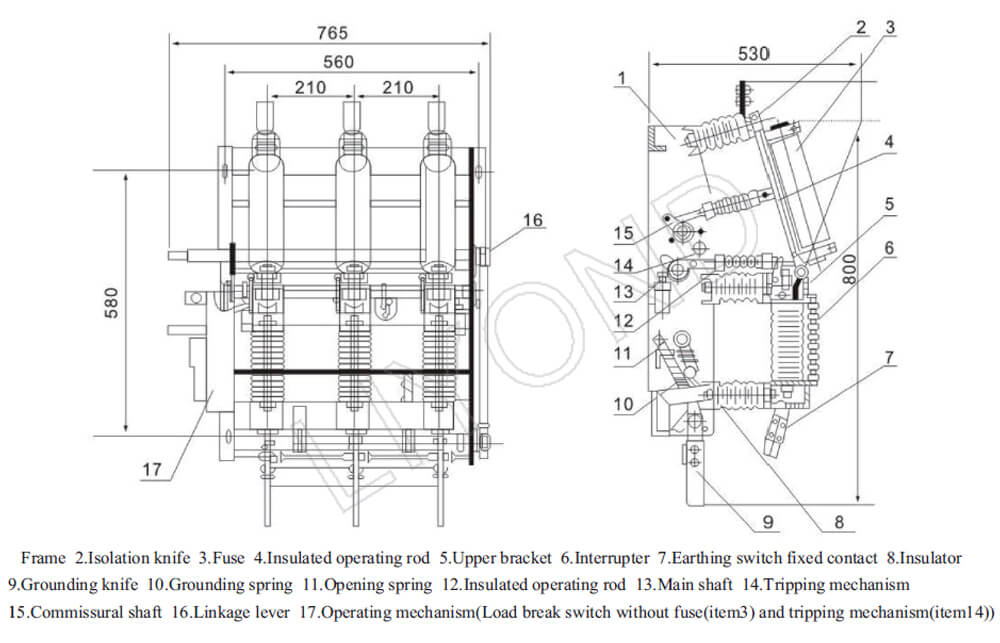

  Outline and installation dimensions



  Note: Products with special requirements, specifications and dimensions that need to be improved can be designed and manufactured according to user requirements.
