KYN61C Shutter Mechanism For Switchgear

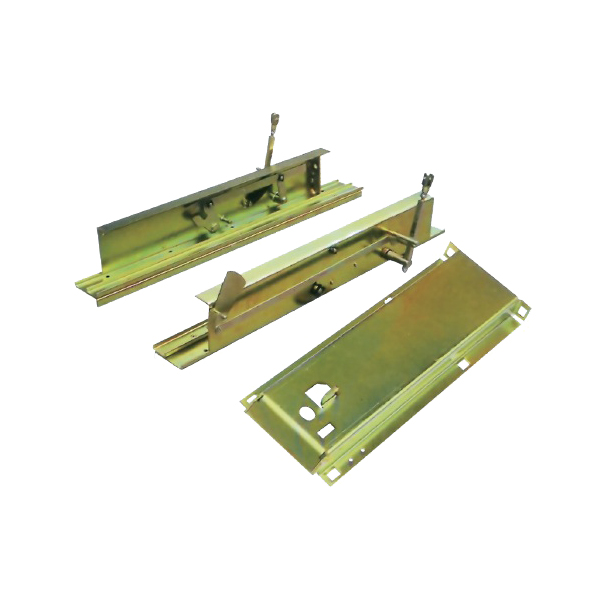

KYN61C Shutter mechanism for switchgear

• Specification
• Drawing
• PDF Download

• KYN61C Shutter mechanism for switchgear

  Specification

  1.Type:KYN61C

  2.Material:iron and surface zincing

  3.According to your design

  4.Application :high voltage switchgear

  Specification

  1.Standard material according to technical drawing

  2.OEM quality standard guaranteed

  3.Long lasting working life time

  4.becuase the surface zincing ,so it can’t be oxy-genated and discolored

  5.KYN61C high voltage switchgear accessories

• KYN61C Shutter mechanism for switchgear



  Drawing-1



  Drawing-2




  No.	Item	Code	Qty	Remark
  1	VD4 Aviation socket	Cz58	1
  2	Guide rail assembly	YF-050-34202	1
  3	Guide rail assembly	YF-050-34202DC	1
  4	Upper shutter assembly	YF-050-3420210	1
  5	Down shutter assembly	YF-050-34211	1
  6	Guide rail welding	YF-050-34230	1
  7	Chain assembly	YF-050-34230	1
  8	Guide slot	YF-055-34102	4	Positive & Negative
  9	Locking plate	YF-055-34103	2
  10	Guide slot	YF-055-34110	1
  11	Earthing busbar	YF-055-44153	1	Customer supplied
  12	Shaft sleeve	YF-055-44179	2
  13	Copper sleeve	YF-055-44180	2
  14	Pin	YF-055-44181	2
  15	Pin	YF-055-44182	2
  16	Connecting rod	YF-055-44183	2
  17	Pin	YF-055-44184	2
  18	Lock plate	YF-055-44185	1
  19	Connecting rod	YF-055-44186	1
  20	Sleeve	YF-055-44187	1
  21	Sleeve	YF-055-44188	1
  22	Washer	YF-055-44189	2
